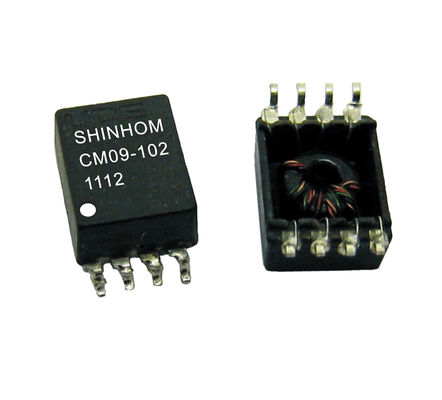

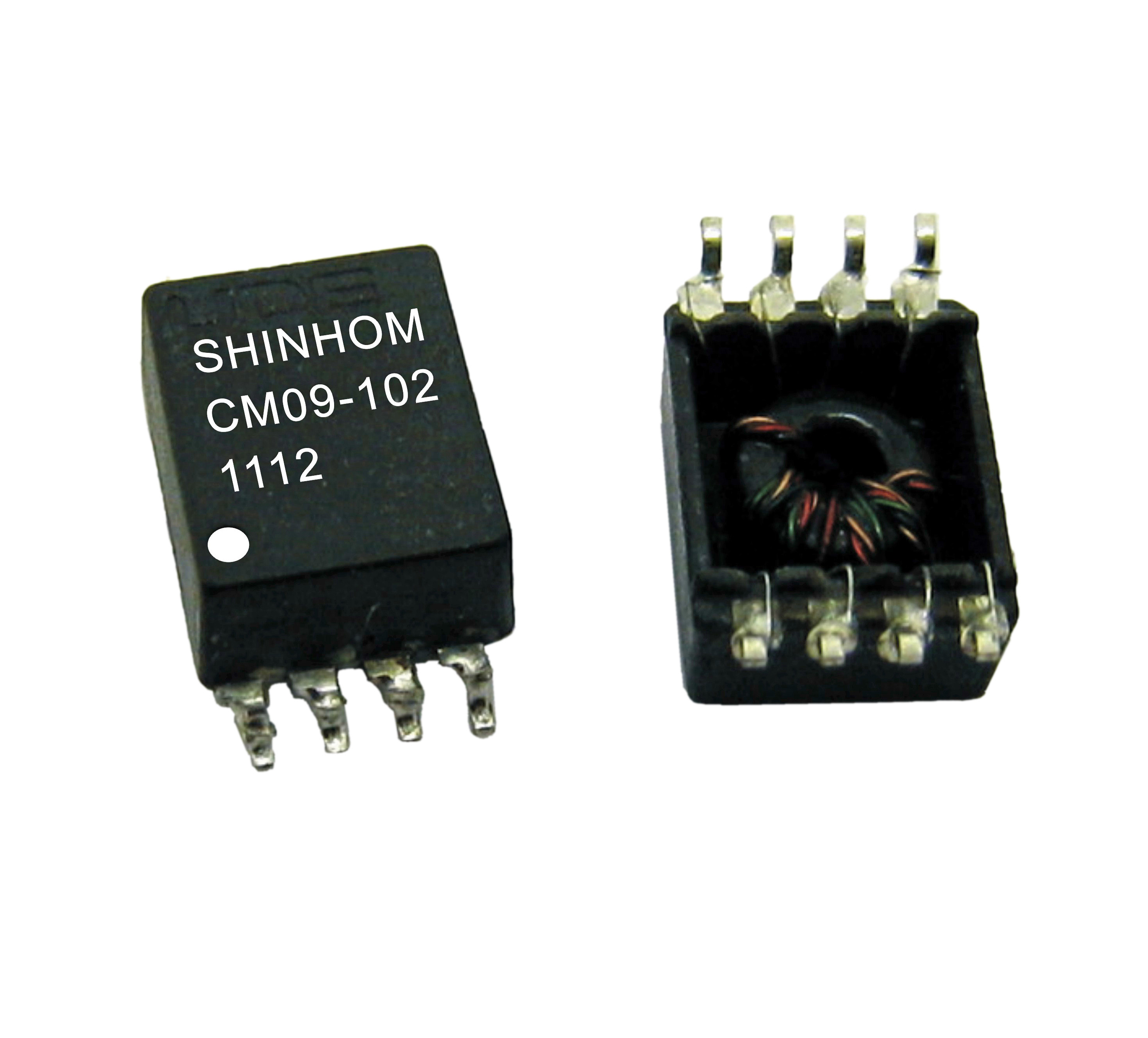

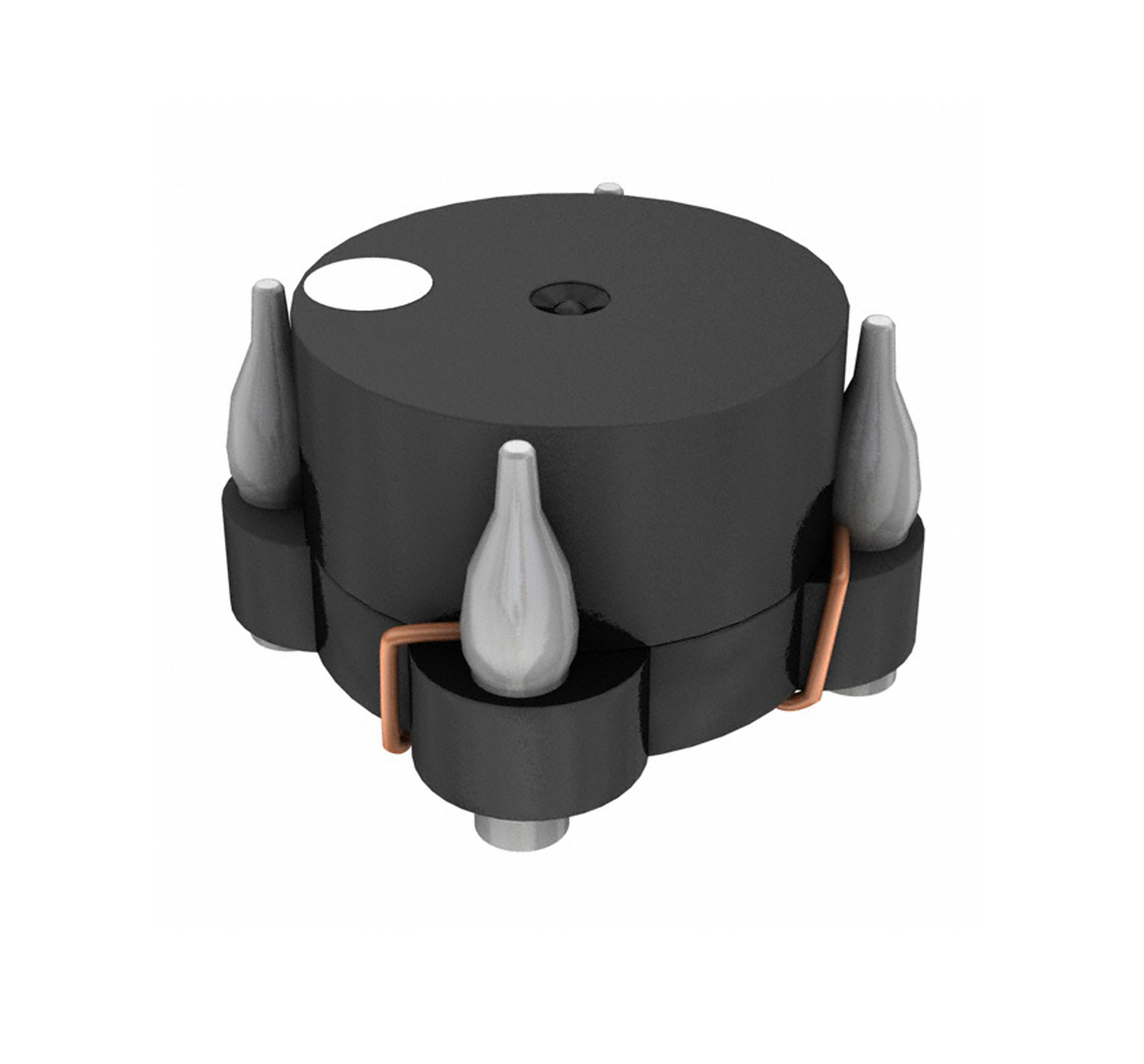

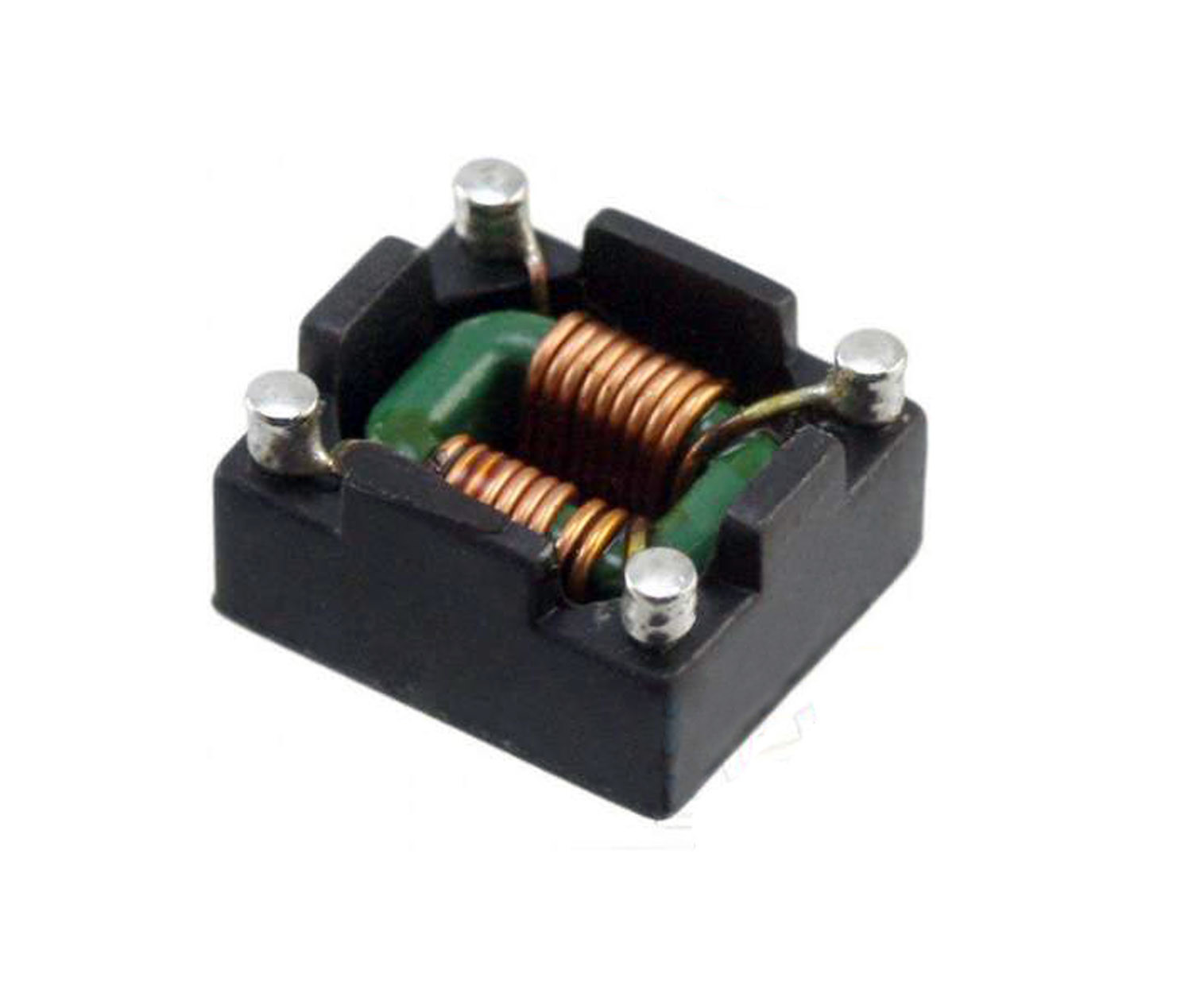

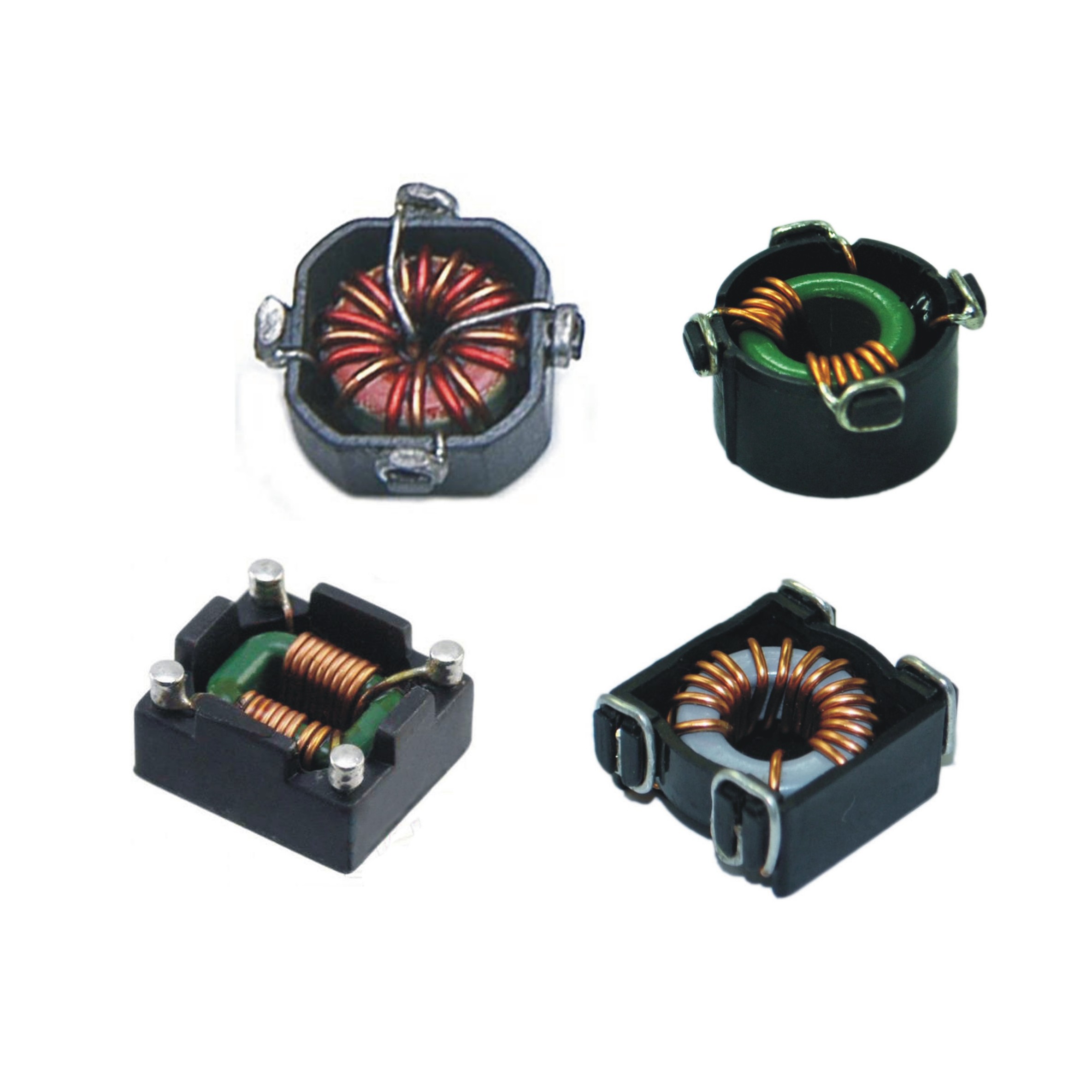

100MHz SMD Choke Coil Inductor For DC Switching Controllers

Name: 100MHz SMD Choke Coil Inductor For DC Switching Controllers
Brand: Shinhom
SKU: CM02 Series
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (163 reviews)

Large Image : 100MHz SMD Choke Coil Inductor For DC Switching Controllers Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	CM02 Series

Payment & Shipping Terms:

Minimum Order Quantity:	5000PCS
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Test Frequency:	100MHz	Installation:	SMT
Impedance:	500Ω To 1000Ω	Application:	Switching Power Supplies And Solarinverters
Operating Temperature:	-40℃ To +105℃	Storage Temperature:	-40℃ To +105℃
High Light:	SMD Choke Coil Inductor , 100MHz Choke Coil Inductor , DC Switching Controllers Common Mode Choke

SMD Common Mode Choke , Common Mode Inductor

The common-mode (CM) choke, where two coils are wound on a single core, is useful for suppression of electromagnetic interference (EMI) and radio frequency interference (RFI) from power supply lines and for prevention of malfunctioning of power electronics device. It passes differential currents (equal but opposite), while blocking common-mode currents.The magnetic flux produced by differential-mode (DM) currents in the core tend to cancel each other out since the windings are negative coupled. Thus, the choke presents little inductance or impedance to DM currents. Normally this also means that the core will not saturate for large DM currents and the maximum current rating is instead determined by the heating effect of the winding resistance. The CM currents, however, see a high impedance because of the combined inductance of the positive coupled windings.

CM chokes are commonly used in industrial, electrical and telecommunications applications to remove or decrease noise and related electromagnetic interference.

item	value
Model Number	CM02-102
Type	Common mode choke
Application	DC/DC switching controllers
Operating Temperature	-40°C~125°C
Package Type	SMD/SMT
Resistance	1000Ω
Inductance	11uH
Mounting Type	SMD/SMT
Package / Case	SMD Ferrite core construction
Size / Dimension	9.58.35.3mm
Shielding	Magnetically shielded.
Material - Core	Ferrite core construction.
