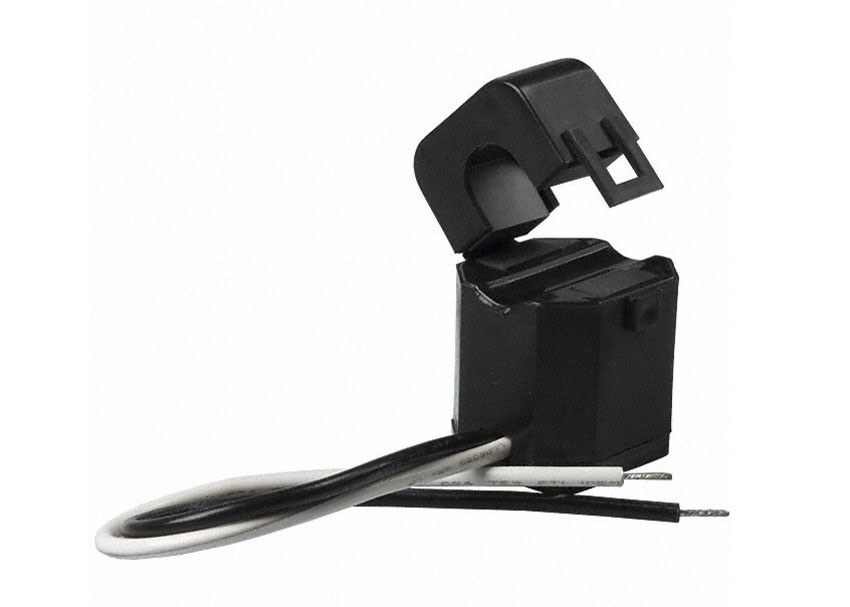

1000Hz Permalloy Split Core Current Transformer With Plastic Case

Name: 1000Hz Permalloy Split Core Current Transformer With Plastic Case
Brand: Shinhom
SKU: SCTK Series
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (193 reviews)

Large Image : 1000Hz Permalloy Split Core Current Transformer With Plastic Case Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	SCTK Series

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	10000/MONTH

Contact Now

Detailed Product Description

Operating Frequency:	50 To 1000Hz	Windows:	13X13mm
Class:	1.0	Case:	Plastic
Customizable:	Yes	Coil:	Permalloy Core
High Light:	Permalloy Split Core Current Transformer , 1000Hz Split Core Current Transformer , Plastic Case Split Core Transformer

Split Core Current Transformer , Current Transformer , CT, High Accuracy Current Sensor

The split core style current transformers are designed for fast and easy installation. The split core design permits non-contact current measurements through magnetic field induction without disconnecting cables circuits for CT installation. This method permits a safer, easier and portable current measurement.

Features:

Split core design, safe, easy to install, portable
Wide inner window, allowing clamping of big cables or bus-bars
Test hole series size clamp leaker AC current transformer
Split core current transformer with interleaved joint and hinge structure

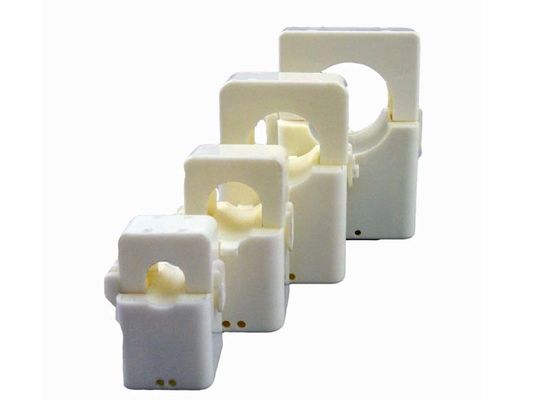

Wide range of sizes to accommodate all the existing installations

Applications:

Electrical lines and equipment of current measurement, control and protection
Measures AC current flow to electric motors, lighting, air condition equipment, etc
Compatible with HVAC temperature control, power management, building automation system

Electrical Parameter		Mechanical Parameter
Frequency	50-1KHz	Case	PA/UL94-V0
Rated Input	5A-200A	Bobbin	PBT
Measuring range	10%In-120%In	Core	Silicon steel
Rated Output	0.333V(AC)or 0-500mA	Internal structure	Epoxy
Ratio	≤ ± 1.0%	Construction	Tie
Phase angle	≤ ±60min	Operation Temp	-25℃~+75℃
Dielectric strangth	2.5KV/1mA/1min	Operating Humidity	≤85%
Insulation Resistance	DC500V/100MΩ min	Output Connection	UL1015 20AWG Wire2.5m
