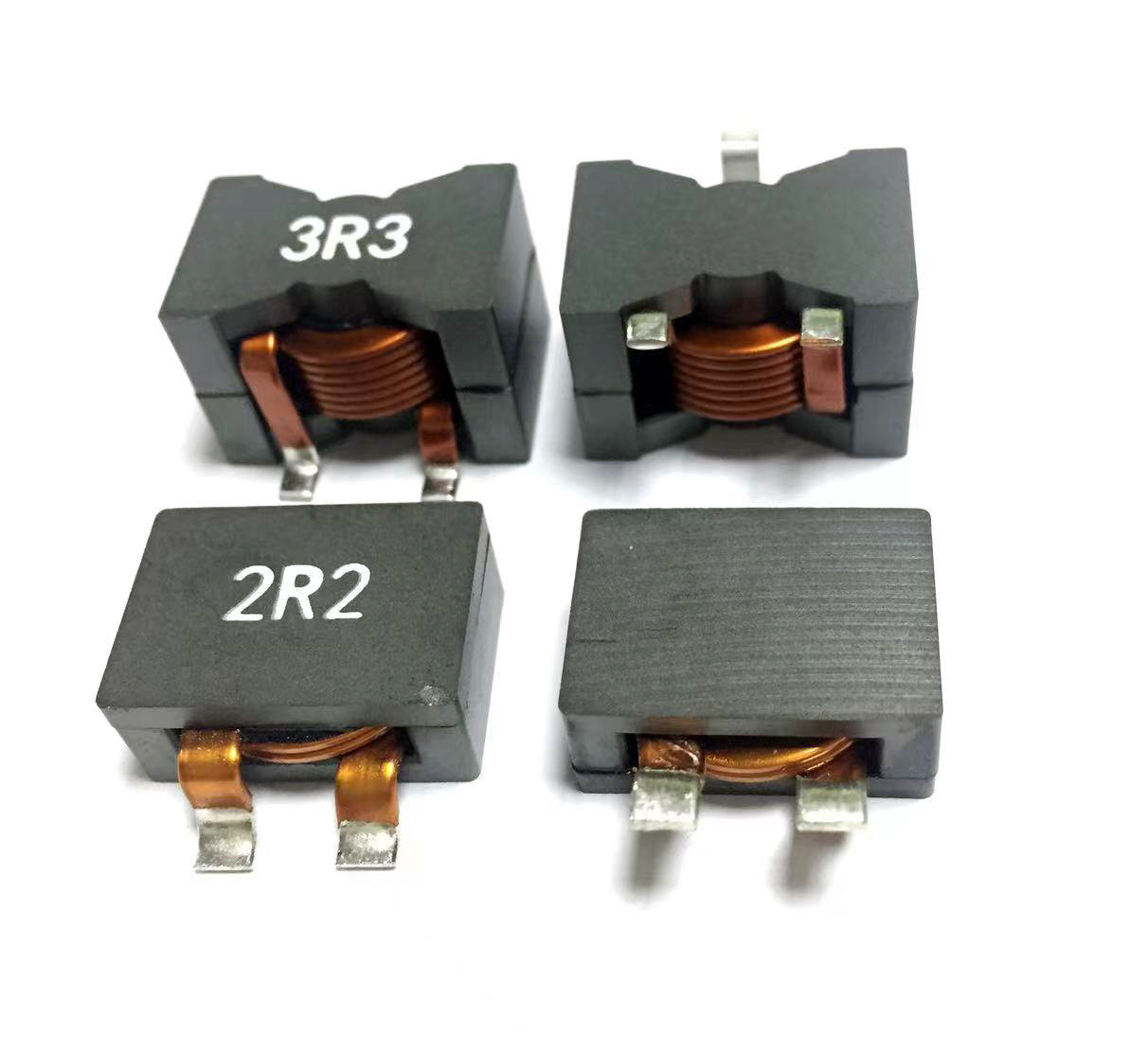

8.6uH Dip Shielded High Current Inductor With RoHS

Name: 8.6uH Dip Shielded High Current Inductor With RoHS
Brand: Shinhom
SKU: LPQ series
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (169 reviews)

Large Image : 8.6uH Dip Shielded High Current Inductor With RoHS Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	LPQ series

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Inductance Range:	8.6uH To 33uH	Tolerance:	±10%,±20%
Test Frequency:	100KHz,1V	Current:	Up To 100A
Wire:	Flat Copper Wire	Operating Temperature:	-25℃ - +125℃
High Light:	8.6uH Flat Wire Inductors , Dip shielded power inductors , Shielded Surface Mount Inductor

LPQ Series Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability,Dip inductor

ELECTRICAL SPECIFICATIONS:

All test data is referenced to 25℃ ambient.
Test conditon: 100KHz,1V
Irms:DC current(A) that will cause an approximate△T of 40℃.
Isat:DC current(A) that will cause Lo to drop approximate 30%.
Operating temperature range is -40℃ to 105℃.
Storage temperature range is -40℃ to 105℃.

FEATURES:

Assemblage design,sturdy srtucture
High inductance,high current,low magnetic loss,low ERS,small parasitic capacitance
Flat wire winding,achieve a low DCR
Temperature rise current and saturation current is less influenced by environment

APPLCATIONS:
