25uH 40A High Current Power Inductor With Flat Wire

Name: 25uH 40A High Current Power Inductor With Flat Wire
Brand: Shinhom
SKU: pq3222
Price: 1.00 USD
Availability: InStock
Rating: 4.7 (160 reviews)

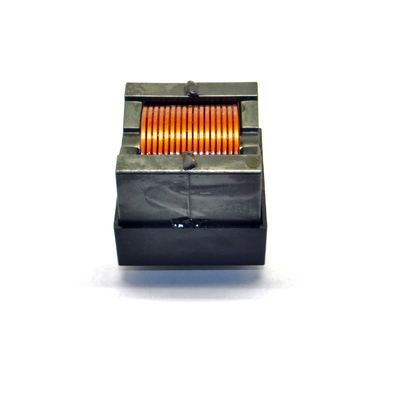

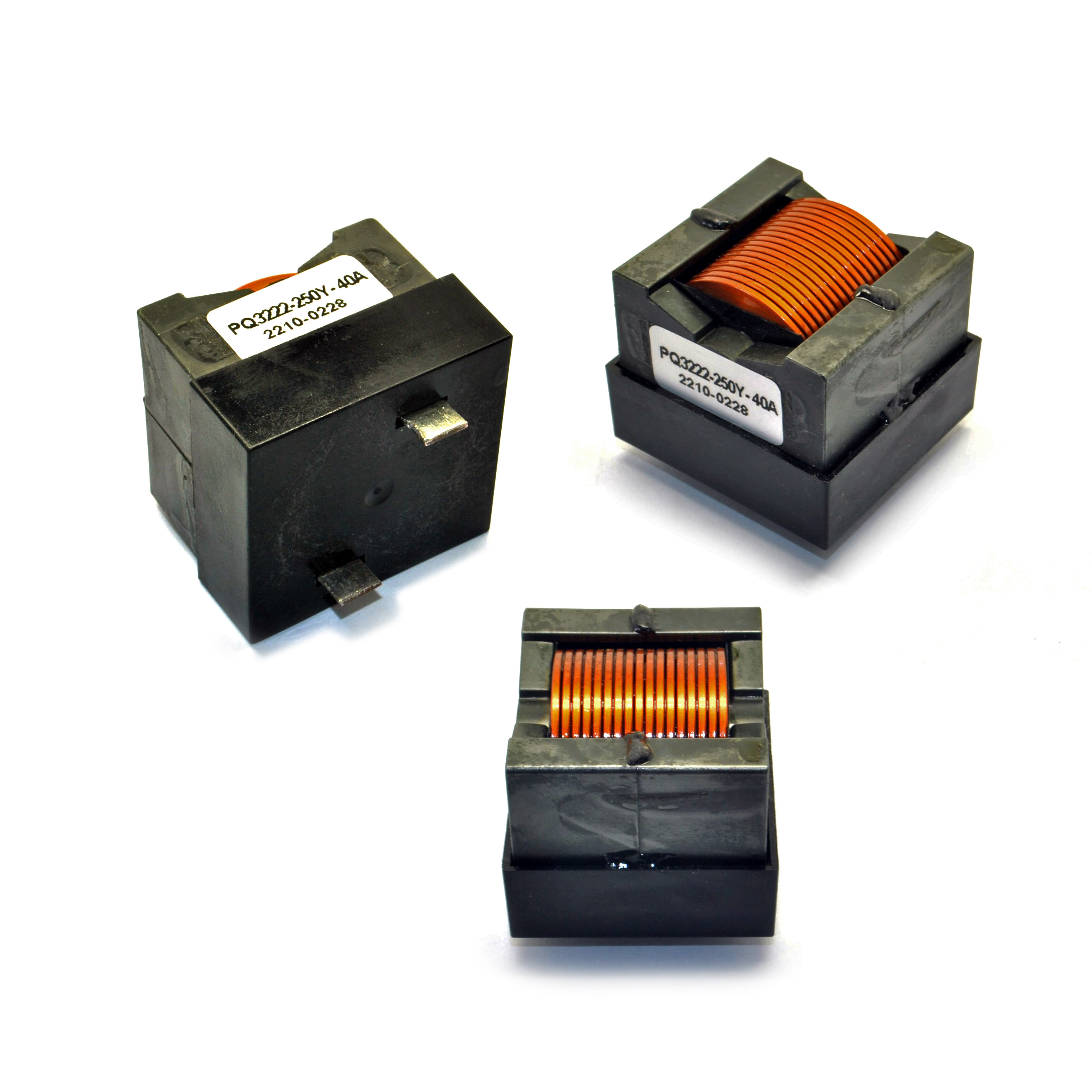

Large Image : 25uH 40A High Current Power Inductor With Flat Wire Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	pq3222

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Inductance Range:	25uH	Tolerance:	±10%
Test Frequency:	1.0KHz,0.1V	Current:	Up To 40A
Wire:	Flat Copper Wire	Operating Temperature:	-25℃ - +125℃
High Light:	25uH High Current Inductor , 40A High Frequency Inductor , High Power Inductors With Flat Wire

PQ3222 Series Flat Wire Low DCR High Current Power Inductors Excellent Thermal Stability,Dip inductor

ELECTRICAL SPECIFICATIONS:

Inductance range: 25uH
Super Larg Current up to 0A
All test data is referenced to 25℃ ambient.
Test conditon: 1KHz,0.1V
Irms:DC current(A) that will cause an approximate△T of 40℃.
Isat:DC current(A) that will cause Lo to drop approximate 20%.
Operating temperature range is 40℃ to 105℃.
The part temperature(ambient and temp rise)should not exceed105℃ under worse case operating conditions. Circuit design,component placement, PWB trace size and thickness, airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the endapplication.

Application:

power inductors are ideal for automotive applications and other high-temperature environments

FEATURES:

Flat wire windings provide extremely low DC and AC resistance.
Magnetic shielding to minimize EMI
Through-hole (TH) mounting for rugged board attachment
Assemblage design,sturdy srtucture
High inductance,high current,low magnetic loss,low ERS,small parasitic capacitance
Flat wire winding,achieve a low DCR
Temperature rise current and saturation current is less influenced by environment

25uH 40A High Current Power Inductor With Flat Wire 0
