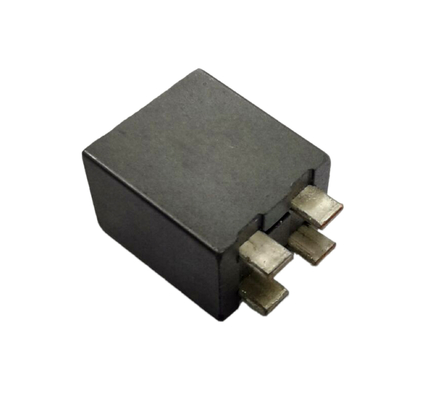

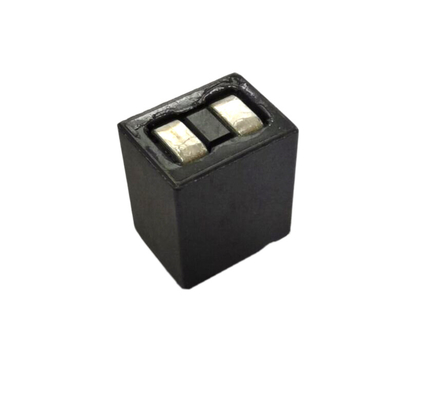

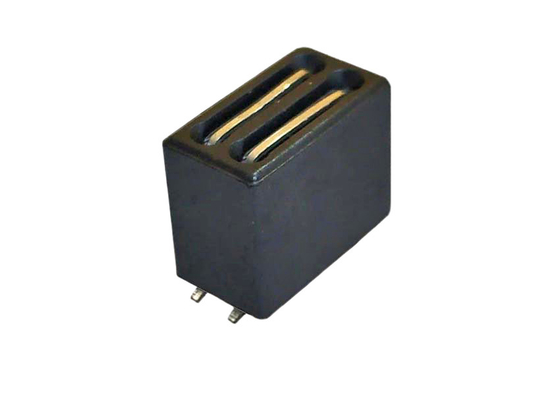

EMI Suppression Ferrite Bead High Current For Noise Filtering Devices

EMI Suppression Ferrite Bead High Current For Noise Filtering Devices
EMI Suppression Ferrite Bead High Current For Noise Filtering Devices EMI Suppression Ferrite Bead High Current For Noise Filtering Devices EMI Suppression Ferrite Bead High Current For Noise Filtering Devices EMI Suppression Ferrite Bead High Current For Noise Filtering Devices

Large Image :  EMI Suppression Ferrite Bead High Current For Noise Filtering Devices Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: FMB141015
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Size: 13.7*10.4*15.2mm Impedance@100MHz: 120Ω Min
Resistance: 0.3mΩ Rated Current: 75A
Operating Temperature: -25℃ To +85℃ Type: EMI Suppression Ferrite Bead
High Light:

High Current Inductor Bead

,

Ferrite EMI Suppression Beads

,

Noise Filtering Devices Ferrite Bead

Ferrite Bead Inductors, Available in Various Types, for EMI Suppression



Electrical specification:

  • Impedance: 120Ω Min@100MHz
  • DCR: 0.3mΩ Max
  • Max. Current: 75.0A
  • Operating temperature: -25℃ to +85℃



Features:

  • Wire wound beads with high frequency and EMI suppression
  • Low DCR and high current
  • Through-hole axial ferrite beads for EMI suppression
  • Through-hole ferrite beads in regged construction
  • Through-hole ferrite beads catering for the measurement of FCC, VDE



Application:

  • Noise filtering devices
  • Amplifiers
  • Switching regulations
  • Power supplies Triac control circuits
  • SCR control circuits Modems, PDP, LCD, TVs converters
  • Mobile radios, DC/DC converters
  • Cordless telephones and car radios GPS devices
  • Wireless communication equipment
  • Networking system, xDSL filters
  • Shielding signal noise suppression and transient frequency damping for VGA cards, PC boards, TV games, and more

Notes:

  • Ambient temperature: 80 degrees Celsius
  • Rated temperature range: -20 to +100 degrees Celsius
  • Dielectric withstanding voltage: 250V rms
  • Rated current: Based on temperature rise Terminal tensile strength: 10kg (minimum)
  • Terminal bending strength: 0.3kg (minimum )
  • Moisture resistance characteristics: N LL ±5%, N Q/Q ±20%






For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.
