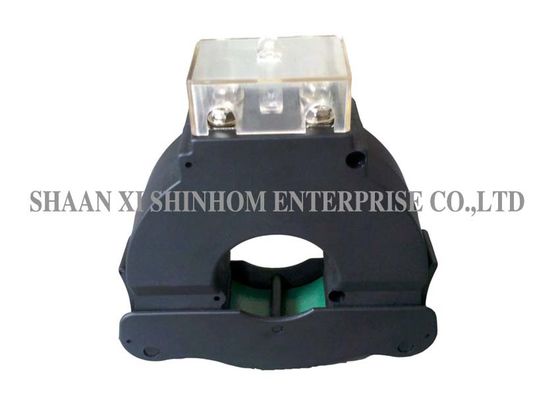

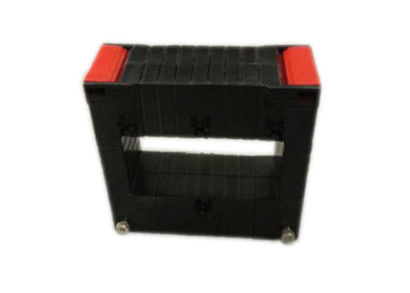

Micro Split Core Current Transformer , Toroidal Current Transformer Retro Fit

China Micro Split Core Current Transformer , Toroidal Current Transformer Retro Fit supplier
Micro Split Core Current Transformer , Toroidal Current Transformer Retro Fit supplier Micro Split Core Current Transformer , Toroidal Current Transformer Retro Fit supplier Micro Split Core Current Transformer , Toroidal Current Transformer Retro Fit supplier Micro Split Core Current Transformer , Toroidal Current Transformer Retro Fit supplier

Large Image :  Micro Split Core Current Transformer , Toroidal Current Transformer Retro Fit

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK667A Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Current Range: 100~1000A Output: 5A / 1A
Coil Structure: Toroidal Measuring Range: 5%In-130%In
Frequency: 50-400Hz Customizable: Yes

SCTK667A Series Split Core 100 to 1000A input CT, Current Transformers,Current sensor​



        SCTK667A series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs. Mainly used in

  • Current, power and energy monitoring device.
  • Current measurement, monitoring and protection for electrical wiring and equipment.
  • Relay protection device.
  • Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation – control system.



Features:

  1. Input: 100 to 1000A
  2. Output of 1A or 5A
  3. Split core current transformer with interleaved joint and hinge structure
  4. Wide inner window, allowing clamping of big cables or bus-bars
  5. Test hole series size clamp leaker AC current transformer
  6. Wide range of sizes to accommodate all the existing installations

 Electrical Parameter

Frequency 50-400Hz
Rated Input 100A-1000A
Measuring range 5%In-130%In
Rated Output 5A/1A
Ratio ≤ ± 0.5%
Phase angle ≤ ±30min
Dielectric strength 2.5KV/1mA/1min
Insulation Resistance DC500V/100MΩmi


Mechanical Parameter

Case PA /UL94-V0
Bobbin PA
Core Silicon steel
Internal structure Epoxy
Construction Tie
Operating Temp -25℃~+75℃
Operating Humidity ≤85%
Output Connection Terminal



Type selection

Input/Output Burden(VA)/Class Input/Output Burden(VA)/Class
(A) 0.5 1.0 3.0 (A) 0.5 1.0 3.0
100/5 1.5 2.5 3.75 100/1 1.5 2.5 3.75
150/5 1.5 2.5 3.75 150/1 1.5 2.5 3.75
200/5 1.5 2.5 5 200/1 1.5 2.5 5
250/5 1.5 2.5 5 250/1 1.5 2.5 5
300/5 2.5 2.5 5 300/1 1.5 2.5 5
400/5 2.5 3.75 5 400/1 2.5 3.75 5
500/5 2.5 3.75 5 500/1 2.5 3.75 5
600/5 2.5 3.75 5 600/1 2.5 3.75 5
800/5 5 10 15 800/1 5 10 15
1000/5 5 10 15 1000/1 5 10 15



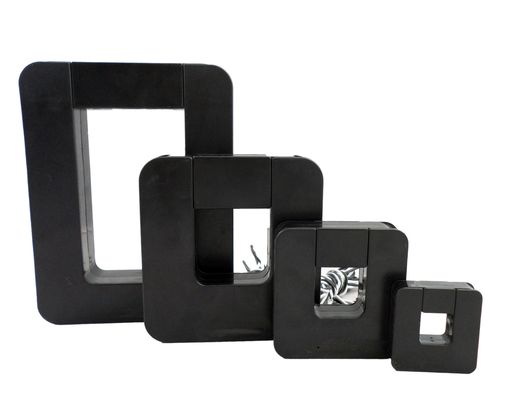

Micro Split Core Current Transformer , Toroidal Current Transformer Retro Fit



Notes: Product specifications can be customized
