Electrical Split Core Current Transformer , Zero Phase Current Transformer

I'm Online Chat Now
Certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

Electrical Split Core Current Transformer , Zero Phase Current Transformer

Electrical Split Core Current Transformer , Zero Phase Current Transformer

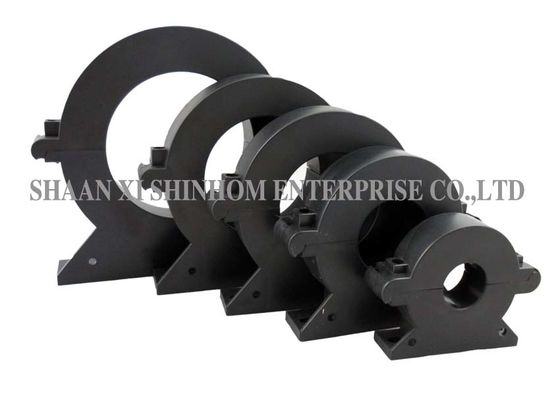

Electrical Split Core Current Transformer , Zero Phase Current Transformer Electrical Split Core Current Transformer , Zero Phase Current Transformer Electrical Split Core Current Transformer , Zero Phase Current Transformer Electrical Split Core Current Transformer , Zero Phase Current Transformer

Large Image :  Electrical Split Core Current Transformer , Zero Phase Current Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK671 Series
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Detailed Product Description
Current Range: 5~3000A Output: 0-10V Or 0-5A
Accuracy: 0.2、0.5、1.0 Coil Structure: Toroidal
Coil Number: Autotransformer Customizable: Yes
High Light:

split core ct

,

split core type current transformer

SCTK671 Series Split Core Current Transformer with 5A to 3000A input and zero-phase current transformers​, High Accuracy

  • SCTK671 series current transformer has been specially designed to facilitate their installation in new or already existing net works.
  • They may be installed without opening any cable or bus-bar circuit.
  • An internal precision resistor across the secondary winding of the CT provides a low safe voltage output.


Features:

  1. Split core CT current transformer
  2. Test range: 5 to 3000A AC input, output of 0-10V(AC) or 0-5A
  3. Using epoxy resin filling and good seismic performance
  4. Use punched way, easy to install
  5. Using high permeability material, wide measurement range
  6. Small volume, beautiful appearance generous, flexible use
  7. It can save time and the installation costs

Applications:

  1. Electrical fire monitoring
  2. Leakage fire prevention system
  3. Electromagnetic relay protection
  4. Microcomputer protection and so on.

 Electrical Parameter

Frequency50-400Hz
Rated Input5A-3000A
Measuring range5%In-130%In
Rated Output0-10V(AC) or 0-5A
Ratio≤ ± 0.2%
Phase angle≤ ±10min
Dielectric strength2.5KV/1mA/1min
Insulation ResistanceDC500V/100MΩmin


Mechanical Parameter

CasePC /UL94-V0
BobbinPBT
CoreSilicon steel
Internal structureEpoxy
ConstructionTie
Operating Temp-25℃~+75℃
Operating Humidity≤85%
Output ConnectionUL101522AWGWire(twinstedwire)2.5m



Type selection

P/N

Rated Input

(A)

Output (mA/V)AccuracyDimensions(mm)
    ØABCDEFGHØ1Ø2
SCTK671A-025

5-400A

(5,100,400A)

0-200mA

0-10V

0.2,0.5,1.0

25807522567353211755
SCTK671A-045

50-1000A

(50,400,1000A)

0-500mA

0-10V

0.2,0.5,1.045108107267110074241355
SCTK671A-065

100-1500A

(100,1000,1500A)

0-500mA

0-10V

0.2,0.5,1.065128127269112094271755
SCTK671A-080

500-2000A

(500,1500,2000A)

0-500mA

0-10V

0.2,0.5,1.0801441442897134104271755
SCTK671A-100

800-3000A

(800,2500,3000A)

0-600mA

0-10V

0.2,0.5,1.010017417430126162120271755




Electrical Split Core Current Transformer , Zero Phase Current Transformer 0
Notes: Product specifications can be customized

Contact Details
Shaanxi Shinhom Enterprise Co.,Ltd

Contact Person: admin

Tel: +8618991816309

Send your inquiry directly to us
