Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing

Certification
Good quality Current Sense Transformer for sales
Good quality Current Sense Transformer for sales
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

I'm Online Chat Now

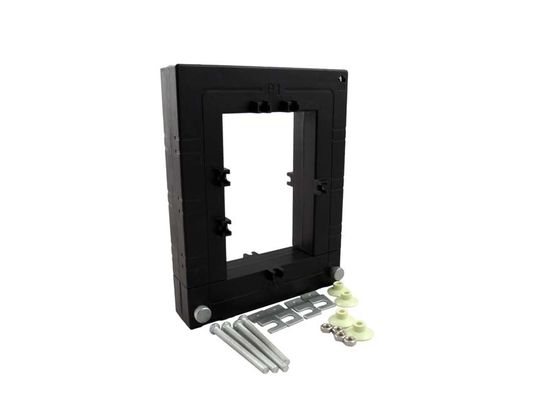

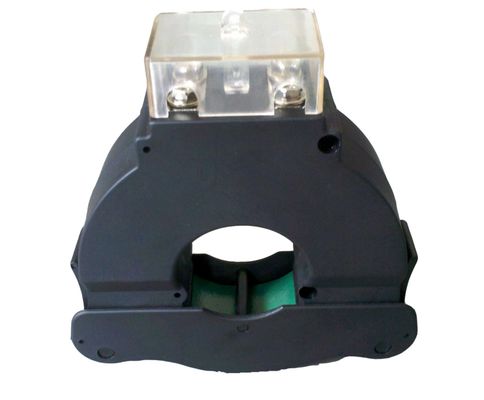

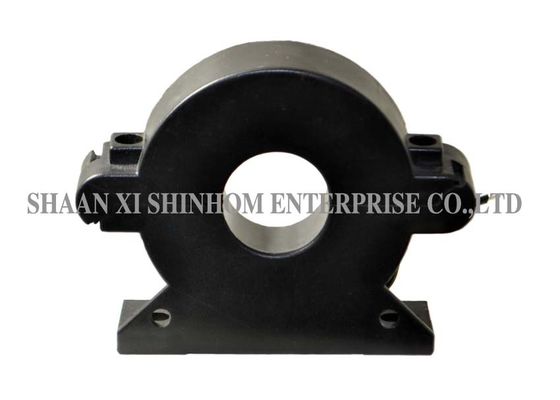

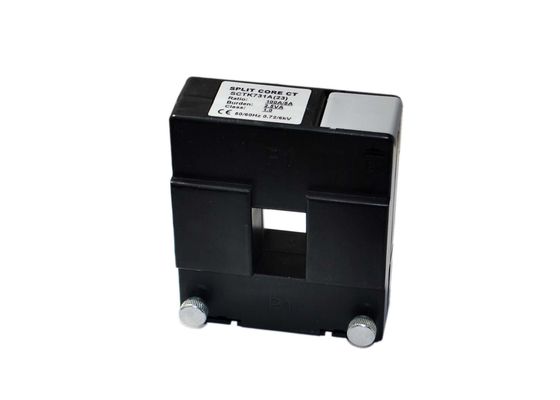

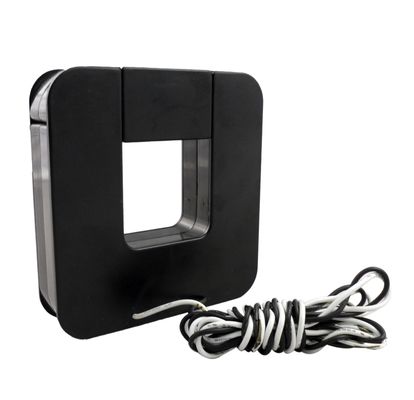

Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing

China Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing supplier
Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing supplier Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing supplier Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing supplier Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing supplier Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing supplier

Large Image :  Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SCTK673 Series

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Current Range: 5~1000A Output: 0-10Vac Or 0-5A
Accuracy: 0.2、0.5、1.0 Frequency: 50-400Hz
Coil Structure: Toroidal Customizable: Yes

SCTK673 Series Split Core Current Transformer with Epoxy Encapsulated Housing and 5~1000A input,Class 0.2,0.5,1.0



       SCTK673 series retro-fit (split-core) current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.


Features:

  1. Split core current transformer with interleaved joint and hinge structure
  2. Wide range of sizes to accommodate all the existing installations
  3. Split core CT current transformer
  4. Epoxy Potting, Double-screw fastening
  5. Wide inner window, allowing clamping of big cables or bus-bars
  6. Test range: 5 to 1000A AC input, output of 0-10V(AC) or 0-5A
  7. High accuracy and reliability
  8. Test hole series size clamp leaker AC current transformer
  9. Inherit the simple structure of the traditional C cores
  10. Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance.
  11. Energy conservation & environment protection, huge potential market



Applications:

  1. Current, power and energy monitoring device.
  2. Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation – control system.
  3. Relay protection device.
  4. Current measurement, monitoring and protection for electrical wiring and equipment



Electrical Parameter

Frequency 50-400Hz
Rated Input 5A-1000A
Measuring range 5%In-130%In
Rated Output 0-10V(AC) or 0-5A
Ratio ≤ ± 0.2%
Phase angle ≤ ±10min
Dielectric strength 2.5KV/1mA/1min
Insulation Resistance DC500V/100MΩmin



Mechanical Parameter

Case PC /UL94-V0
Bobbin PBT
Core Silicon steel
Internal structure Epoxy
Construction Tie
Operating Humidity ≤85%
Operating Temp -25℃~+75℃
Output Connection UL101522AWGWire(twinstedwire)2.5m


Type selection



P/N

Rated Input

(A)

Output (mA/V) Accuracy Dimensions(mm)
        Ø A B C D E F G Ø1 Ø2
SCTK673A-025

5-400A

(5,100,250,400A)

0-200mA

0-10V

0.2

0.5

1.0

25 100 100 42 60 87 72 22 16 5
SCTK673B-045

50-1000A

(50,250,400,1000A)

0-500mA

0-10V

0.2

0.5

1.0

45 123 123 42 80 109 94 23 16 5



Black Split Core Current Transformer Toroidal Epoxy Encapsulated Housing

Notes: Product specifications can be customized
