Supply Voltage: ±12V ~ ±15V (±5%) Rated Input: 100A,125A,200A
Rated Output: 100mA±0.5%, 125mA±0.5% Theory: Current Sensor
IP Rating: IP65 Linearity: ≤±0.2%FS

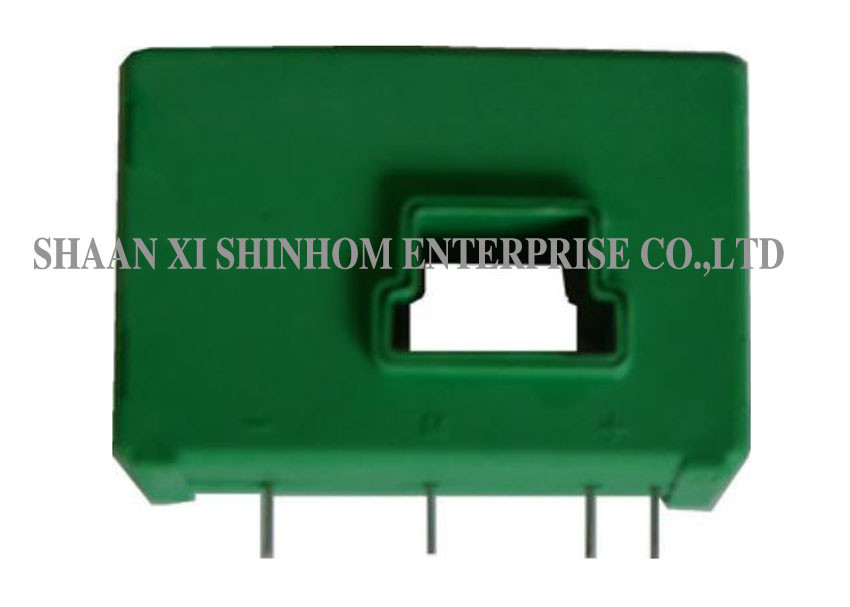

HBC-LAP Series Brand New and Original Hall Effect Current Sensor Current Transducer with 0 to 200A Operating Current



           HBC-LAP Series current sensor with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.



1. Is is positive when Ip flows in the direction of the arrow.
2. Temperature of the primary conductor should not exceed 100 ℃.
3. Dynamic performance are test with a single bar completely filling the primary hole.
4. The primary turns round on the top of the sensor to perform best magnetic clutch.



Features:

  • Operating currents: 0 to 200A
  • Power supply: ±12V ~ ±15V (±5%)
  • Rated output current: 100mA±0.5%, 125mA±0.5%
  • Mount easily
  • High accuracy grade

Applications:

  • Power supplies for welding applications
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)
  • Static converters for DC motor drives

ELECTRICAL DATA:

  HBC100LAP HBC125LAP HBC200LAP
Rated Current(IPN) 100 125 200 A
Measure Range(IP) 0~±200 0~±200 0~±300 A
Rated Output Current(ISN) 100±0.5% 125±0.5% 100±0.5% mA
Supply Voltage(±5%) ±12~±15 V
Supply current loss 16(@±15V)+IS mA
Test resistance with±12V @±IPNmax 14(min) 52(max) 0(min) 26(max) Ω
  @±IPmax 14(min) 17(max) 0(min) 4(max) Ω
  with±15V @±IPNmax 40(min) 72(max) 0(min) 56(max) Ω
  @±IPmax @±300Amax 40(min) 40(max) 0(min) 8(max) Ω
Turns ratio 1:1000 1:1000 1:2000
Sec resistance 33 33 76 Ω
Offset current ≤±0.2 mA
Offset current Drift ≤±0.5 mA
Response Time <1 µs
Linearity ≤±0.2 %FS
Insulation voltage 50(60)HZ,1min,3 KV
di/dt >100 A/μs
Bandwidth(-3dB) DC…100 KHz
Operating Temperature -40~+85
Storage Temperature -40~+105

IP65 High Current Hall Effect Sensor Light Weight Good Mechanical Behavior

Notes: Product specifications can be customized
