High Precision Hall Effect Current Sensor For Frequency Control Device

China High Precision Hall Effect Current Sensor For Frequency Control Device supplier
High Precision Hall Effect Current Sensor For Frequency Control Device supplier High Precision Hall Effect Current Sensor For Frequency Control Device supplier High Precision Hall Effect Current Sensor For Frequency Control Device supplier High Precision Hall Effect Current Sensor For Frequency Control Device supplier

Large Image :  High Precision Hall Effect Current Sensor For Frequency Control Device

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HBV-LV

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Rated Input Current: 2.5mA Rated Input: 0 ~ 4000V
Turns Ratio: 20000:1000 Rated Output Current: 50mA±0.5%
Certification: CE,RoHS,ISO Insulation Voltage: 6KV,50HZ,1min

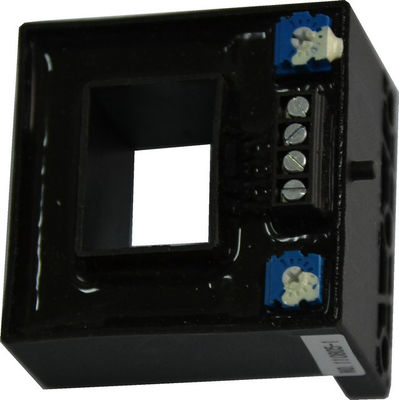

HBV-LV Series Hall Effect Current Sensor, High Accuracy Transducer with 0 to 125A Operating Current



             HBV-LV series current sensor is an open loop device based on the measuring principle of the Hall Effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC currents.



Features:

  • Rated input voltage: 0~4000V
  • Rated input vurrent:  2.5mA
  • Rated output current:   50mA±0.5%
  • High accuracy grade
  • Mount easily
  • Working (operating) temperature: -25 to +85°C
  • Certification: UL 94-V0
  • RoHS Directive-compliant



Applications:

  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)
  • Frequency control device
  • Inverter device
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Power supplies for welding applications



ELECTRICAL DATA:



HBV

100LV

HBV

200LV

HBV

300LV

HBV

500LV

HBV

1000LV

HBV

2000LV

HBV

3000LV

HBV

4000LV


Rated input voltage(VPN) 100 200 300 500 1000 2000 3000 4000 V
Test voltage range(VP) 200 400 600 1000 2000 4000 6000 6000 V
Input power consumption 0.25 0.5 0.75 1.25 2.5 5.0 7.5 10 W
Rated input vurrent(IP) 2.5 mA
Turns ratio(NP/NS) 20000:1000 T
Sec winding resistance 55 Ω
Rated output current @VP=±VPN 50±0.5% mA
Test resistance @±15V VPN 50(min) 200(max) Ω
  @±15V 2XVPN 0(min) 100(max) Ω
  @±24V VPN 100(min) 330(max) Ω
  @±24V 2XVPN 100(min) 200(max) Ω
Supply voltage ±15±5%~±24±5% V
Consumption current 20+ IPX( NP/NS ) mA
Offset current ≤±0.2 mA
Offset current Drift ≤±0.6 mA
Linearity ≤±0.25 %FS
Response time ≤200 μS
Insulation voltage(50HZ,1min) 6 KV
Operating Temperature -25~+85
Storage Temperature -40~+105
Gross weight 850 g





High Precision Hall Effect Current Sensor For Frequency Control Device

Notes: Product specifications can be customized
