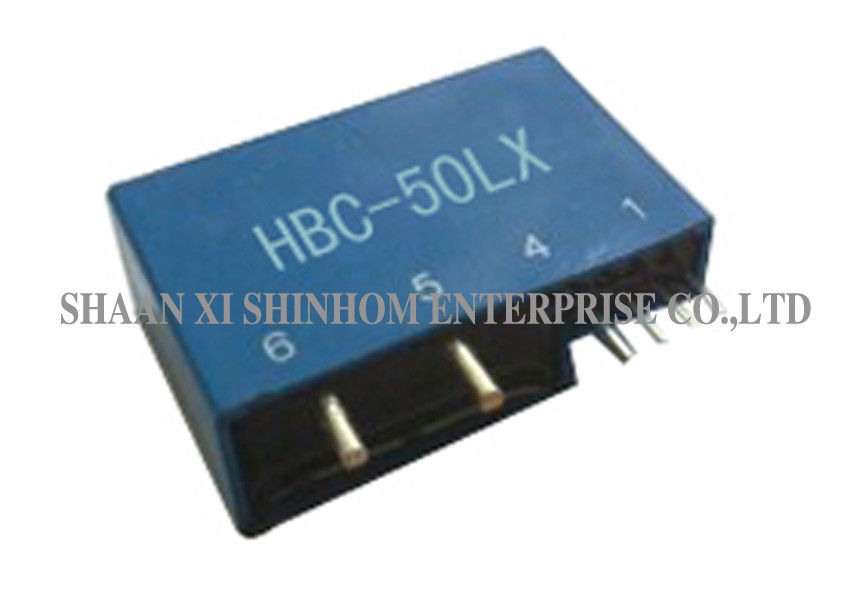

HBC-LX Series Current Transducer Hall Effect Sensor for Current Measurement with 0 to 75A Input



           HBC-LX Series current sensor with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.



Feature
* Closed- loop          * Supply voltage: DC +5.0V
* Capable measurement of currents: DC, AC,pulse with galvanic isolation between primary circuit and secondary circuit.



Advantages

* Easy installation            * Can be customized
* High accuracy            * Very good linearity
* Optimized response time, no insertion losses                * Low power consumption
* Low temperature drift               * High immunity to external interference


Applications
* Inverter applications               * AC/DC variable-speed drive
* Uninterruptible Power Supplies (UPS)                 * Switched Mode Power Supplies (SMPS)
* Photovoltaic (PV) current applications               * New Energy Combiner Box Measurement
* Wind Power Industry Current Detection              * Electric vehicle charging equipment current sensing
* Automible By-wire application                 * Household appliance frequency conversion
* Auto air conpressor application                  * Hybrid battery pack current sensing
* Automobile electrical power steering system application





ELECTRICAL DATA:

  HBC-05LX HBC-10LX HBC-15LX HBC-20LX
  HBC-25LX HBC-30LX HBC-50LX HBC-75LX
Rated input current 5 10 15 20 25 30 50 75 A
Test current range 10 20 30 40 50 60 100 150 A
Turns ratio 4:1000 3:1500 2:1500 2:2000 1:1250 1:1500 1:2500 1:3750
Rated output voltage 4±0.5% V
Supply voltage ±15±5% V
Zero offset current ≤±0.04 V
Consumption current ≤±18±20 mA
Linearity ≤±0.2 %FS
Response time <1 µs
Output Thermal drift <±0.02 %/℃
Zero Thermal drift ≤±1 mV/℃
Insulation voltage 50(60)HZ,1min, 2.5 KV
insulating strength >1000
Operating temperature -40~+85
Storage temperature -40~+105



Analog Output Hall Effect Current Sensor , Hall Effect Sensor Current Measurement 0



Notes: Product specifications can be customized
