Mount Easily Hall Effect Current Sensor ,10mA Hall Effect Current Transducer

China Mount Easily Hall Effect Current Sensor ,10mA Hall Effect Current Transducer supplier

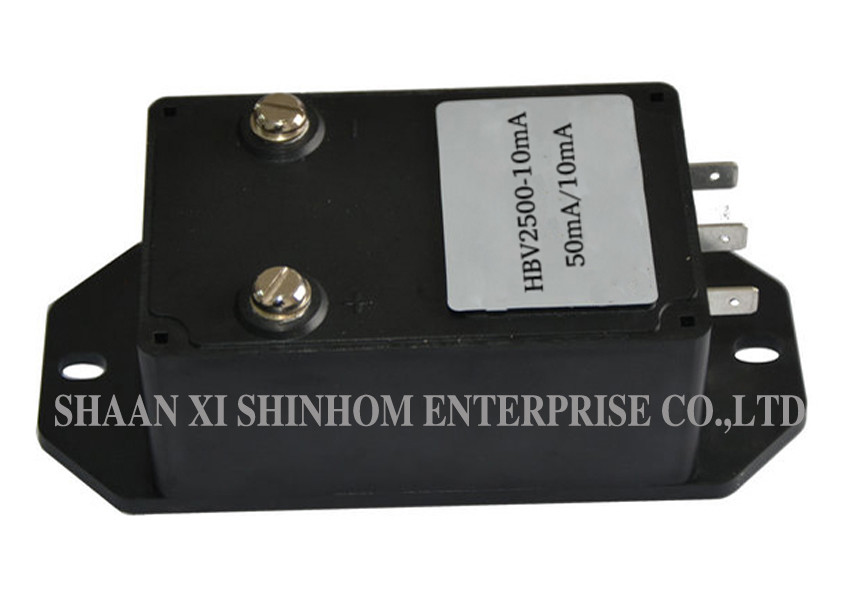

Large Image :  Mount Easily Hall Effect Current Sensor ,10mA Hall Effect Current Transducer

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HBV2500-10mA

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Supply Voltage: ±15V ±5% Rated Input: 10mA
Rated Output: 50mA ±0.5% Insulation Voltage: 6KV,50HZ,1min
Operating Temperature: -10~+80℃ Storage Temperature: -25~+85℃

HBV2500-10mA Hall Effect Current Sensor, Sense Transformer Transducer with 10mA Operating Current



            HBV2500-10mA current sensor with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.



Features:

  • Mount easily
  • High accuracy grade
  • Operating current: 10mA
  • Power supply:   ±15V ±5%
  • Rated output current:  50mA ±0.5%



Advantages

  • Easy installation
  • Can be customized
  • High accuracy
  • Very good linearity
  • Optimized response time, no insertion losses
  • Low power consumption
  • Low temperature drift * High immunity to external interference



Applications:

  • Uninterrupted power supplies (UPS)
  • Static converters for DC motor drives
  • Switched mode power supplies (SMPS)
  • Power supplies for welding applications
  • Battery supplied applications
  • AC variable speed drives and servo motor drives



ELECTRICAL DATA:

  HBV2500-10mA
Rated input current 10 mA
Test current range 0~±20 mA
Rated output current 50±0.5% mA
Supply voltage ±15±5% V
Static power ≤±15 mA
Offset current ≤±0.2 mA
Offset current Drift ≤±0.3 mA
Linearity ≤±0.25 %FS
Response time ≤40--200 μS
Bandwidth 20~10000 HZ
Insulation voltage 50HZ,1min,6 KV
Pri winding resistance 1500 Ω
Sec winding resistance 60 Ω
Operating Temperature -10~+80
Storage Temperature -25~+85



Mount Easily Hall Effect Current Sensor ,10mA Hall Effect Current Transducer



Notes: Product specifications can be customized
