Toroidal Current Sense Transformer , Rogowski Current Transducer IP67

China Toroidal Current Sense Transformer , Rogowski Current Transducer IP67 supplier
Toroidal Current Sense Transformer , Rogowski Current Transducer IP67 supplier Toroidal Current Sense Transformer , Rogowski Current Transducer IP67 supplier Toroidal Current Sense Transformer , Rogowski Current Transducer IP67 supplier Toroidal Current Sense Transformer , Rogowski Current Transducer IP67 supplier

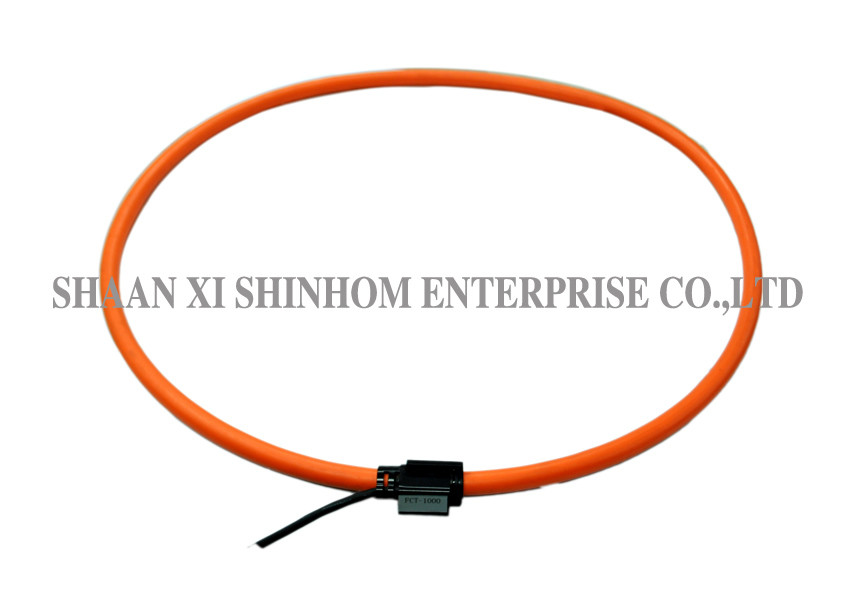

Large Image :  Toroidal Current Sense Transformer , Rogowski Current Transducer IP67

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: ZRC Series

Payment & Shipping Terms:

Minimum Order Quantity: 100PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 10000/MONTH
Contact Now
Detailed Product Description
Flexible Rogowski Coil Current Sensor: Ce ,RoHS Insulation: 3000V
IP Rating: IP67 Coil Structure: Toroidal
Usage: Current Customized: Customized

Flexible current transformer for 1A - 10000A measuring 40mV / 80mV / 100mV output when 1000A BNC clamp-on flexible rogow

       Clamp-on Flexible Rogowski coil Current Transformer is an AC current transducer for permanent installation.

They combine the benefits of a thin, flexible, clip-around Rogowski (sense) coil with a signal conditioner providing

accurate, true rms measurement, of voltage or current.



Features

High linearity from 1A to 100kA

Wide dynamic range

Very useful with large size or awkward shaped conductors or in places with limited access

No danger from open-circuited secondary

Not damaged by large overloads

Non-intrusive,no power drawn from the main

Measurement uniformity at any position of the conductor inside the coil

Excellent degree of rejection to the external current conductor



Applications

Measuring devices,lab instrumentation

Power monitoring&control systems

DC ripple measurement

Harmonics and transients monitoring

Power meter,Powe ranalyzer sensor



Specification



TRANSDUCER
Coil length: 210/350/420/510/600/800mm
Inner diameter: 60/103/125/155/180/245mm (±10%)
Coil cross section: 6.5±0.2 mm/8±0.2 mm/10±0.2 mm
Fastening: bayonetholder
Material: thermoplastic UL94-V0
Color: coil: black, red, yellow, blue (other color could be customized)
closing unit: black





CONNECTION CABLE
Type: cable (with 3-wire terminal)
  cable + BNC/O scilloscope Interface
Length: 3000 mm (standard), other length could be customized.
Material: Xy23/0.1 Ts/2C+A+B
Color: black orange





ELECTRICAL CHARACTERISTICS
Output level (RMS): 40mV/1000A @50Hz
  80mV/1000A @50Hz
  100mV/1000A @50Hz
Accuracy: class 1.0 (coil must be calibrated with amplifier/integrator load impedance)
Linearity (10% to 100% of range): ±0.1% of reading
Frequency range/Bandwidth: approx 10Hz to 10MHz
Phase shift: 90°
Conductor position sensitivity: ±2% Maximum
Influence of external field: ±2% Maximum





ENVIRONMENTAL CONDITIONS
Operating temperature: from -20℃ to +75℃
Storage temperature: from -30℃ to +75℃ (suggest normal temperature )





Safety
Working voltage(max): 1000Vrms CATIII
600Vrms CATIV
Hipot test 3000Vrms @50/60Hz 1min.





Dimension

Dimensions(mm) ZRC-210 ZRC-350 ZRC-420 ZRC-510 ZRC-600 ZRC-800
A Window size((mm)±10% 60mm 103mm 125mm 155mm 180mm 245mm
B Rogowski Coil O.D.(mm)±10% 73mm 120mm 141mm 171mm 201mm 266mm
C Rogowski Coil Diameter 6.5mm 8mm 8mm 8mm 10.5mm 10.5mm
D Wire Lead Diameter 4mm 4mm 4mm 4mm 4mm 4mm

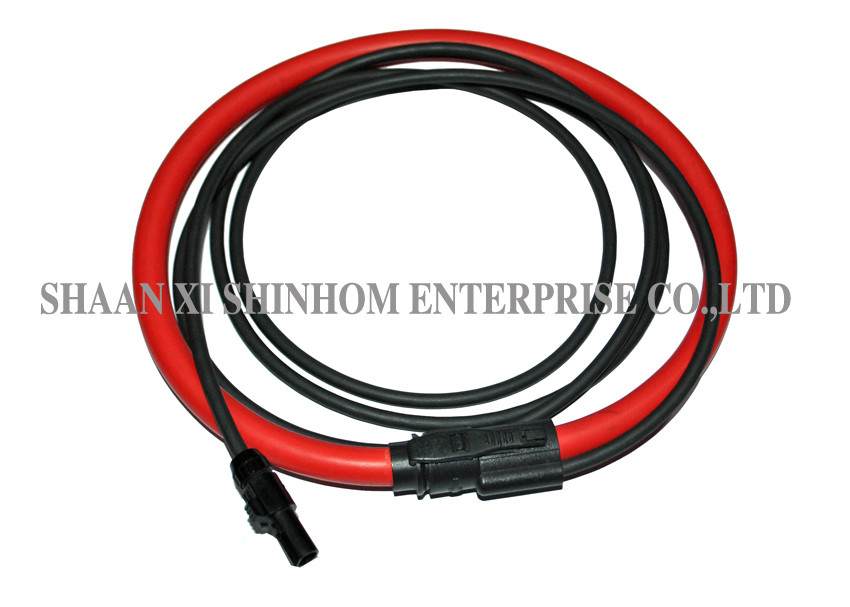

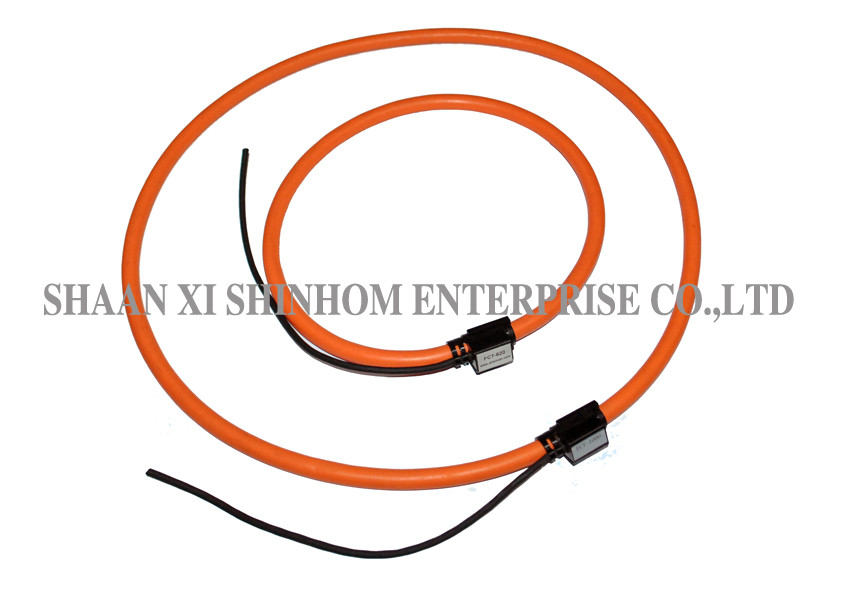

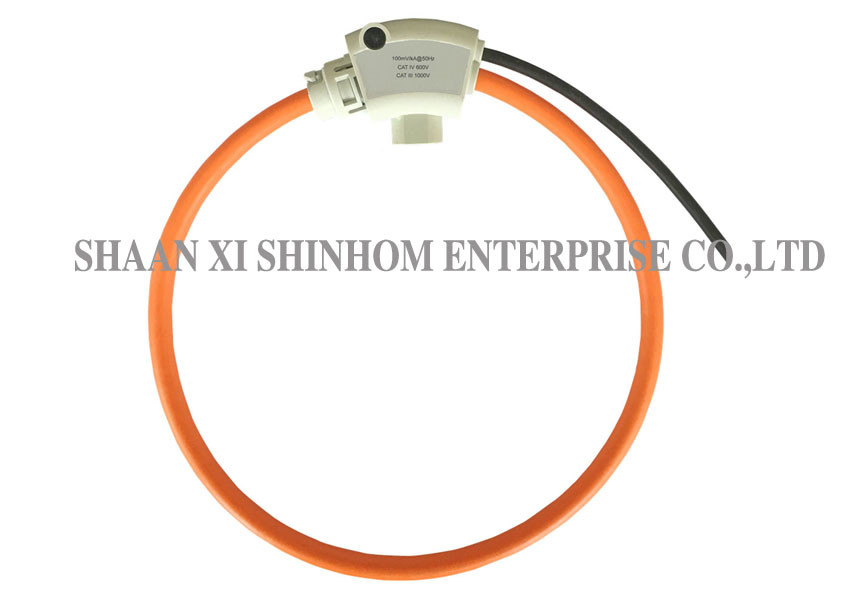

Toroidal Current Sense Transformer , Rogowski Current Transducer IP67









Here are a variety of specifications for you to choose from.
