High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm

China High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm supplier
High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm supplier High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm supplier High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm supplier High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm supplier High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm supplier

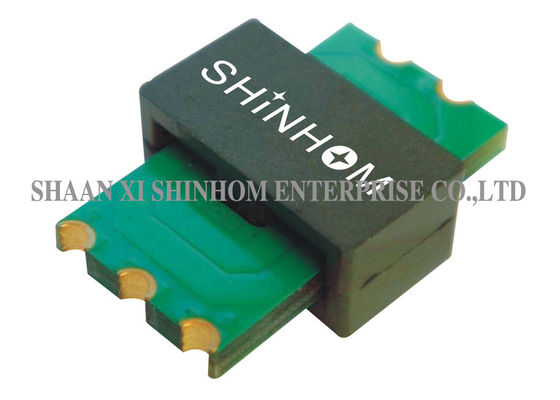

Large Image :  High Power Planar Transformer PCB Mounting 300 Watt 29.6mm × 25.40mm

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TP30

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Frequency: 200KHz ~ 700KHz Power: 300W
Pad Size: 29.6*25.4mm Thickness: 9.0mm / 10.0mm
Operation Temperature: -40℃ To +125℃ Isolation: 1800Vdc

TP30 Series High frequency 300W Planar Transformer,PCB Mounting Planar Transformer,Power transformers,High current coil





FEATURES:

  • Footprint 29.6 mm×25.40 mm
  • Lower Profile of 9.0 mm and 10 mm
  • Low-profile planar transformer
  • High-power planar transformer
  • High-frequency planar transformer
  • PCB planar transformer
  • Planar switching power transformer
  • Off the shelf SMT planar transformer
  • Power Rating Up to 300 Watts
  • High Efficiency of Over 98%
  • High Power Density of 600 Watts Per Cubic Inch
  • High Isolation (operational) 1800 Vdc
  • High Frequency 200 kHz-700 kHz
  • Operating Temperature -40℃ to +125℃
  • High Creepage and Clearance distances between primary and
  • Applicable to all SMPS topologies.



APPLICATIONS:

  • High performance DC/DC converters.
  • High efficiencies up to over 98 percent, high power density of 600 watts per cubic inch DC/DC converters.
  • For forward, full-bridge, half-bridge and push-pull DC/DC converters.
  • Input voltages between 18V and 75V, and output voltages from 52V down to 1.0V DC/DC converters.
  • Telecommunications, industrial control systems,
  • Automotive and heavy equipment vehicle systems



TECHNICAL INFORMATION:

  • The inductance is measured with both primary windings connected in series where applicable (type D: 2 to 5 with3 and 4 shorted, type S:2 to 4 only).
  • The leakage inductance is measured with both primary windings connected in series where applicable in all other winding shorted.
  • All specifications typical at TA=25℃.
