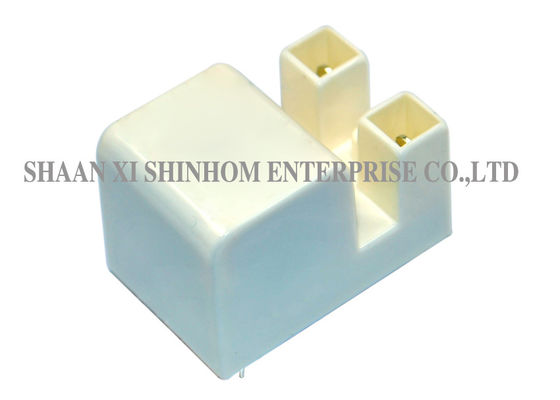

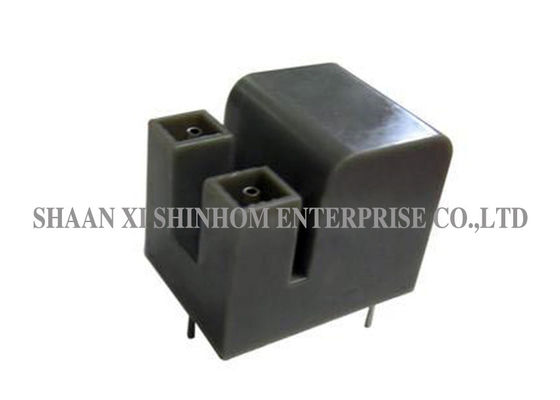

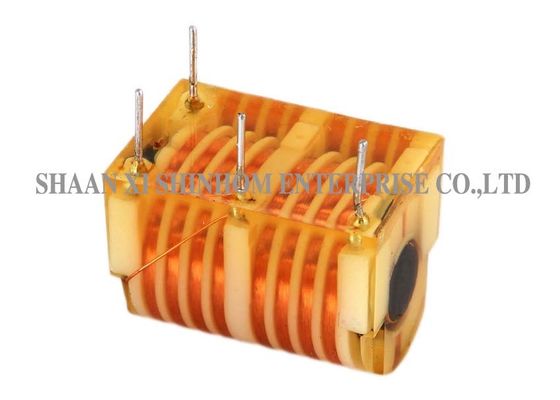

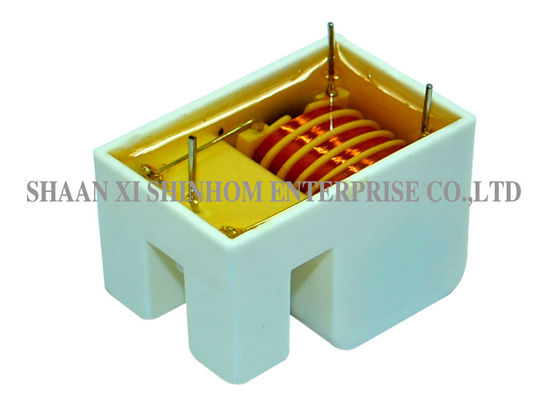

Lightweight High Voltage Ignition Transformer , High Power Ignition Coil

China Lightweight High Voltage Ignition Transformer , High Power Ignition Coil supplier
Lightweight High Voltage Ignition Transformer , High Power Ignition Coil supplier Lightweight High Voltage Ignition Transformer , High Power Ignition Coil supplier Lightweight High Voltage Ignition Transformer , High Power Ignition Coil supplier Lightweight High Voltage Ignition Transformer , High Power Ignition Coil supplier

Large Image :  Lightweight High Voltage Ignition Transformer , High Power Ignition Coil

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HT2325V-161

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Core Material: Ferrite Core Output Voltage: 12KV
Type: High Voltage Ignition Coil Core: R8X18.5
Size: 31.5*23.2*25.5mm Turns Ratio: 161:1

 High voltage ignition transnformer,Voltage up to 12kV oil/gas burn ignition and ozone generator air cleaning system

Features:

  • Ignition coils for gas and oil burners
  • Customized transformers for number of applications
  • High-voltage power and pulsed transformers
  • Customized specifications are accepted



Application:

  • High-voltage Custom-made Ignition Transformer
  • Ignition coils for gas and oil burners
  • High-voltage transformer for ozone generator
  • High voltage ignition transformer inductor, designed for small engine trigger, with RoHS mark





Electrical specification:

  • Inductance: Pin2-1: 25uH±20%@1KHz,0.3V
  • Inductance: Pin3-4: 500mH±15%@1KHz,0.3V
  • Turns ratio: Sec:Pri=160 Ref
  • DCR: Pin2-1: 0.13Ω±15%
  • DCR: Pin3-4: 1700Ω±15%

Lightweight High Voltage Ignition Transformer , High Power Ignition Coil



Primary Competitive Advantages:

  • Experienced Staff
  • Green Product
  • International Approvals
  • Military Specifications
  • Prompt Delivery
  • Quality Approvals
  • Small Orders Accepted



Notes: More products can be customized
