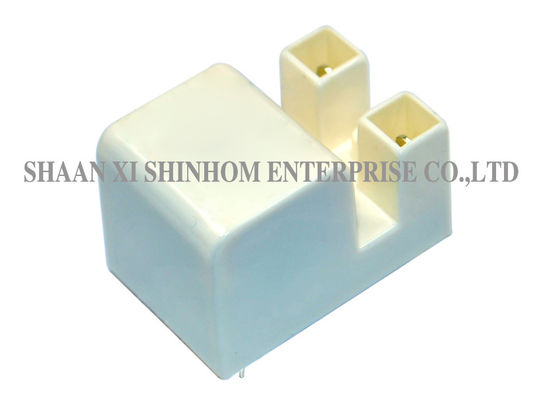

Portable High Voltage Ignition Transformer , Spark Ignition Transformer

China Portable High Voltage Ignition Transformer , Spark Ignition Transformer supplier
Portable High Voltage Ignition Transformer , Spark Ignition Transformer supplier Portable High Voltage Ignition Transformer , Spark Ignition Transformer supplier Portable High Voltage Ignition Transformer , Spark Ignition Transformer supplier Portable High Voltage Ignition Transformer , Spark Ignition Transformer supplier

Large Image :  Portable High Voltage Ignition Transformer , Spark Ignition Transformer

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HT82

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Type: High Voltage Ignition Coil Input: 230V
Operating Frequency: 50Hz Size: 82 × 69 × 67mm
Ignition Distance: 3 ~ 4mm Sec Peak Voltage At Open Circuit: 3.54KV

HT82 Series High Voltage Ignition Transformer,Ignition coil transformer for gas stove 230V input,2*2.5KV output



        High voltage ignition transformer can be customized in many different versions to fit the requirements of any kind of application like oil and gas burners, high pressure cleaners, anti-mosquito equipments, ozone generators.



Features:

  • Ignition coils and custom-made transformers
  • High voltage trigger transformers ozone generator for industrial and appliances
  • Ignition coils for gas and oil burners
  • Custom-made transformers for a number of applications
  • High-voltage transformer types: power, pulsed



Application:

  • Ignition of small burners
  • Fuel gas burners
  • Integrated burners
  • Industrial combustion equipment



Electrical specification:

  • Pri voltage: 230V/50Hz
  • Pri current: 0.3A
  • Apparent power: 69VA
  • Sec voltage at open circuit: 2*2.5KV±10%
  • Sec peak voltage at open circuit: 3.54KV
  • Sec current in short circuit: 10mA±10%

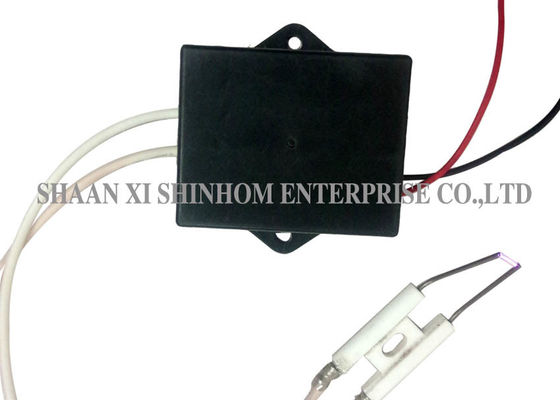

Portable High Voltage Ignition Transformer , Spark Ignition Transformer





 Primary Competitive Advantages:

  • Experienced Staff
  • Green Product
  • International Approvals
  • Military Specifications
  • Prompt Delivery
  • Quality Approvals
  • Small Orders Accepted



Notes: More products can be customized

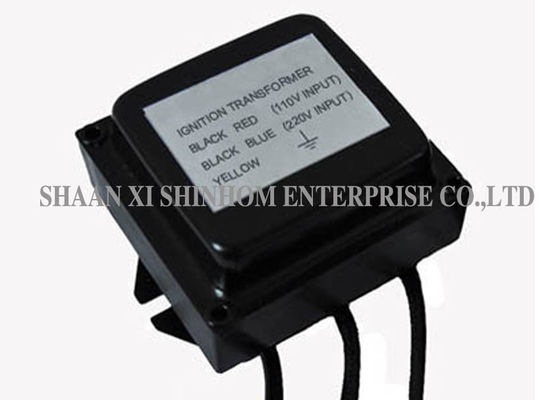

Portable High Voltage Ignition Transformer , Spark Ignition Transformer
