Open Loop Mode Hall Effect Current Sensor Input 300A Supply Voltage 24V

China Open Loop Mode Hall Effect Current Sensor Input 300A Supply Voltage 24V supplier
Open Loop Mode Hall Effect Current Sensor Input 300A Supply Voltage 24V supplier Open Loop Mode Hall Effect Current Sensor Input 300A Supply Voltage 24V supplier Open Loop Mode Hall Effect Current Sensor Input 300A Supply Voltage 24V supplier Open Loop Mode Hall Effect Current Sensor Input 300A Supply Voltage 24V supplier

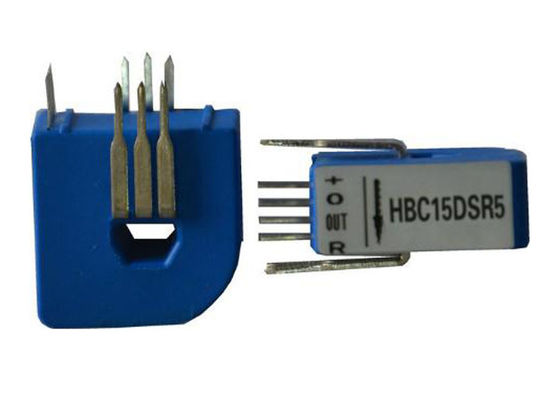

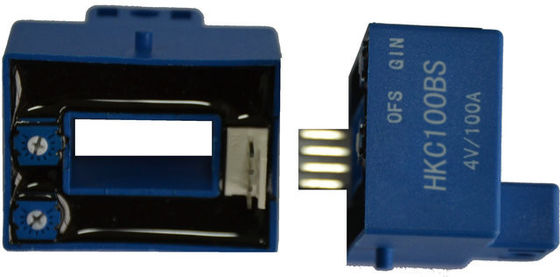

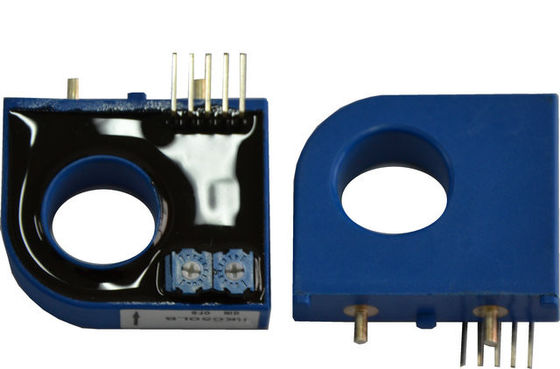

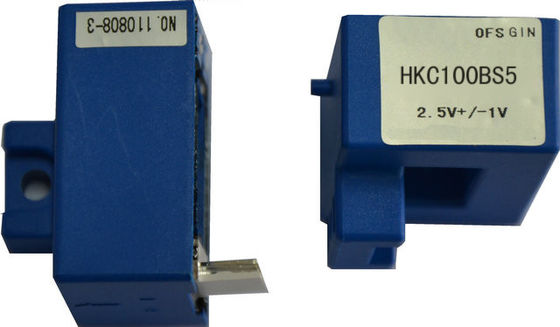

Large Image :  Open Loop Mode Hall Effect Current Sensor Input 300A Supply Voltage 24V

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HKC-LBS5

Payment & Shipping Terms:

Minimum Order Quantity: 500PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Theory: Hall Effect Supply Voltage: 24V (±5%)
Rated Input: 0A~300A Rated Output: 0.625V ±1%
Nsulation Voltage: 2.5KV,50(60)Hz,1min Output: Switching Transducer

HKC-LBS5 Series Open Loop Mode Hall Effect Current Sensor Input 300A,Supply voltage 24V



             HKC-LBS5 Series current sensor is a open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents. the current sensor Can be used to

  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)
  • Frequency control device
  • Inverter device
  • SMPS switching power supply
  • Electric locomotive
  • Grid monitoring
  • Industrial grade
  • UPS uninterruptible power supply
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Power supplies for welding applications





ELECTRICAL DATA:

  HKC50LBS5 HKC100LBS5 HKC200LBS5 HKC300LBS5
Rated input current 50 100 200 300 A
Test current range 75 150 300 450 A
Rated output voltage 0.625±1% V
Supply voltage 24±5% V
Zero voltage Offset 2.5±0.025 V
Current consumption ≤20 mA
Linearity ≤±1 %FS
Response time <5 µs
Output temperature drift ≤±3 mV /℃
Zero temperature drift ≤±1 mV/℃
Insulation voltage 50(60)HZ,1min 2.5 KV
Operating Temperature -10~+80
Storage Temperature -40~+85



Open Loop Mode Hall Effect Current Sensor Input 300A Supply Voltage 24V





Features:

  • Operating current: 0 to 300A
  • Power supply: 24V (±5%)
  • Rated output voltage: 0.625V ±1%
  • Mount easily
  • High accuracy grade
  • Open loop design
  • Working (operating) temperature: -25 to +85°C
  • Certification: UL 94-V0
  • RoHS Directive-compliant





Notes: Product specifications can be customized
