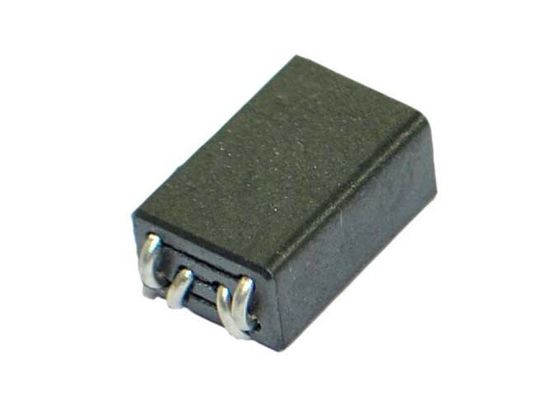

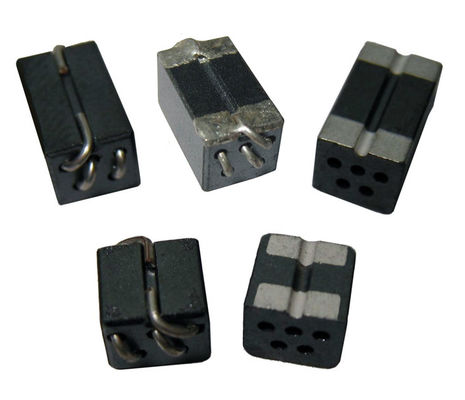

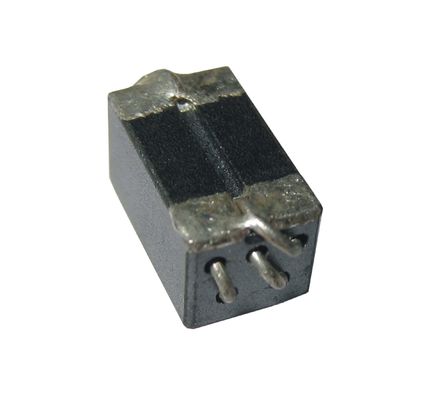

EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm

EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm
EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm

Large Image :  EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SMB5H05-3T
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Detailed Product Description
Size: 5.0*5.5*4.6mm Turns: 3Ts
Rated Current: 5A Impedance: 416Ω Typ@100MHz
Material: NiZn Application Condition: EMC/EMI
Product Name: Ferrite Bead Choke Type: Soft
High Light:

emi suppression beads

,

emi filter bead

5.0*5.5*4.6mm Ferrite Bead Inductors in Various Types, Suitable for EMI Suppression,SMD ferrite bead axial choke



Electrical specification:

  • Impedance: 272Ω Typ@25MHz
  • Impedance: 416Ω Typ@100MHz
  • Rated Current: 5.0A
  • RDC: 7.0mΩMax
  • Operating temperature: -40℃ to 125℃

EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm 0





Test curve



EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm 1



Features:

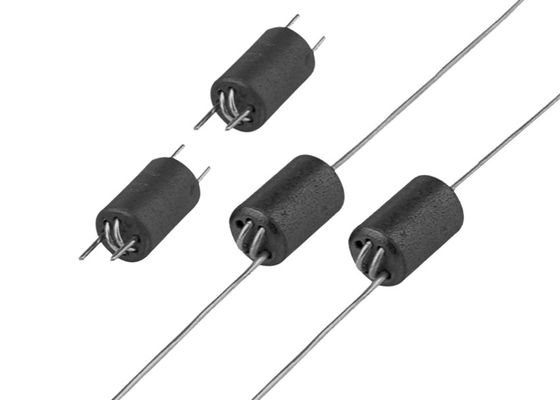

  • Through-hole axial ferrite beads for EMI suppression
  • Through-hole ferrite beads in ragged construction
  • Surface-mount wire wound beads with high frequency and EMI suppression
  • Low DCR and high IDC beads inductor



Application:

  • Modems, PDP, LCD, and TVs converters
  • Mobile radios, DC/DC converters
  • Noise filtering devices
  • Track and SCR control circuits
  • Wireless communication equipments
  • Computer disk drive and PC board to filter the EMI from outside sources such as car radios, mobile phones and VCRs



For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.

EMI Suppression Ferrite Bead Inductors Soft Type NiZn Material 5.0 * 5.5 * 4.6mm 2
