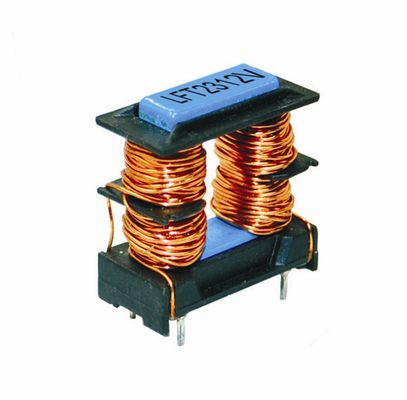

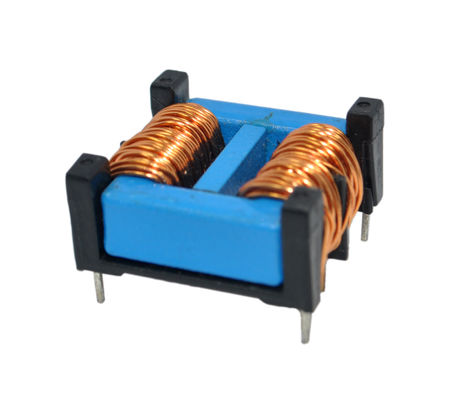

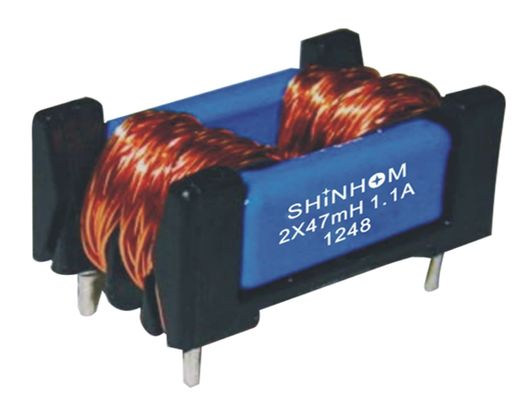

electronics Ferrite Coil 100mH Ac Line Filter Choke

electronics Ferrite Coil 100mH Ac Line Filter Choke
electronics Ferrite Coil 100mH Ac Line Filter Choke electronics Ferrite Coil 100mH Ac Line Filter Choke electronics Ferrite Coil 100mH Ac Line Filter Choke

Large Image :  electronics Ferrite Coil 100mH Ac Line Filter Choke Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: LFT2312
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Working Frequency: High Frequency Rated Voltage: 300V
Name: Common Mode Inductor Structure Of Magnetizer: Ferrite Coil
Inductance Range: 10mH To 100mH Hi-Pot: 1500Vac,2s
High Light:

Ferrite Coil Common Mode Inductor

,

100mH Ac Line Filter Choke

,

Horizontal Ac Line Filter Choke

Customized Ac Line Filter Choke , Common Mode Frame Core Choke Coils



           Frame core power line choke provides exceptional common-mode suppression and exceptional stray inductance to suppress differential-mode noise. In effect, the LFT series combines the features of two separate components into one. They are compact in size and are available in the either vertical configuration, using minimal board area, or horizontal configuration for low profile applications. They are frequently used in LED lighting, electronics ballast and switch -mode power supplies.





Features:

  • Shape: Vertical, Horizontal
  • Rated Current: 0.7~2.3A
  • Insulation voltage: 1500VAC,2S(line-line)
  • Rated voltage: 300VAC max@40°C
  • High inductance with low resistance
  • Current-compensated double choke, closed magnetic circuit with frame construction
  • Excellent differential-mode suppression, high pulse-handing capability
  • Design complies with EN 60938-2 (VDE 0565-2), RoHS-compatible



Application:

  • Electronic ballasts for lamps
  • High power switch-mode power suppliesfor consumer electronics
  • Current compensated double choke
  • Closed magnetic circuit with frame construction



electronics Ferrite Coil 100mH Ac Line Filter Choke 0
