High Accuracy Hall Effect Current Sensor 100A , Hall Effect Current Transducer

China High Accuracy Hall Effect Current Sensor 100A , Hall Effect Current Transducer supplier

Large Image :  High Accuracy Hall Effect Current Sensor 100A , Hall Effect Current Transducer

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HBC-LA

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Turns Ratio: 1:1000,1:1500,1:2000 Rated Input: 25A,50A,75A,100A
Rated Output: 25mA±0.5%, 50mA±0.5% Insulation Voltage: 3.0KV/50HZ,1min OR 60HZ,1min
Operating Temperature: -40~+85℃ Storage Temperature: -40~+105℃

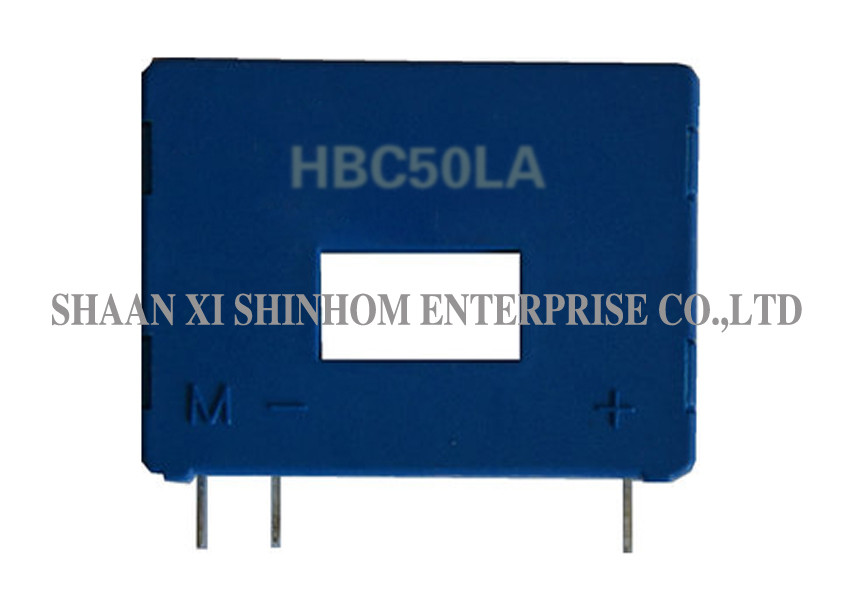

HBC-LA Series Brand New and Original Hall Effect Current Sensor Current Transducer with 0 to 100A Operating Current



           HBC-LA Series current sensor with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.



Attention:

  • Is is positive when Ip flows in the direction of the arrow.
  • Temperature of the primary conductor should not exceed 100 ℃.
  • Dynamic performance are test with a single bar completely filling the primary hole.
  • The primary turns round on the top of the sensor to perform best magnetic clutch

Features:

  • Operating currents: 0 to 100A
  • Rated output current: 25mA±0.5%, 50mA±0.5%
  • Mount easily
  • High accuracy grade

Applications:

  • Power supplies for welding applications
  • Battery supplied applications
  • AC variable speed drives and servo motor drives
  • Switched mode power supplies (SMPS)
  • Uninterrupted power supplies (UPS)
  • Static converters for DC motor drives



ELECTRICAL DATA:

Item HBC25LA HBC50LA HBC75LA HBC100LA
Rated input current 25 50 75 100 A
Test current range 0~±38 0~±75 0~±105 0~±150 A
Turns ratio 1:1000 1:1000 1:1500 1:2000
Sec winding impedance 30 30 30 30 Ω
Rated output current 25±0.5% 50±0.5% mA
Supply voltage ±15 DC ±5% V
Offset current ≤±0.2 ≤±0.15 mA
Offset current Drift ±0.1mA Type ±0.5mA Max ±0.1mA Type ±0.5mA Max mA
Linearity   ≤±0.2 %FS
Bandwidth(-3db)   0~200 KHz
Response time(100A/us)   ≤1 us
Insulation voltage 3.0/50HZ,1min OR 60HZ,1min KV
Operating Temperature -40~+85
Storage Temperature -40~+105

High Accuracy Hall Effect Current Sensor 100A , Hall Effect Current Transducer





Notes: Product specifications can be customized
