0.5W Radio Frequency Transformer Low Insertion Loss Convenient Installation

0.5W Radio Frequency Transformer Low Insertion Loss Convenient Installation
0.5W Radio Frequency Transformer Low Insertion Loss Convenient Installation 0.5W Radio Frequency Transformer Low Insertion Loss Convenient Installation 0.5W Radio Frequency Transformer Low Insertion Loss Convenient Installation 0.5W Radio Frequency Transformer Low Insertion Loss Convenient Installation

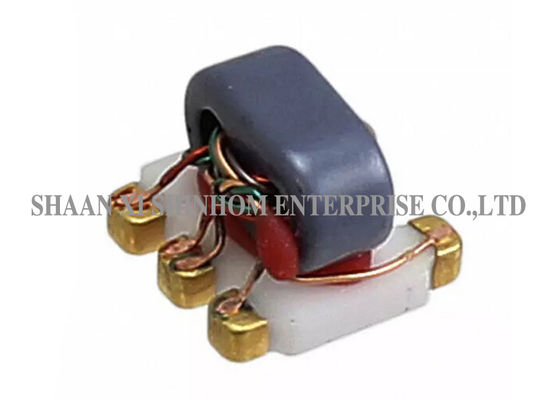

Large Image :  0.5W Radio Frequency Transformer Low Insertion Loss Convenient Installation Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RF6S-1566
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Frequency: 5-100MHz Characteristic Impedance: 75Ω
Operating Temperature: -40℃ To 85℃ Insertion Loss: 2.0dB
Input Return Loss: 10dB
High Light:

radio frequency transformer

,

rf balun transformer

1CT:1 Flux coupled transformer,SMD RF Balun transformer,5 - 100MHz,75 Ohm Characteristic Impedance,0.5W

Features:

  • 1: 1 Impedance
  • 75Ω Characteristic Impedance
  • RF power: 0.5W
  • DC current: 30mA
  • Frequency: 5 to 100 MHz
  • Insertion loss: 2.0dB Max
  • Input Return loss: 10.0dB Min



Applications:

  • For broadband and wireless communications
  • For VHF/UHF receivers/transmitters and push-pull amplifiers



ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

  • Frequency: 5-100MHz
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -55℃ to 100℃
Parameter Test Conditions Units Min Typ Max
Main line Loss(out1) 5-100MHz dB 0.5 1.5
Main line Loss(out2) 5-100MHz dB 1.0 2.0
Amplitude Balance 5-100MHz dB ±0.5 ±0.5
Phase Balance 5-100MHz Degrees ±1.0 ±3.0
Input Return Loss 5-100MHz dB 10.0 15.0
