Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire

Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire
Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire

Large Image :  Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RF3S-0059
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Characteristic Impedance: 75Ω Frequency: 5-3000MHz
RF Power: 0.25W DC Current: 30mA
Operating Temperature: -40℃ To 85℃ Storage Temperature: -55℃ To 100℃
High Light:

rf impedance transformer

,

rf balun transformer

SMD Balun RF Transformers Coils with Enameled Copper Wire, Base Pin Terminal in Surface Mounting



Parameter Test Conditions Units Min Typ Max
Main line Loss(out1) 5-3000MHz dB 1.7 3.5
Main line Loss(out2) 5-3000MHz dB 1.5 3.5
Amplitude Balance 5-3000MHz dB ±0.5 ±1.0
Phase Balance 5-3000MHz Degrees ±2.0 ±18.0
Input Return Loss 5-3000MHz dB 6.0 25.0

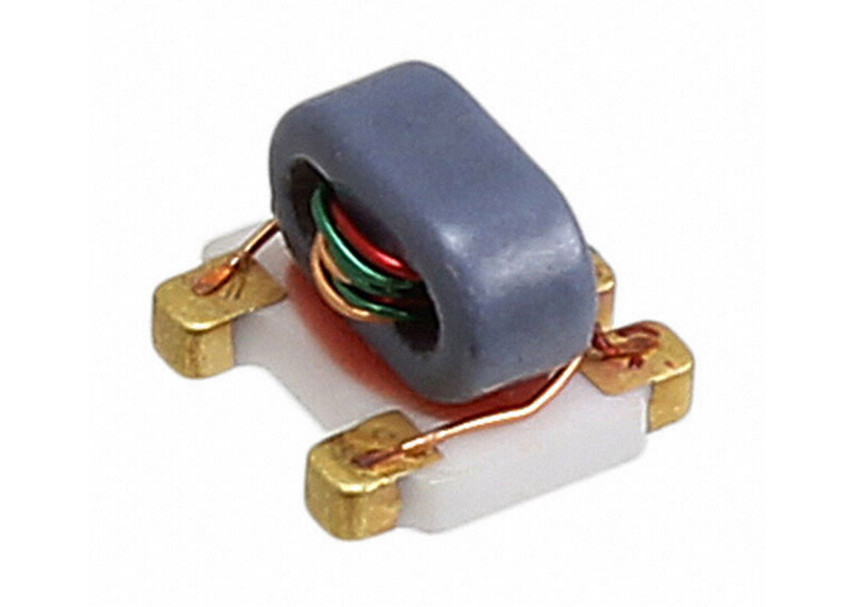

Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire 0

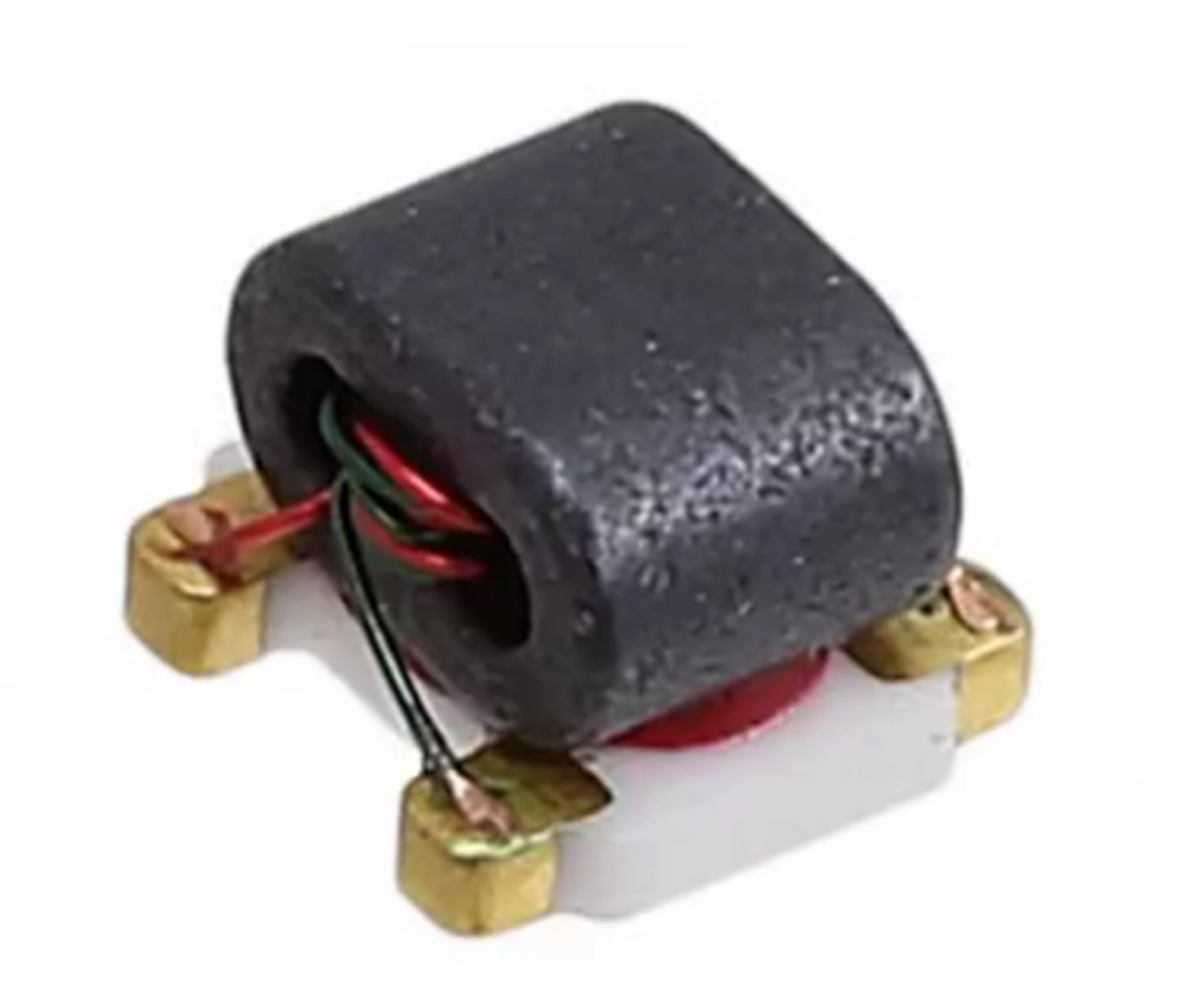

Radio Frequency Wideband Balun Transformer Coils With Enameled Copper Wire 1



Features:

  • 1: 1 Impedance
  • 75Ω Characteristic Impedance
  • RF power: 0.25W
  • DC current: 30mA

Applications:

  • For broadband and wireless communications
  • For VHF/UHF receivers/transmitters and push-pull amplifiers

ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

  • Frequency: 5-3000MHz
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -55℃ to 100℃
