Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner

I'm Online Chat Now
Certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner

Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner
Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner

Large Image :  Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HT1040-291
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Core Material: Ferrite Core R10*40 Output Voltage: 15KV
Type: High Voltage Ignition Coil Usage: High Frequency
Size: 43.5*29*29mm Turns Ratio: 294:1
High Light:

electronic ignition transformer

,

high voltage ignition coil

15kv High Voltage Ignition Transformer Heater/Cooker Electronic Ignition Transformers For Gas/Oil Burners

Features:

  • Ignition coils for gas and oil burners
  • Customized transformers for number of applications
  • High-voltage power and pulsed transformers
  • Customized specifications are accepted
  • High-voltage Custom-made Ignition Transformer
  • High-voltage transformer for ozone generator
  • High voltage ignition transformer inductor, designed for small engine trigger, with RoHS mark



Electrical specification:

  • Inductance: Pin3-4: 19uH±15%@1KHz,0.1V
  • Inductance: Pin2-1: 867mH±15%@1KHz,0.1V
  • Turns ratio: Sec:Pri=294 Ref
  • DCR: Pin3-4: 69.6mΩ Max
  • DCR: Pin2-1: 559Ω Max
  • Operating temperature: -25℃ to +105℃

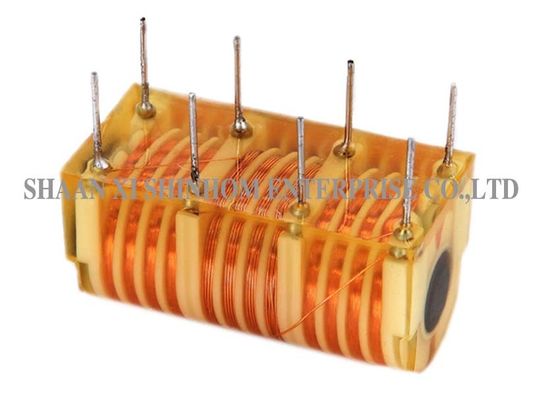

Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner 0

Primary Competitive Advantages:

  • Experienced Staff
  • Green Product
  • International Approvals
  • Military Specifications
  • Prompt Delivery
  • Quality Approvals
  • Small Orders Accepted



Notes: More products can be customized

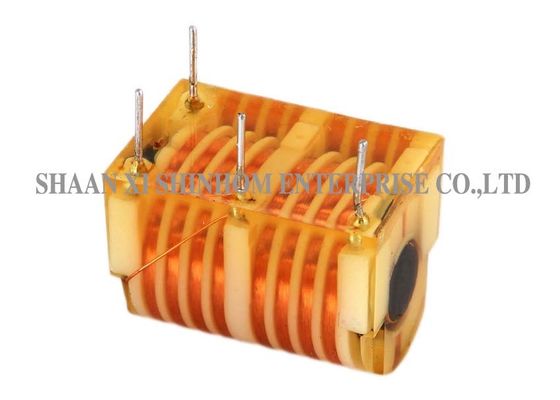

Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner 1

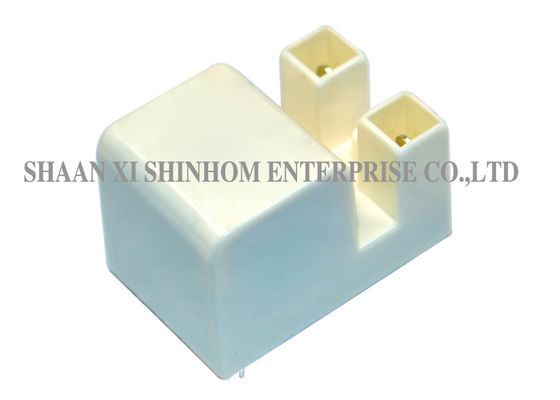

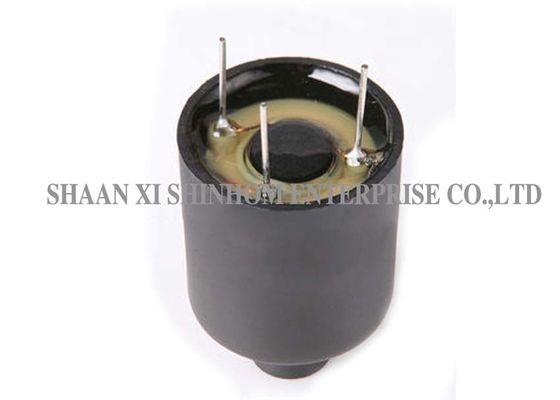

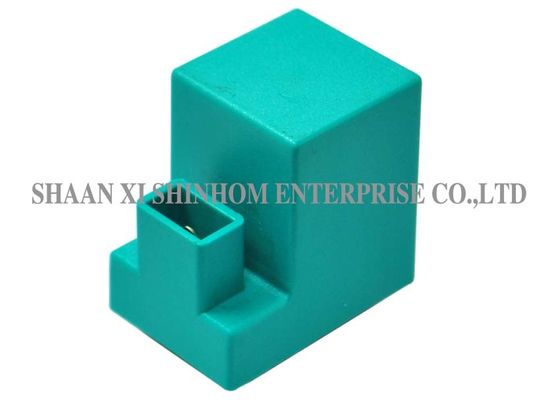

         Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner 2Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner 3Customized High Voltage Ignition Transformer , 15kV Ignition Transformer For Gas Burner 4
