Customized Hall Effect Current Transducer High Accuracy Grade Low Power Consumption

China Customized Hall Effect Current Transducer High Accuracy Grade Low Power Consumption supplier
Customized Hall Effect Current Transducer High Accuracy Grade Low Power Consumption supplier Customized Hall Effect Current Transducer High Accuracy Grade Low Power Consumption supplier Customized Hall Effect Current Transducer High Accuracy Grade Low Power Consumption supplier Customized Hall Effect Current Transducer High Accuracy Grade Low Power Consumption supplier

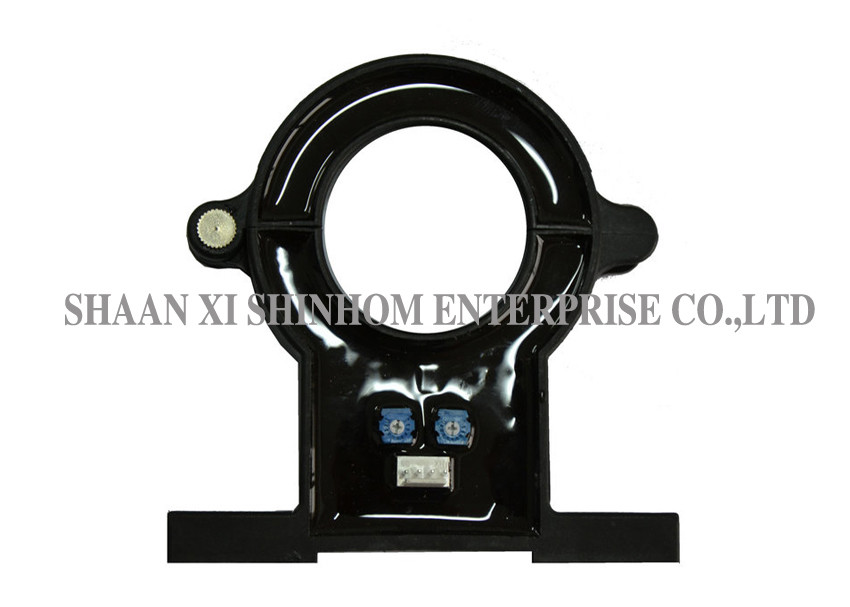

Large Image :  Customized Hall Effect Current Transducer High Accuracy Grade Low Power Consumption

Product Details:

Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HKC-N

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Supply Voltage: ±15V ±5% Rated Input: 50A~600A
Rated Output: 4V±1% Insulation Voltage: 2.5KV,50HZ,1min
Operating Temperature: -40~+85℃ Storage Temperature: -40~+105℃

HKC-N Series Hall Effect Current Sensor, Sense Transformer Transducer with up to 600A Operating Current



            HKC-N current sensor with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.



Features:

  • Input current: 600A
  • Power supply: ±15V ±5%
  • Rated output voltage: 4V±1%
  • Easy installation
  • Can be customized
  • High accuracy
  • Very good linearity
  • Optimized response time, no insertion losses
  • Mount easily
  • High accuracy grade
  • Low power consumption
  • Low temperature drift * High immunity to external interference



Applications:

  • Uninterrupted power supplies (UPS)
  • Static converters for DC motor drives
  • Switched mode power supplies (SMPS)
  • Power supplies for welding applications
  • Battery supplied applications
  • AC variable speed drives and servo motor drives



ELECTRICAL DATA:



  HKC50N HKC100N HKC200N HKC300N HKC400N HKC500N HKC600N
Rated input current 50 100 200 300 400 500 600 A
Test current range 150 300 600 900 1000 1000 1000 A
Rated output voltage 4±1% V
Supply voltage ±15 ±5% V
Supply current consumption ≤±25 mA
Offset voltage ≤±25 mV
Magnetic offset voltage ≤±30 ≤±20 mV
Offset voltage Drift ≤±1.5 ≤±1 mV/℃
Linearity ≤±1 %FS
Response time ≤5 μS
Insulation voltage (50HZ,1min),2.5 KV
Operating Temperature -40~+85
Storage Temperature -40~+105

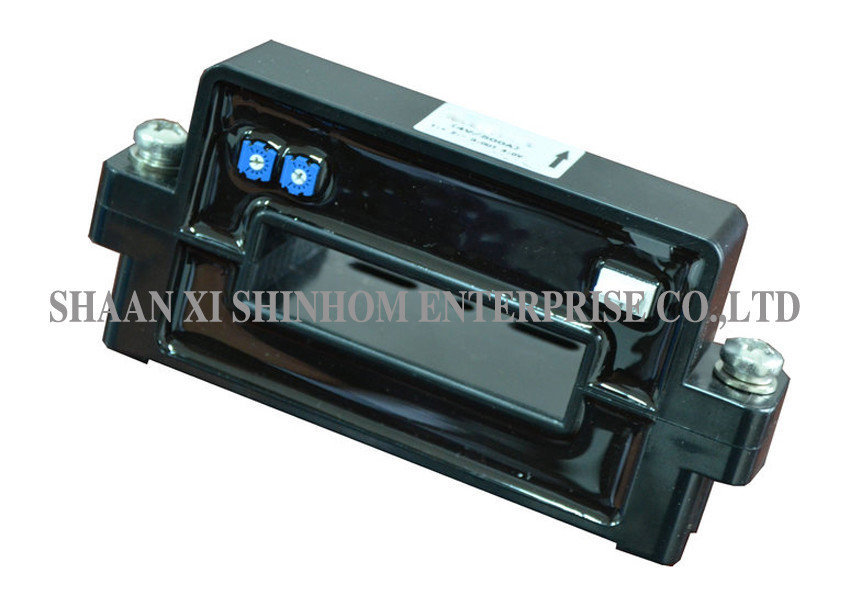

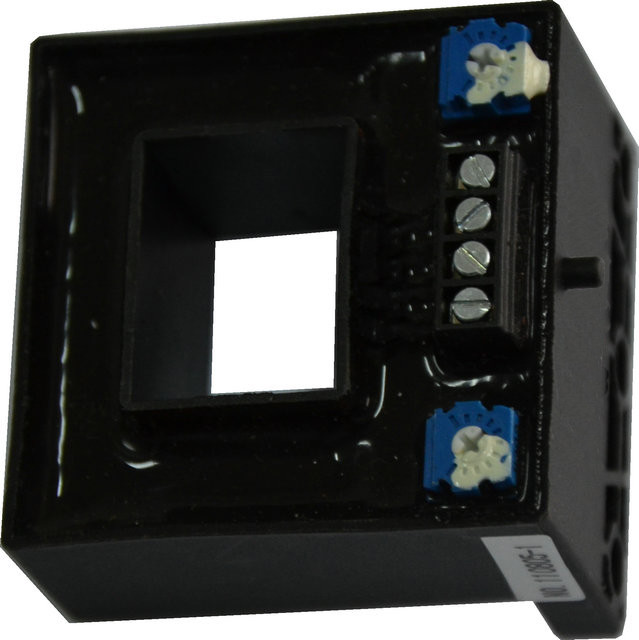

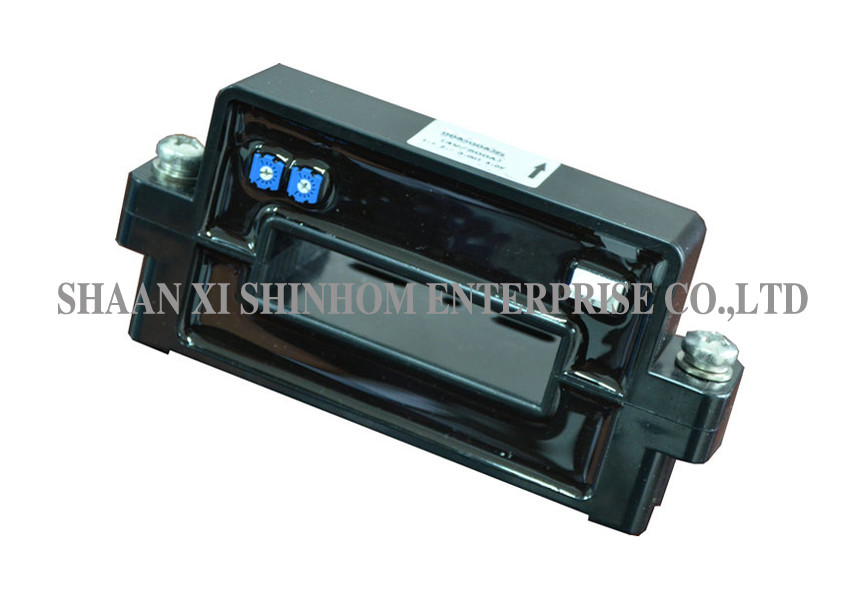

Customized Hall Effect Current Transducer High Accuracy Grade Low Power Consumption



Notes: Product specifications can be customized
