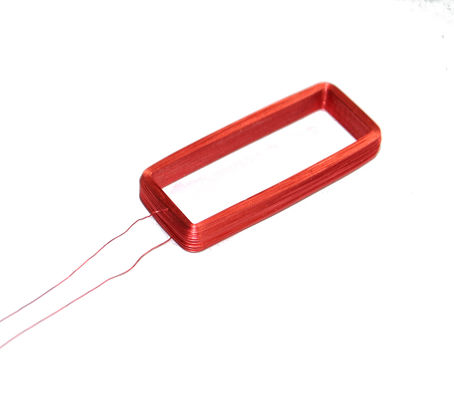

RFID Transponder Air Core Coil 125KHz Frequency 0.14mm Wire Diameter

Negotiation
MOQ
Negotiation
Price
RFID Transponder Air Core Coil 125KHz Frequency 0.14mm Wire Diameter
Features Gallery Product Description Request A Quote
Features
Specifications
Size: 36X15.5X4.5mm
Inductance: 3.8mH±10%
DCR: 40Ω±5%
Frequency: 125KHz
Wire Diameter: 0.14mm
Type: Air Core / Coreless / Bobbinless Coil / Antenna RFID Coil
Highlight:

rfid transponder coil

,

qi wireless charging coil
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AR
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

125KHZ RFID Antenna Air Core Coil , Coreless / Bobbinless Coil Copper Winding Inductor





Electrical specification:

1
Type
coil
2
Wire diameter
0.14mm
3
Inner Diameter
31.8X10.8mm
4
Outer Diameter
36X15.5mm Max
5
Inductance @120khz/1v
3.8mH±10%
6
Charging coil thickness
4.5mm max
7
 DCR 40Ω±5%
8
Lead wire
10±2mm
9
Solder
5mm
10
Lead time of sample
3-5 working days
11
Lead time of mass production
depend on the quantity
12
Certificate
ISO9001:2015 and ROHS



Features:

  • Winding different shapes as per your inquiry
  • Meet your inquired inductance and resistance
  • Windings are bond by a strong adhesive
  • High Q value and wide inductance range
  • Honeycomb type winding with silk copper wire
  • Multilayer structure
  • Customized specifications are welcome





For More RFID antenna coil, Please Go To Our Website Or Contact Us.

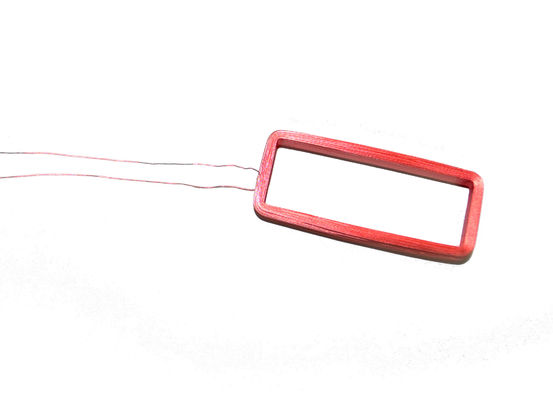

RFID Transponder Air Core Coil 125KHz Frequency 0.14mm Wire Diameter 0
