Ferrite Hollow Square Flat Wire Common Mode Choke

Ferrite Hollow Square Flat Wire Common Mode Choke
Ferrite Hollow Square Flat Wire Common Mode Choke Ferrite Hollow Square Flat Wire Common Mode Choke

Large Image :  Ferrite Hollow Square Flat Wire Common Mode Choke Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SQS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Wire: Flat Wire Mode: Common Mode
Core: Ferrite Hollow Square Test Frequency: 10kHz
Winding Process: Horizontal Operating Temperature: -40ºC To +125ºC
High Light:

Flat Wire Common Mode Choke

,

Horizontal Winding Common Mode Choke

,

Ferrite Hollow Common Mode Choke

High Frequency Flat wire high current common mode chokes Coil , SMD Inductor , Filter





FEATURES:

  • L(1-2)=(4-3): 10mH Min @1.0KHz,0.25V
  • DCR(1-2)=(4-3): 220mΩ Max
  • Rated current: 1.8A Max(Temp. rise 40℃ Max)
  • Rated voltage: 250V Max
  • Hi-Pot: 2000Vac,60S Coil to Coil
  • Operating temperature: -25℃ to +125℃
  • Storage temperature: -25℃ to +100℃
  • Replacement for: EE16,EE19,EE25,EF16,EF20,EF25,UU10.5, UU16,toroidal common mode inductors
  • High current, small profile, high efficiency with High frequency skin effect of flat wire, unit current density can reach 1.5-2 times of round copper wire, and the volume will be 0.5-1.0 times smaller under the same condition
  • Lower temperature coefficient, only around once layer winding, perfect efficiency of heat sink , the temperature raise is much lower than the toroidal inductor
  • Interturn capacitance is smaller than toroidal core, high insulation strength and high reliability
  • The closed magnetic core design
  • Use the flat wire, improving the space factor
  • Single phase winding, thereby dramatically reduce stray capacitance
  • EMI suppression is excellent
  • Fully automatic winding, neat line arrangement, no overlapping, high production efficiency, low labor



APPLICATION:

  • Personal Computer
  • Switching power supply, Adapter and UPS
  • Computer products
  • LED power supply
  • LCD TV & Monitor Displays Power Boards
  • Consumer Electric Products & Battery Charger, Printers

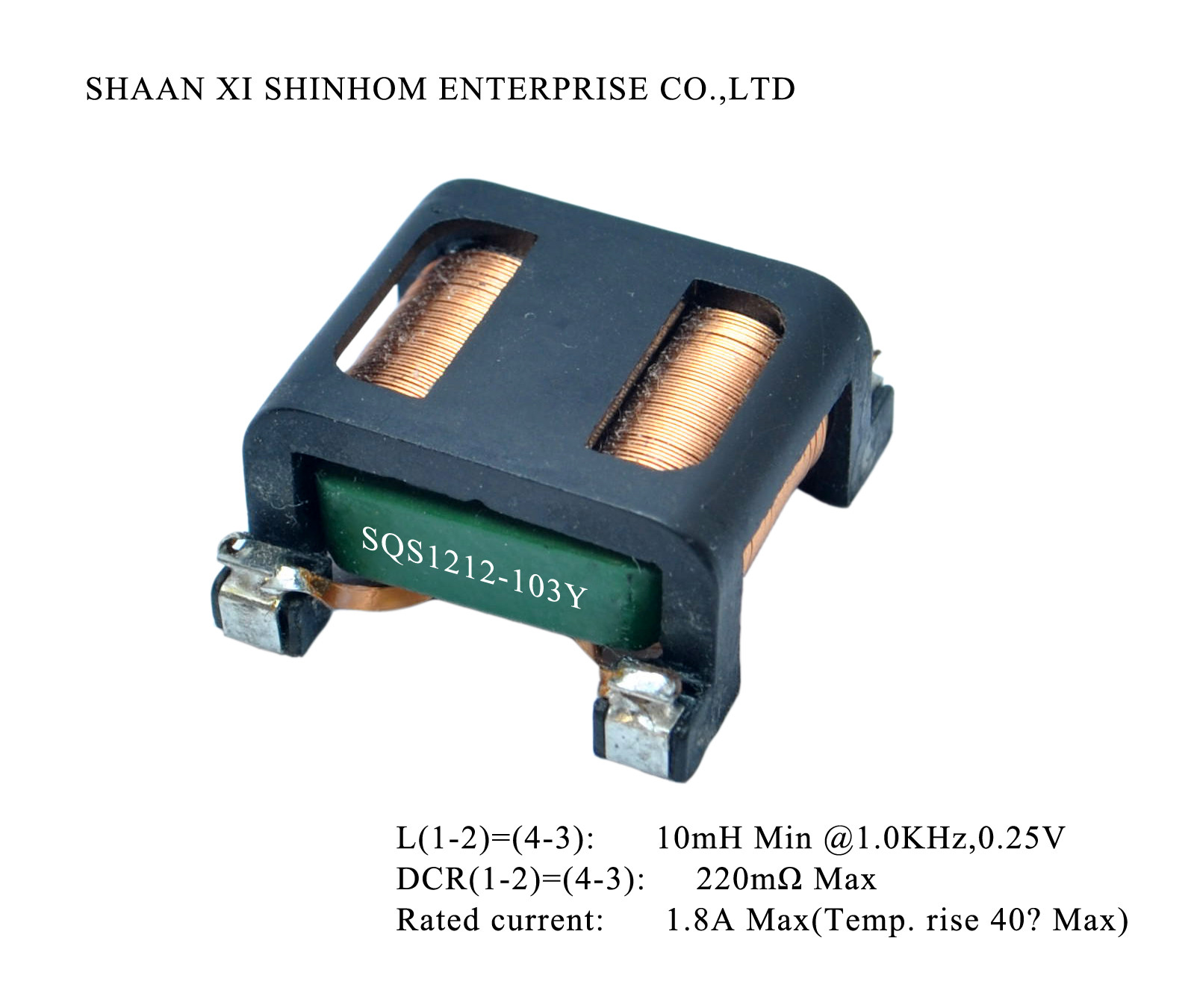

Ferrite Hollow Square Flat Wire Common Mode Choke 0

Notes: Customized is available

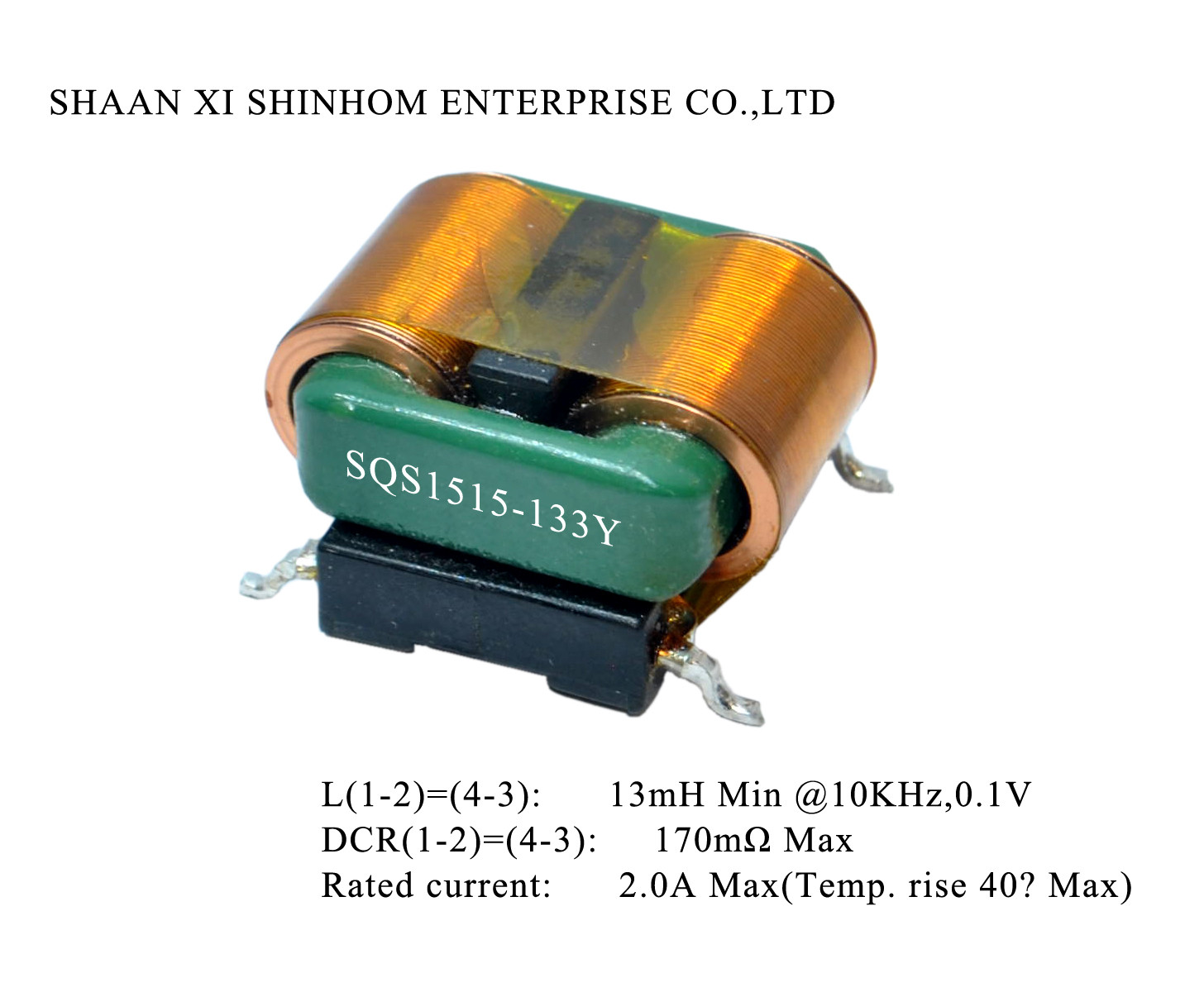

Ferrite Hollow Square Flat Wire Common Mode Choke 1
