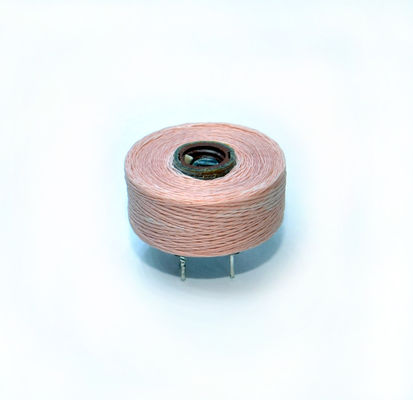

High Voltage Trigger Ignition Coil Transformer Ferrite Core

High Voltage Trigger Ignition Coil Transformer Ferrite Core
High Voltage Trigger Ignition Coil Transformer Ferrite Core High Voltage Trigger Ignition Coil Transformer Ferrite Core

Large Image :  High Voltage Trigger Ignition Coil Transformer Ferrite Core Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: TC-12120-1
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Core Material: Ferrite Core Inductance Range: Adjustable
Type: Trigger Transformer Usage: High Frequency
Operating Temperature: -25℃ To +125℃ Turns Ratio: 1500:13
High Light:

Trigger Ignition Coil Transformer

,

High Voltage Ignition Coil Transformer

,

Ferrite Core Ignition Coil Transformer

High Voltage Ignition Coil , Trigger Coil , High Voltage Transformer

Features:

  • trigger coils for Flash tube
  • Ignition coils and custom-made transformer
  • Custom-made transformers for a number of applications
  • High-voltage transformer types: power, pulsed



Electrical specification:

  • L(3-1): 3.2uH±25% @1KHz,1V
  • L(4-6): 30mH±20% @1KHz,1V
  • DCR(3-1): 0.13Ω±5%
  • DCR(4-6): 490Ω±5%
  • Operating temperature: -25℃ to +125℃ (Including temp. rise 40℃)



High Voltage Trigger Ignition Coil Transformer Ferrite Core 0





Notes: More products can be customized

High Voltage Trigger Ignition Coil Transformer Ferrite Core 1

               High Voltage Trigger Ignition Coil Transformer Ferrite Core 2High Voltage Trigger Ignition Coil Transformer Ferrite Core 3High Voltage Trigger Ignition Coil Transformer Ferrite Core 4
