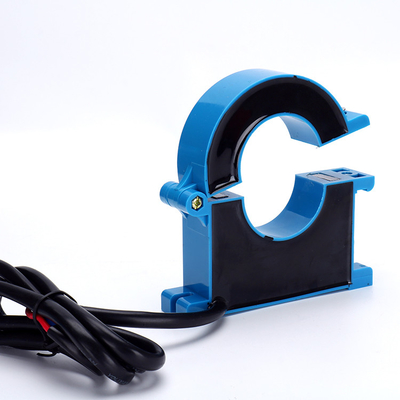

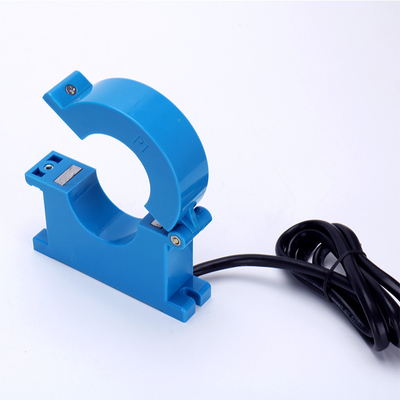

SCTK Series Split Core Current Transformer with Epoxy Encapsulated Housing and 5~1500A input
SCTK series split-core current transformer has been specially designed to facilitate their installation in new or already existing net works. They may be installed without opening any cable or bus-bar circuit. An internal precision resistor across the secondary winding of the CT provides a low safe voltage output. It can save time and the installation costs.
Applications:
|
working frequency
|
50-60Hz
|
|||
|
Rated input
|
5-1500A
|
|||
|
Rated output
|
1A 5A
|
|||
|
Voltage grade
|
0.66/0.72KV
|
|||
|
Insulation resistance
|
DC500V/100MΩmin
|
|||
|
Dielectric strength
|
2.5KV/1mA/1min
|
|||
|
25 aperture current ratio
|
50/5 100/5 150/5 200/5 250/5 300/5 400/5
|
|||
|
38 aperture current ratio
|
50/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5
|
|||
|
50 aperture current ratio
|
100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 1000/5
|
|||
Notes: Product specifications can be customized
