Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils

Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils
Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils

Large Image :  Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SMAR
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Size: Custom-made Inductance: 5.7~27.3nH
Tolerance: 2%,5% Current: 4.4A Max
Quality Factor: Up To 130 Type: Especially For RF Applications
High Light:

SMD Quadrate Air Coil

,

Surface Mounting Quadrate Air Coil

,

2% Tolerance SMD Air Coils

Quadrate Air Coils , SMD Air Coils ,Surface Mounting Quadrate Air Coil



Features:

· Inductance values from 5.5 nH up to 27.3 nH.
· Excellent Quality Factor- up to 130.
· High self-resonant frequency.
· Ultra-miniature size, high currents up to 4.4 Amps.
· All value availbale in 2%, 5% tolerance.
· Ag-solder coated leads ensure reliable soldering.
· Flat top and bottom for reliable pick and place and mechanical stability.



APPLICATIONS:

· Especially for RF applications.
· Ideal for high current applications.
· Broad band filter.
· RF-Decoupling.

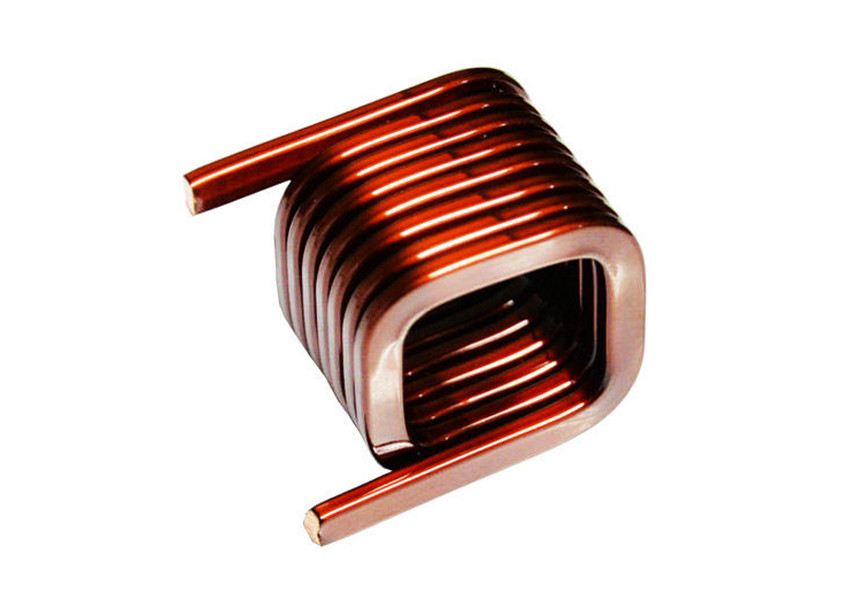

Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils 0

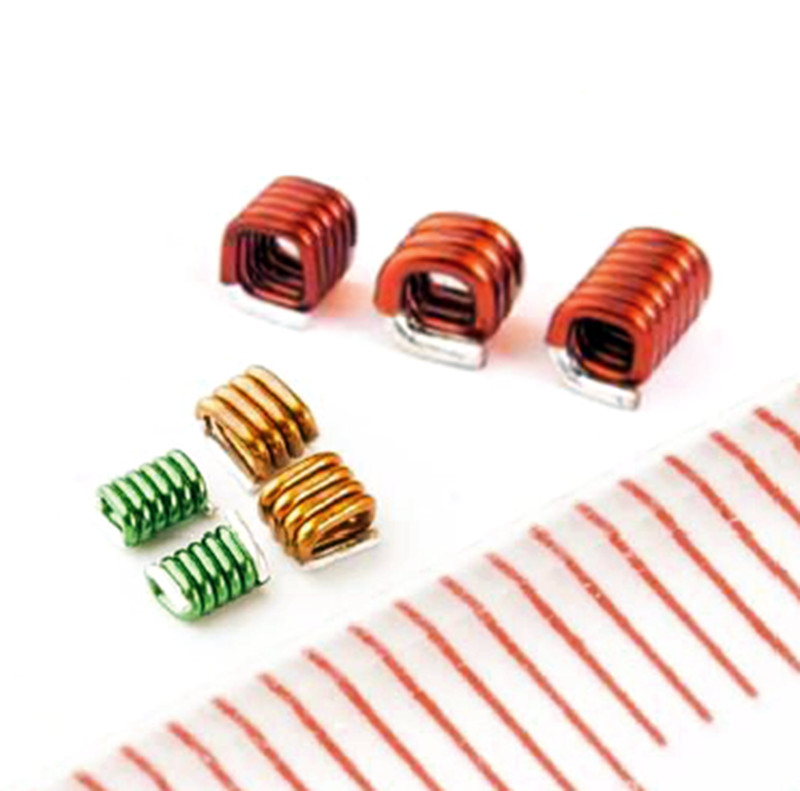

Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils 1

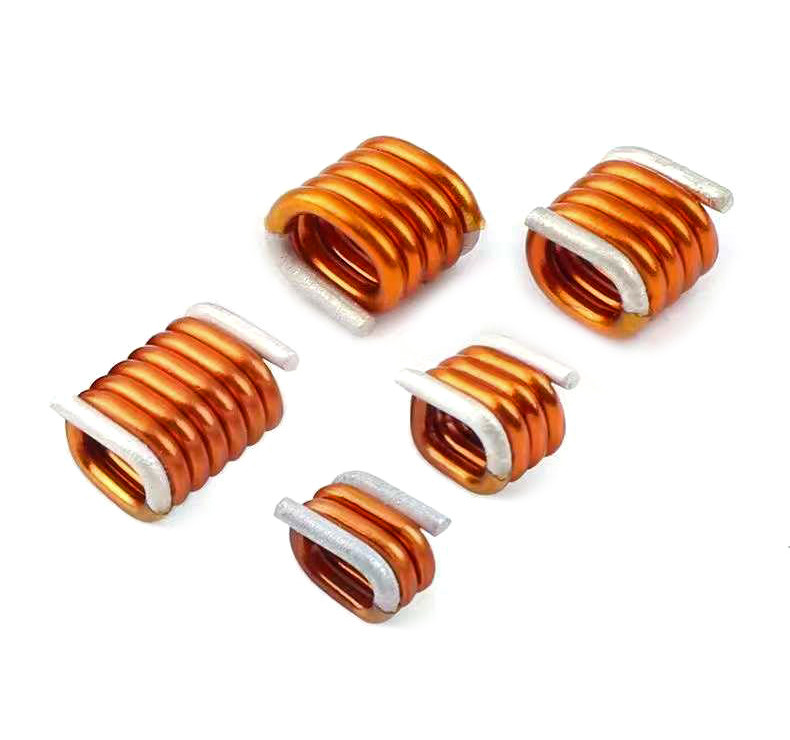

Surface Mounting Quadrate Air Coil 2% Tolerance SMD Air Coils 2
