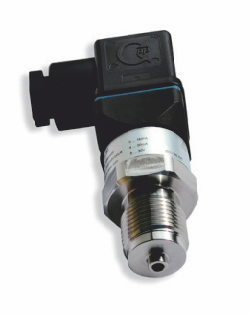

Rugged Universal Pressure Transmitter for Industrial Automation

Engineered for reliable pressure measurement in harsh industrial conditions, this universal pressure transmitter features all-welded stainless steel construction for superior durability. The SMF6352 high temperature series utilizes sapphire sensing technology to withstand extreme heat up to +400°C. The SMP6602 hydraulic series supports multiple output options including 4-20mA, 0-5V, 0.5-4.5V, and 0-10V for flexible system integration. Backed by years of field-proven performance, this industrial pressure transmitter delivers the accuracy and stability your automation system demands.

• Pressure Type: Absolute pressure, sealed gauge pressure

• Pressure Range: 0MPa ~ 1MPa...100MPa (SMF6352); -100kPa~0kPa ~ 10kPa...70MPa (SMP6602)

• Output Signal: 4~20mA DC, 0~5V DC, 0.5~4.5V DC, 0~10V DC (model-dependent)

• Temperature Range: -55°C ~ +400°C (SMF6352)

• Construction: All-welded stainless steel

• Media Compatibility: Compatible with various gases and liquids

• Overload Pressure: 2x full scale (typical)

• Petroleum & Chemical: Pipeline monitoring, tank level, process control.

• Power & Energy: Steam pressure, turbine control, boiler systems.

• Hydraulic Systems: Equipment monitoring, pump control, system protection.

• Environmental: Water treatment, wastewater, environmental monitoring.

• Automotive: Tire pressure measurement (SMP6352 series).

• High Temperature: Smelting, glass manufacturing, chemical reactors (SMF6352 series)

Q: What is the difference between a general-purpose pressure transmitter and a standard pressure sensor?
A: A general-purpose pressure transmitter is a complete industrial device with built-in signal conditioning. It directly outputs standard signals such as 4–20 mA or voltage output, allowing direct connection to a PLC or controller and enabling immediate use out of the box. In contrast, a bare pressure sensor core requires additional circuitry before it can be used in a system.

Q: Which pressure type should I choose?
A:

• Absolute pressure uses a vacuum reference and is suitable for applications such as altitude compensation and atmospheric pressure measurement.

• Sealed gauge pressure uses a fixed sealed reference pressure and is commonly used in high-pressure systems.

The appropriate pressure type should be selected based on the specific measurement requirements of your application.

Q: Can the high-temperature version really withstand 400°C?
A: Yes. The SMF6352 Series high-temperature pressure transmitter uses sapphire sensing technology and a fully welded structure. It is specifically designed for extreme high-temperature environments and can operate reliably at temperatures up to +400°C. It is suitable for industrial furnaces and other high-temperature process applications.
