Ferrite Bead Inductor for EMI Suppression and Noise Filtering

5000PCS
MOQ
Negotiation
Price
Ferrite Bead Inductor for EMI Suppression and Noise Filtering
Features Gallery Product Description Chat Now
Features
Specifications
Size: 10.88*10.88*11.5mm
Impedance@25MHz: 115Ω Min
Impedance@100MHz: 170Ω Min
Rated Current: 6A
Rated Votage: 50V
Type: SMD EMI Suppression Ferrite Bead
Highlight:

Ferrite bead inductor for EMI suppression

,

Ferrite bead noise filtering component

,

EMI suppression ferrite bead
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SMB1010
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Product Description

The ferrite bead inductor is designed for high-frequency EMI suppression and noise filtering applications. It offers multiple package options including SMD and through-hole types. The product features low DCR (15mΩ max.) and high current capacity (up to 6.0A), with a rated voltage of 50V. Impedance characteristics: 115Ω min. @25MHz, 170Ω min. @100MHz. It is widely used in noise filtering equipment, amplifiers, switching regulators, power supplies, mobile wireless devices, DC-DC converters, cordless phones, car radios, and GPS devices.

Features
  • Impedance (@25MHz) – ≥115Ω
  • Impedance (@100MHz) – ≥170Ω
  • DCR – ≤15mΩ
  • Rated current – ≤6.0A
  • Rated voltage – ≤50V
  • Package type – SMD / Through-hole
  • High-frequency EMI suppression
  • Complies with FCC/VDE standards
Applications
  • Noise filtering equipment
  • Amplifiers
  • Switching regulators
  • Power supplies
  • Triac/SCR control circuits
  • Modems, PDP/LCD/TV converters
  • Mobile wireless devices, DC-DC converters
  • Cordless phones, car radios, GPS devices
Electrical specification
Parameter Value
Impedance (@25MHz) 115Ω Min
Impedance (@100MHz) 170Ω Min
DCR 15mΩ Max
Rated voltage 50V Max
Max. Current 6.0A

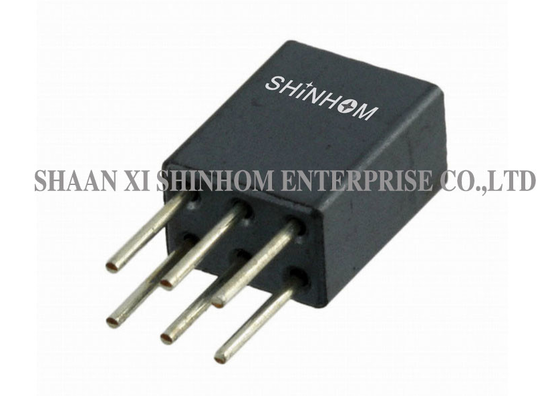

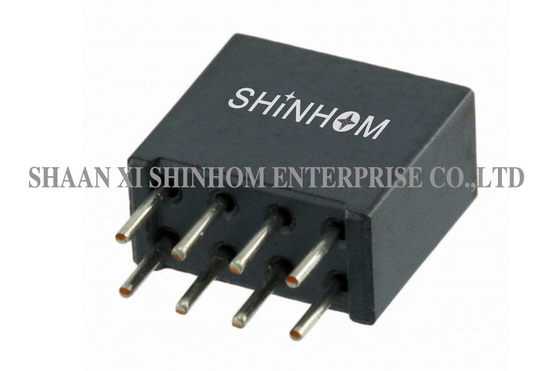

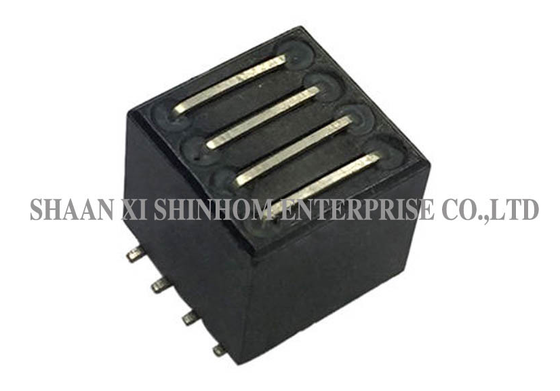

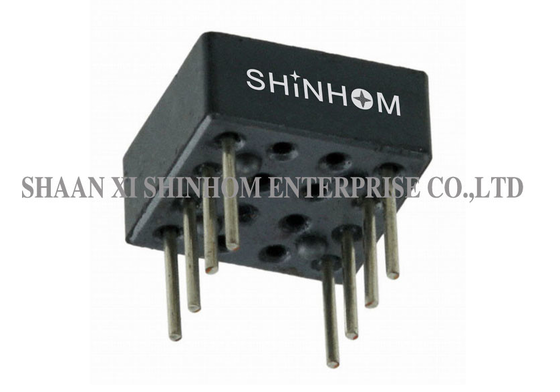

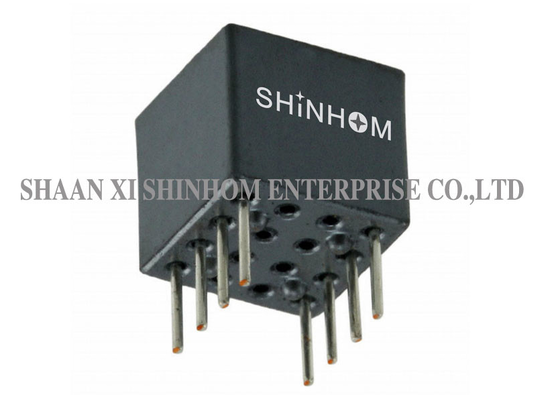

Ferrite Bead Inductor for EMI Suppression and Noise Filtering

For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.

Ferrite Bead Inductor for EMI Suppression and Noise Filtering

FAQ

Q: What is the working principle of a ferrite bead?

A: A ferrite bead presents low impedance (acting like an inductor) at low frequencies, allowing signals to pass through. At high frequencies, it presents high impedance, converting high-frequency noise energy into heat and dissipating it, effectively suppressing high-frequency EMI noise.

Q: How to choose between SMD and through-hole ferrite beads?

A: SMD type is suitable for automated SMT production lines, ideal for high-volume production and high-density PCB layouts. Through-hole type is suitable for wave soldering, allowing easy manual soldering and prototyping. Please choose based on your production process and PCB design.
