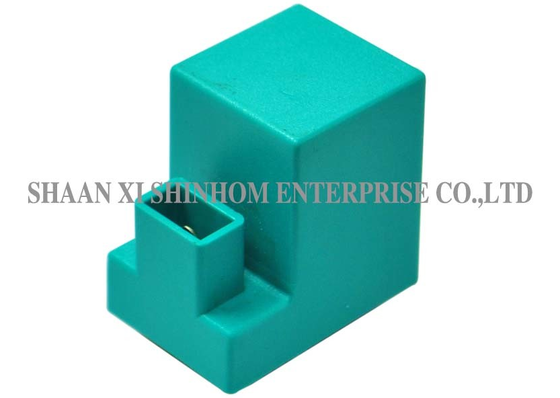

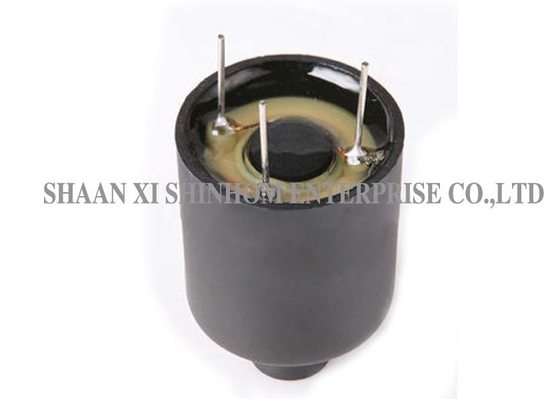

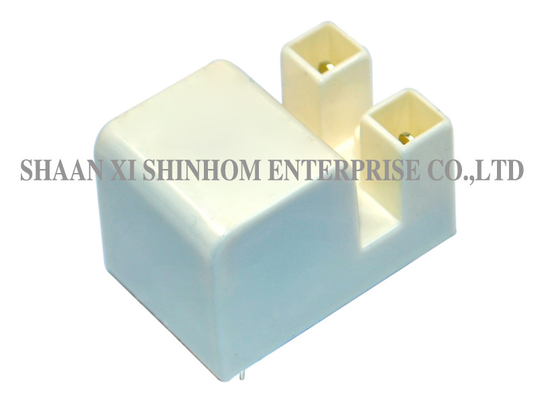

4 to 7KV High Voltage Ignition Transformer Ferrite Core Flyback for Gas Oil Burners

The 4 to 7KV high-voltage ignition transformer is manufactured using high-quality ferrite cores and advanced flyback winding processes, specifically designed for gas/oil burner ignition systems, ensuring stable high-voltage output and reliable ignition. The product features a robust and reliable structure and supports custom specifications. It complies with RoHS environmental requirements. It is suitable for gas/oil burners, ozone generators, and small engines. It is an ideal choice for flyback applications in industrial ignition and high-voltage conversion.

Features:

• Input voltages: 12~24V
• Output voltage: 4,000V ~ 7000V
• Ignition coils and custom-made transformers
• High voltage trigger transformers ozone generator for industrial and appliances
• Ignition coils for gas and oil burners
• Custom-made transformers for a number of applications
• High-voltage transformer types: power, pulsed
• High voltage ignition transformer inductor, designed for small engine trigger, with RoHS mark

Electrical specification:

• Inductance: Pin1-4: 12uH±20%@1KHz,0.03V
• Inductance: Pin2-3: 212mH±20%@1KHz,0.03V
• Turns ratio: Sec:Pri=151 Ref
• DCR: Pin1-4: 0.1Ω±10%
• DCR: Pin2-3: 526Ω±10%
• Operating temperature: -20℃ to +85℃

Primary Competitive Advantages:

• Experienced Staff
• Green Product
• International Approvals
• Prompt Delivery
• Quality Approvals
• Small Orders Accepted

Notes: More products can be customized

FAQ

Q: What is the typical lead time for mass orders?

A: Mass order lead time is generally 2-8 weeks. Custom products will be confirmed separately. The specific lead time is subject to confirmation at the time of order.

Q: What quality certifications does this product provide?

A: This product carries RoHS certification. For other certification documents such as UL and CE, please contact our sales team for confirmation.

Q: Do you provide technical support and selection recommendations?

A: Yes. We have a professional technical team that can provide selection recommendations and customisation solutions based on customer application scenarios and circuit requirements.
