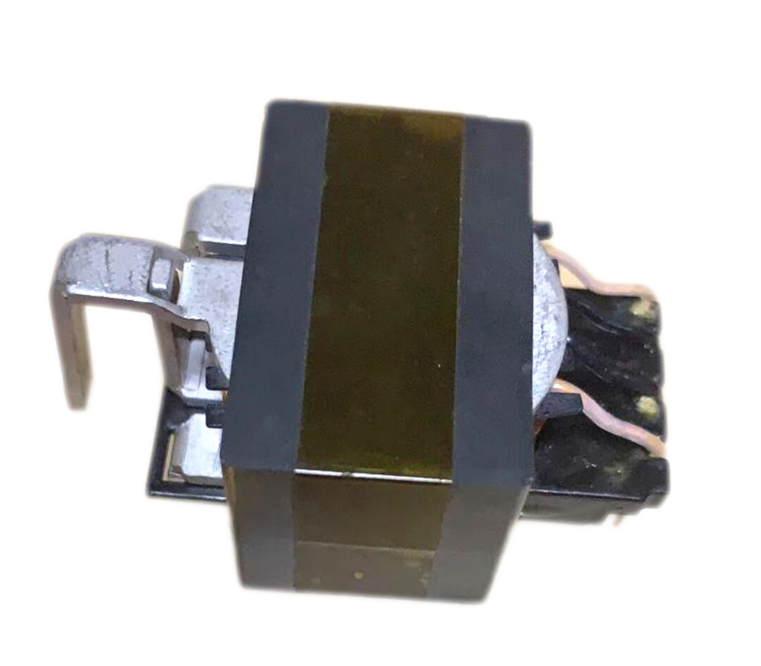

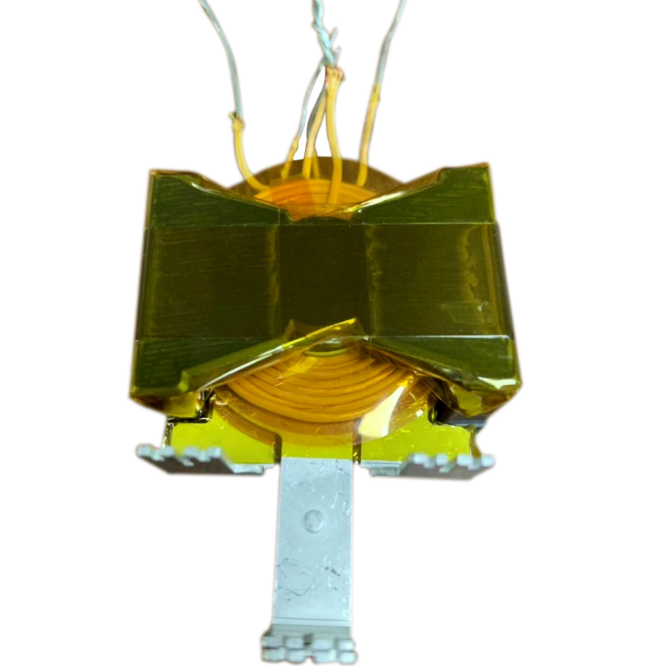

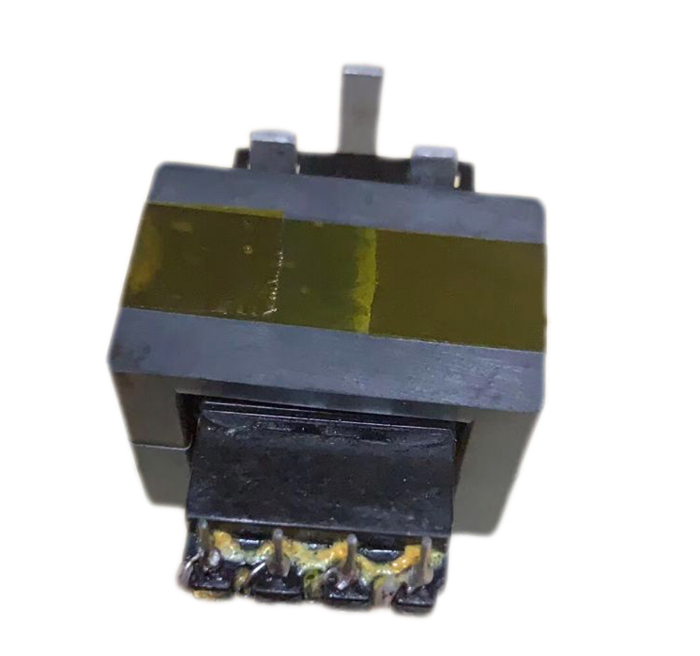

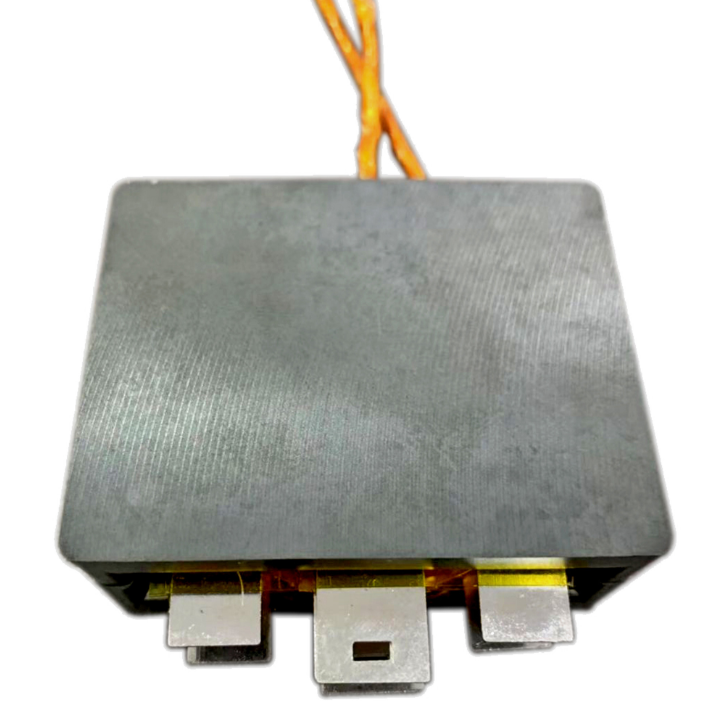

High Isolation Planar Switching Power Transformer for Telecommunication Equipment

This planar transformer is manufactured using high-quality core materials and advanced PCB winding processes, specifically designed for DC-DC converters and telecommunication equipment, ensuring high efficiency, high power density, and low leakage inductance.The product features a robust and reliable structure with a low-profile surface-mount design and a dedicated heat dissipation clip. It meets 1500VDC isolation and wide operating temperature requirements.It is suitable for DC-DC converters, industrial control systems, and automotive electronics. It is an ideal choice for planar transformer applications in switching power supplies and high-frequency conversion.

Features

• Power – 10W to 120KW

• High efficiency

• Isolation voltage – 1500VDC

• Operating temperature – -40 to +125°C

• Leakage inductance – below 0.2%

• Minimal EMI

• High creepage distance

• Suitable for all SMPS topologies

Applications

• DC-DC converters

• Forward, full-bridge, half-bridge, and push-pull DC-DC converters

• Telecommunication equipment

• Industrial control systems

• Automotive and heavy-duty vehicle systems

• High-speed railway

• Rail transit

• Aircraft and marine vessels
