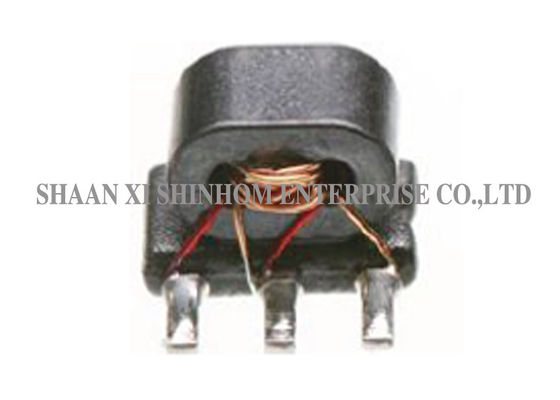

Light Weight RF Isolation Transformer Reliable For VHF / UHF Transmitters

Name: Light Weight RF Isolation Transformer Reliable For VHF / UHF Transmitters
Brand: Shinhom
SKU: RF5S-2500
Price: 1.00 USD
Availability: InStock
Rating: 5 (171 reviews)

Large Image : Light Weight RF Isolation Transformer Reliable For VHF / UHF Transmitters Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	RF5S-2500

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Frequency:	50-1250MHz	Characteristic Impedance:	75Ω
RF Power:	0.25W	DC Current:	30mA
Operating Temperature:	-40℃ To 85℃	Type:	SMT Balun Transformer
High Light:	radio frequency transformer , rf balun transformer

1: 1 Transmission line transformer,RF Balun transformer,50 - 1250MHz,75 Ohm Characteristic Impedance,0.25W

Features:

1: 1 CT Impedance
75Ω Characteristic Impedance
RF power: 0.25W
DC current: 30mA
Frequency: 50 to 1250 MHz
Insertion loss: 1.3dB Max
Input Return loss: 11.0dB Min

Applications:

For broadband and wireless communications
For VHF/UHF receivers/transmitters and push-pull amplifiers

ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

Frequency: 50-1250MHz
Operating temperature: -40℃ to 85℃
Storage temperature: -55℃ to 100℃

Parameter	Test Conditions	Units	Min	Typ	Max
Main line Loss(out1)	50-1250MHz	dB	－	0.4	1.0
Main line Loss(out2)	50-1250MHz	dB	－	0.7	1.5
Amplitude Balance	50-1250MHz	dB	－	±0.5	±0.5
Phase Balance	50-1250MHz	Degrees	－	±2.5	±6.0
Input Return Loss	50-1250MHz	dB	16.0	25.0	－
