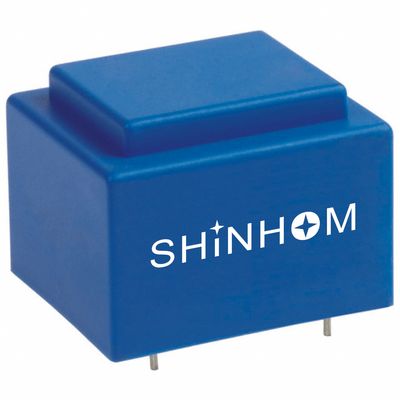

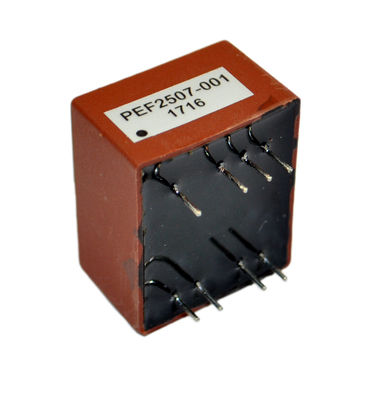

Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz

Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz
Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz

Large Image :  Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz Get Best Price

Product Details:
Place of Origin: China
Brand Name: shinhom
Certification: RoHs
Model Number: PE30
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4-8 weeks
Payment Terms: T/T
Supply Ability: 1000000/month
Detailed Product Description
Input Voltage: 230Vac/115Vac/115Vac*2 Output Voltage: 12Vac
Power: 3.2VA Frequency: 50Hz/60Hz
Weight: 140g Hi-Pot: 4KV
High Light:

linear transformer

,

low frequency transformer

Low frequency transformer encapsulated 12v pcb transformer,Epoxy encapsulated transformers



Characteristics:

  1. acuum epoxy resin encapsulated,100℃/6hours High temperature aging,long woking life 20 years, and with high delectric strength.
  2. Adopt superior quality Silicon steel sheet, with low temperature riseand high efficiency.
  3. PBT Engineering plastics,environmental protection,inflaming retarding Non-defrmation of 120 degrees.
  4. Reasonable structure,convenient installation,low noise,strong earthquake,airtight waterproof,moistureproof.
  5. Work temperature:-30℃~+70℃
  6. Insulation grade:B grade(130℃)
  7. UL94-V0
  8. Dielectric strength:4000V AC/min 5mA

Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz 0



Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz 1



Note: Product specifications can be customized.

Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz 2Electric Encapsulated Power Transformer Small Size 3.2VA Power 50Hz / 60Hz 3
