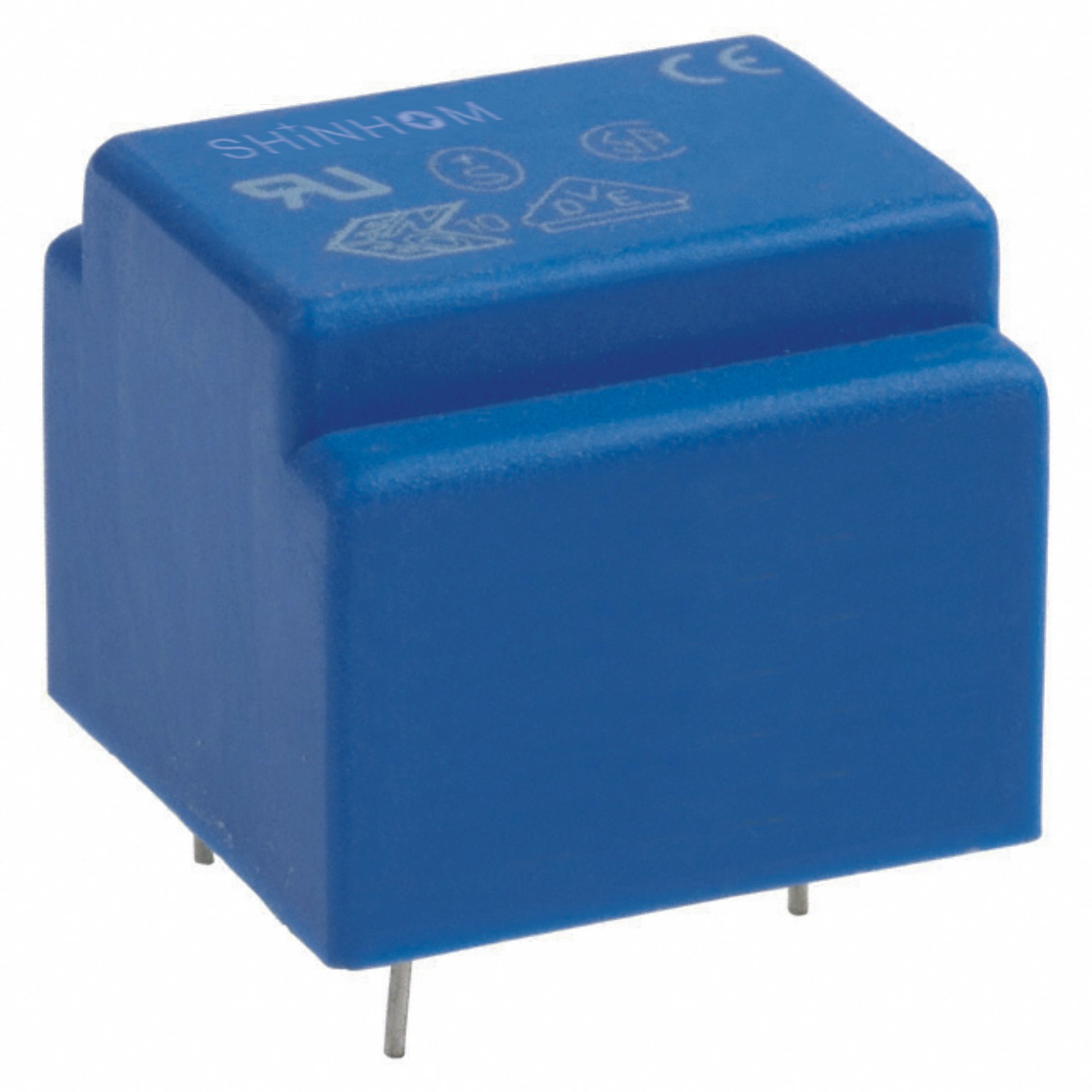

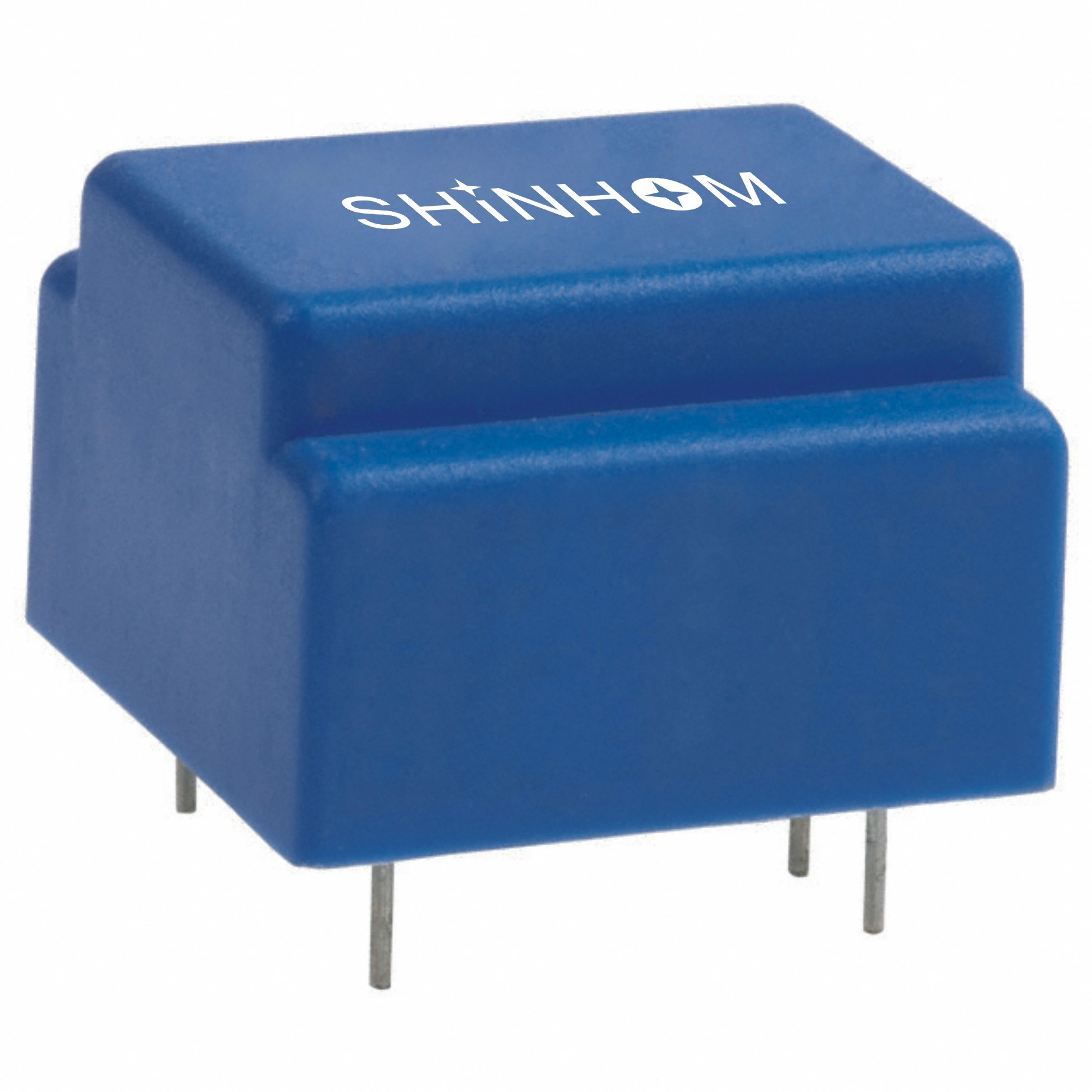

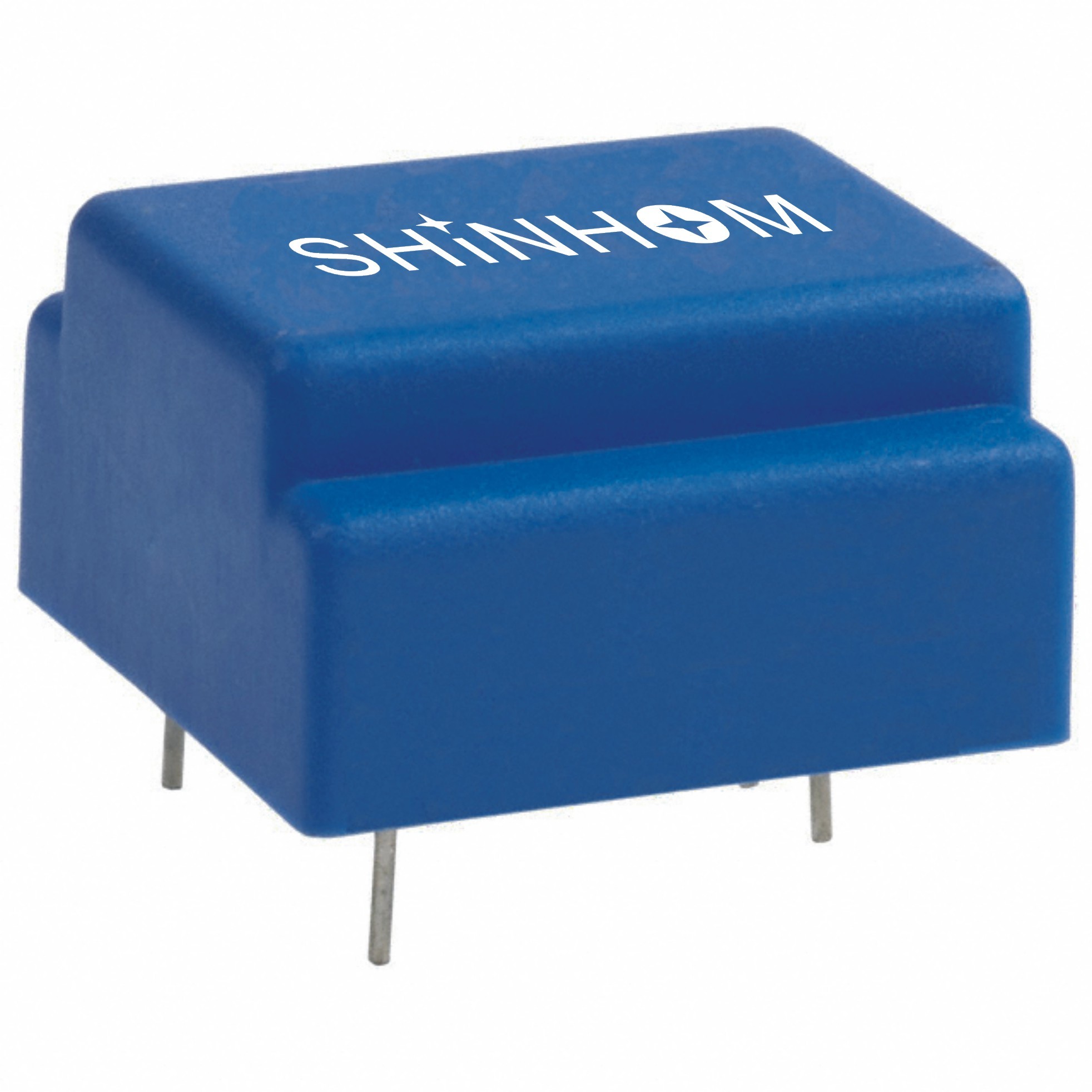

Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac

Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac
Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac

Large Image :  Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac Get Best Price

Product Details:
Place of Origin: China
Brand Name: shinhom
Certification: RoHs
Model Number: PE42
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4-8 weeks
Payment Terms: T/T
Supply Ability: 1000000/month
Detailed Product Description
Product Name: Encapsulated Transformer Input Voltage: 230Vac/115Vac
Output Voltage: 12Vac Power: 5VA/6VA/8VA/9VA/10VA
Certifications: SGS/RoHs Coil Structure: Toroidal
High Light:

linear transformer

,

low frequency transformer

New Electric Power pcb mount encapsulated AC transformer EI42 5VA/6VA/8VA/9VA/10VA



Features:

  • Encapsulated Power Transformer with High Dielectric Strength, Available in Various Voltages
  • Frequency 50/60HZ,
  • Supply voltage 115V-230V by series / parallel connection
  • Potted under vacuum
  • Dielectric strength 4000Vrms
  • Meet UL94V-0 flammability standards
  • Ambient temperature (ta): 70°C
  • Temperature class: Class B (130°C)
  • Heat-resistance 130℃
  • Low profile encapsulated power transformer
  • Vacuum epoxy resin molded encapsulated power transformer
  • PCB mounted encapsulated power transformer
  • Water-resistant power transformer
  • Different voltages are available
  • Power range From 0.35W to 40W
  • Well overloaded capacity
  • High density installation with good shielding quality
  • Inherently energy limited
  • Resin: class B IEC 85 (20,000 hours testing to IEC 216)
  • Standards: EN61558 and EN60950
  • Compliant with CE standards
  • Encapsulated toroidal power transformer
  • Encapsulated pulse power transformer
  • Encapsulated signal isolated transformer
  • Encapsulated power transformer EE20x4, EE20X6 and EE20X10
  • Encapsulated power transformer EI30X5, EI30X10.5, EI30X12.5, EI30X15.5 and EI30X18
  • Encapsulated power transformer EI30X23, EI38X14, EI42X14,EI42X20,EI48X16, EI48X20, EI54X18 and EI60X30
  • Encapsulated power transformer UI30,UI39,UI48
  • Custom design available
  • Common Applications:
  • Medical equipments, Industrial equipments/controls, Test equipment , Industrial computers, Telecom , Wave carrier filter, Power transformer and Aux power transformer , Alarm application

Toroidal Coil Structure Encapsulated Power Transformer Pcb Mount 230Vac / 115Vac 0





Note: Product specifications can be customized.
