Ac Power Supply Encapsulated Power Transformer 12VA With 50 / 60Hz Frequency

China Ac Power Supply Encapsulated Power Transformer 12VA With 50 / 60Hz Frequency supplier
Ac Power Supply Encapsulated Power Transformer 12VA With 50 / 60Hz Frequency supplier Ac Power Supply Encapsulated Power Transformer 12VA With 50 / 60Hz Frequency supplier Ac Power Supply Encapsulated Power Transformer 12VA With 50 / 60Hz Frequency supplier

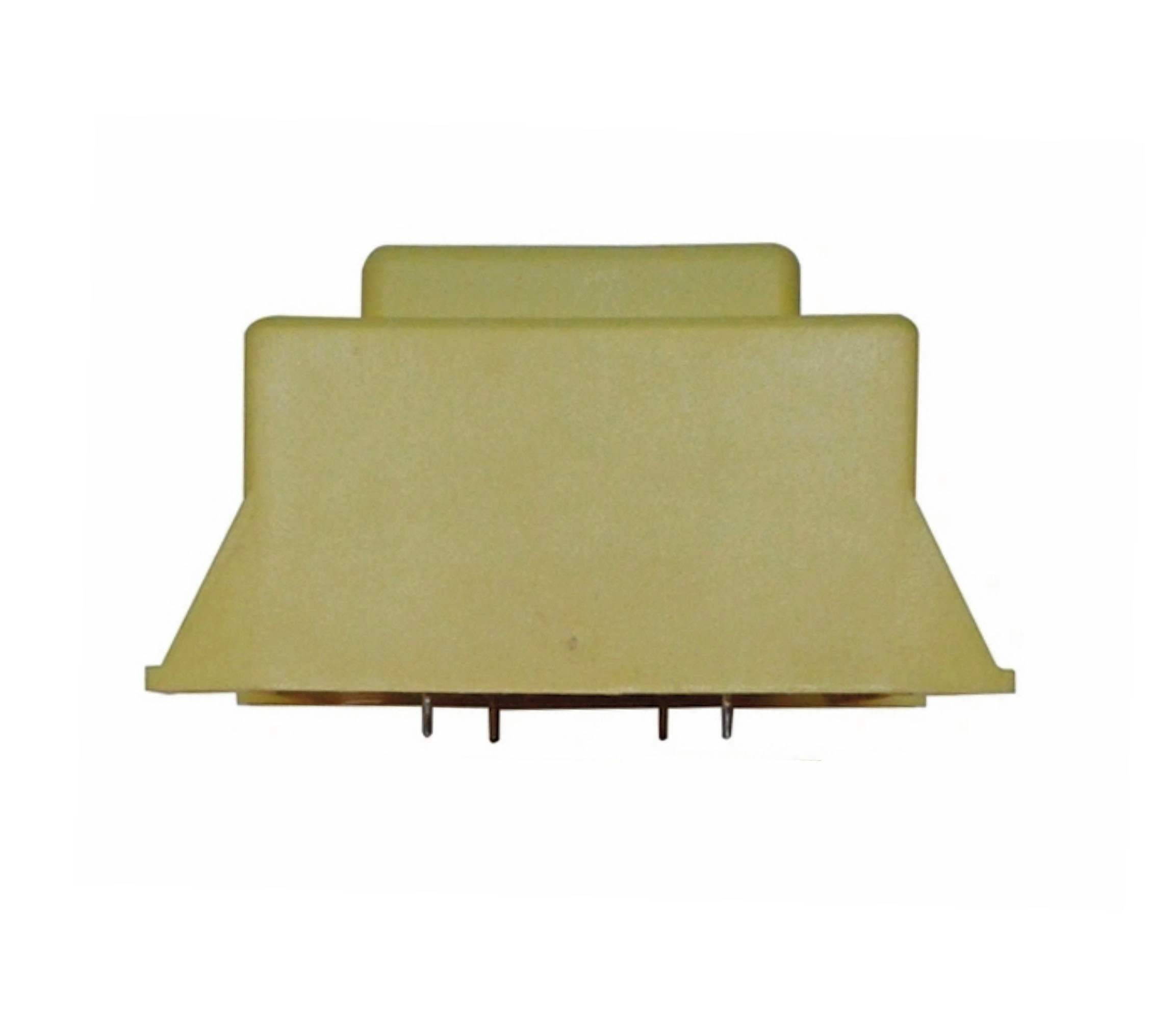

Large Image :  Ac Power Supply Encapsulated Power Transformer 12VA With 50 / 60Hz Frequency

Product Details:

Place of Origin: China
Brand Name: shinhom
Certification: RoHs
Model Number: PE48

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4-8 weeks
Payment Terms: T/T
Supply Ability: 1000000/month
Contact Now
Detailed Product Description
Product Name: Encapsulated Transformer Input Voltage: 230Vac
Working Frequency: 50/60Hz Output Voltage: 12Vac
Power: 12VA Certifications: SGS/RoHs

EI48 12V,12VA Encapsulated Transformer for Power Supply,ac transformer





Electrical specification:

  • Power: 12VA
  • Input voltage: 220V
  • Frequency: 50/60Hz
  • Load output voltage: 12V
  • Operating temperature: -25℃ to +85℃
  • Storage temperature: -25℃ to +85℃

Ac Power Supply Encapsulated Power Transformer 12VA With 50 / 60Hz Frequency



Features:

  • Encapsulated Power Transformer with High Dielectric Strength, Available in Various Voltages
  • Frequency 50/60HZ,
  • Potted under vacuum
  • Dielectric strength 4000Vrms
  • Meet UL94V-0 flammability standards
  • Ambient temperature (ta): 70°C
  • Temperature class: Class B (130°C)
  • Heat-resistance 130℃
  • Low profile encapsulated power transformer
  • Vacuum epoxy resin molded encapsulated power transformer
  • PCB mounted encapsulated power transformer
  • Water-resistant power transformer
  • Different voltages are available
  • Power range From 0.35W to 40W
  • Well overloaded capacity
  • High density installation with good shielding quality
  • Inherently energy limited
  • Resin: class B IEC 85 (20,000 hours testing to IEC 216)
  • Standards: EN61558 and EN60950
  • Compliant with CE standards
  • Encapsulated toroidal power transformer
  • Encapsulated pulse power transformer
  • Encapsulated signal isolated transformer
  • Encapsulated power transformer EE20x4, EE20X6 and EE20X10
  • Encapsulated power transformer EI30X5, EI30X10.5, EI30X12.5, EI30X15.5 and EI30X18
  • Encapsulated power transformer EI30X23, EI38X14, EI42X14,EI42X20,EI48X16, EI48X20, EI54X18 and EI60X30
  • Encapsulated power transformer UI30,UI39,UI48
  • Custom design available
  • Common Applications:
  • Medical equipments, Industrial equipments/controls, Test equipment , Industrial computers, Telecom , Wave carrier filter, Power transformer and Aux power transformer , Alarm application



Note: Product specifications can be customized.
