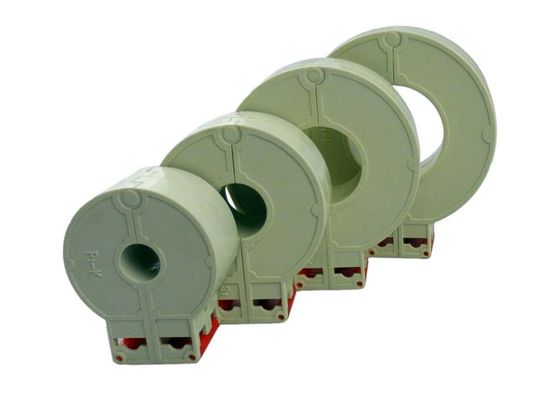

IEC60076 Zero Sequence Current Sense Transformer Active Type

Name: IEC60076 Zero Sequence Current Sense Transformer Active Type
Brand: Shinhom
SKU: HKC Series
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (110 reviews)

Large Image : IEC60076 Zero Sequence Current Sense Transformer Active Type Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Model Number:	HKC Series

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	10000/MONTH

Contact Now

Detailed Product Description

Certification:	CE IEC RoHS	Name:	Hall Effect Current Sensor/Sense Transformer Transducer
Magnetic Circuit Structure:	Single Stage Type	Voltage Transformation Principle:	Electromagnetic Type
Installation:	Active Type	Standard:	IEC60076
High Light:	Electromagnetic Current Sense Transformer , IEC60076 Current Sense Transformer , 1500Hz Current Sense Transformer

Zero Sequence Current Sensor/Sense Transformer Transducer With Operation Current Of 0 To 2000A

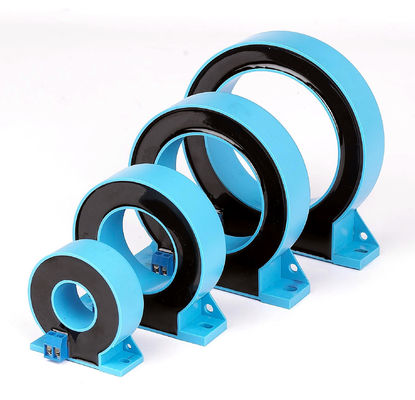

Zero Sequence Current Transformer

It can be used for current monitoring and protection in small current grounding systems, fire leakage systems, three-phase current unbalance detection and other equipment.
Main Feature
Enclosed by epoxy resin, good seismic performance
Perforation method, the hole diameter is from φ12mm-φ260mm, which is convenient for busbar installation
High magnetic permeability material with wide measuring range

Electrical Parameter

Primary Input Current :Iin: 0-5A
Secondary Output Current Io: 0-10mA
Nonlinearity: Precision <±0.2%;
Phase Error<±15'
Frequency : 45-1500Hz
Insulation Resistance: >500mΩ
Power Frequency Withstand Voltage: >3kV

Type	Input Rated Current(A)	Output Rated Current (mA)		NonLinearity		Second Load(Ω)	Power Frequency Withstand voltage (V)
			Max Rated Times	Precision(±%)	Phase Error
				Precision(±%)	(±')
HKC2150-2B	0~5	0~10	2	0.2	30	≤200	≥3000
HKC21113B	0~5	0~10	2	0.2	30	≤200	≥3000
HKC21125B	0~5	0~10	2	0.2	30	≤200	≥3000
HKC2174B	0~5	0~10	5	0.2	30	≤500	≥3000
HKC21126B	0~5	0~10	5	0.2	30	≤500	≥3000
HKC21127B	0~5	0~10	5	0.2	30	≤500	≥3000
HKC21117B	0~5	0~10	5	0.2	30	≤1000	≥3000
HKC2197B	0~5	0~10	5	0.2	30	≤1000	≥3000
HKC21144B	0~5	0~10	5	0.2	30	≤1000	≥3000
HKC21163B	0~5	0~10	2	0.2	30	≤300	≥3000
HKC21148B	0~5	0~10	2	0.2	30	≤300	≥3000
HKC21162B	0~5	0~10	2	0.2	30	≤300	≥3000
HKC21166B	0~5	0~10	2	0.2	30	≤300	≥3000
HKC21171B	0~5	0~10	2	0.2	30	≤300	≥3000
HKC21169B	200	500	2	0.5	60	≤10	≥3000
HKC21168B	400	500	2	0.5	60	≤10	≥3000
HKC21105B	800	500	2	0.5	60	≤10	≥3000
HKC21106B	1000	500	2	0.5	30	≤10	≥3000
HKC21107B	2000	500	2	0.5	30	≤10	≥3000
HKC21135B	0~5	0~10	2	0.5	90	≤1000	≥3000
HKC21260B	0~5	0~10	2	0.5	90	≤1000	≥3000
