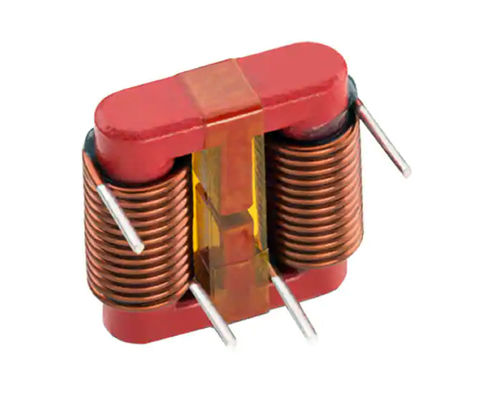

1500Vac Power Line Choke Differential Mode Integrated Coil

1500Vac Power Line Choke Differential Mode Integrated Coil
1500Vac Power Line Choke Differential Mode Integrated Coil 1500Vac Power Line Choke Differential Mode Integrated Coil

Large Image :  1500Vac Power Line Choke Differential Mode Integrated Coil Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SQS1515
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Mode: Common Mode Choke Core: Ferrite Hollow Square
Custom: YES Winding Process: Horizontal
Operating Temperature: -25ºC To +105ºC Hi-Pot: 1500Vac
High Light:

Differential Mode Integrated Coil

,

1500Vac Power Line Choke

,

Ferrite Hollow Square Integrated Coil

Common Mode Power Line Choke . Common Mode Differential Mode Integrated Coil





APPLICATION:

  • LCD TV & Monitor Displays Power Boards
  • Consumer Electric Products & Battery Charger, Printers
  • Personal Computer
  • Switching power supply, Adapter and UPS
  • Computer products
  • LED power supply



Electrical parameters:
  • L: 230uH±40%@10KHz,0.1V
  • DCR: 3.6mΩ Max
  • Rated current: 16.0A Max(Temp. rise 40℃ Max)
  • Rated voltage: 250V Max
  • Hi-Pot: 1500Vac,3mA,3S Coil to Coil
  • Operating temperature: -25℃ to +115℃
  • Storage temperature: -25℃ to +65℃





Measuring instrume1500Vac Power Line Choke Differential Mode Integrated Coil 0nt

     1500Vac Power Line Choke Differential Mode Integrated Coil 1              1500Vac Power Line Choke Differential Mode Integrated Coil 2











Notes: Customized is available



Tag:

common mode power line choke,

common mode toroidal chokes,

common mode inductor
