High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer

Negotiation
MOQ
Negotiation
Price
High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer
Features Gallery Product Description Request A Quote
Features
Specifications
Frequency: High Frequency
Hi-Pot: 4.0KV
Potting: Epoxy
Potting Color: Black/Gray
Pad: 33*24mm
Installation: Pcb
Highlight:

linear transformer

,

low frequency transformer
Basic Infomation
Place of Origin: China
Brand Name: shinhom
Certification: RoHs
Model Number: PEE25
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4-8 weeks
Payment Terms: T/T
Supply Ability: 1000000/month
Product Description

High frequency Encapsulated pcb transformer,Epoxy encapsulated transformers





Electrical specification:

  1. Inductance(1-2): 68uH±15%@1KHz,0.25V
  2. Inductance(3-4): 17uH±15%@1KHz,0.25V
  3. Inductance(6-5): 1.25H±15%@1KHz,0.25V
  4. DCR(1-2): 37mΩ±30%@20℃
  5. DCR(3-4): 55mΩ±30%@20℃
  6. DCR(6-5): 307Ω±30%@20℃
  7. Hi-Pot: 4.0KVac,1mA,2S Pin2,3 to Pin6



Characteristics:

  1. acuum epoxy resin encapsulated,100℃/6hours High temperature aging,long woking life 20 years, and with high delectric strength.
  2. Reasonable structure,convenient installation,low noise,strong earthquake,airtight waterproof,moistureproof.
  3. Work temperature:-30℃~+70℃
  4. Insulation grade:B grade(130℃)
  5. UL94-V0
  6. Dielectric strength:4000V AC/min 5mA

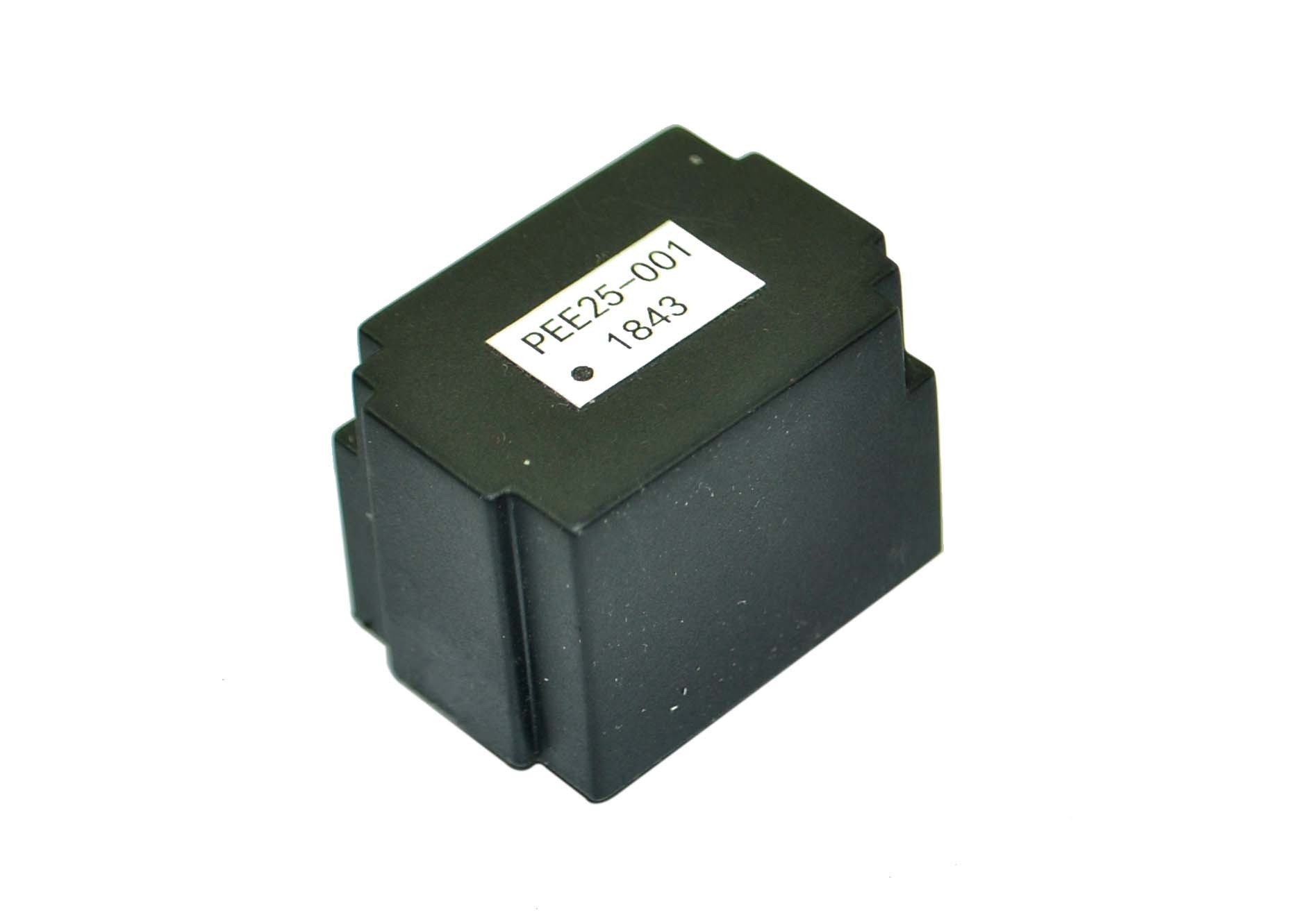

High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer 0



Note: Product specifications can be customized.

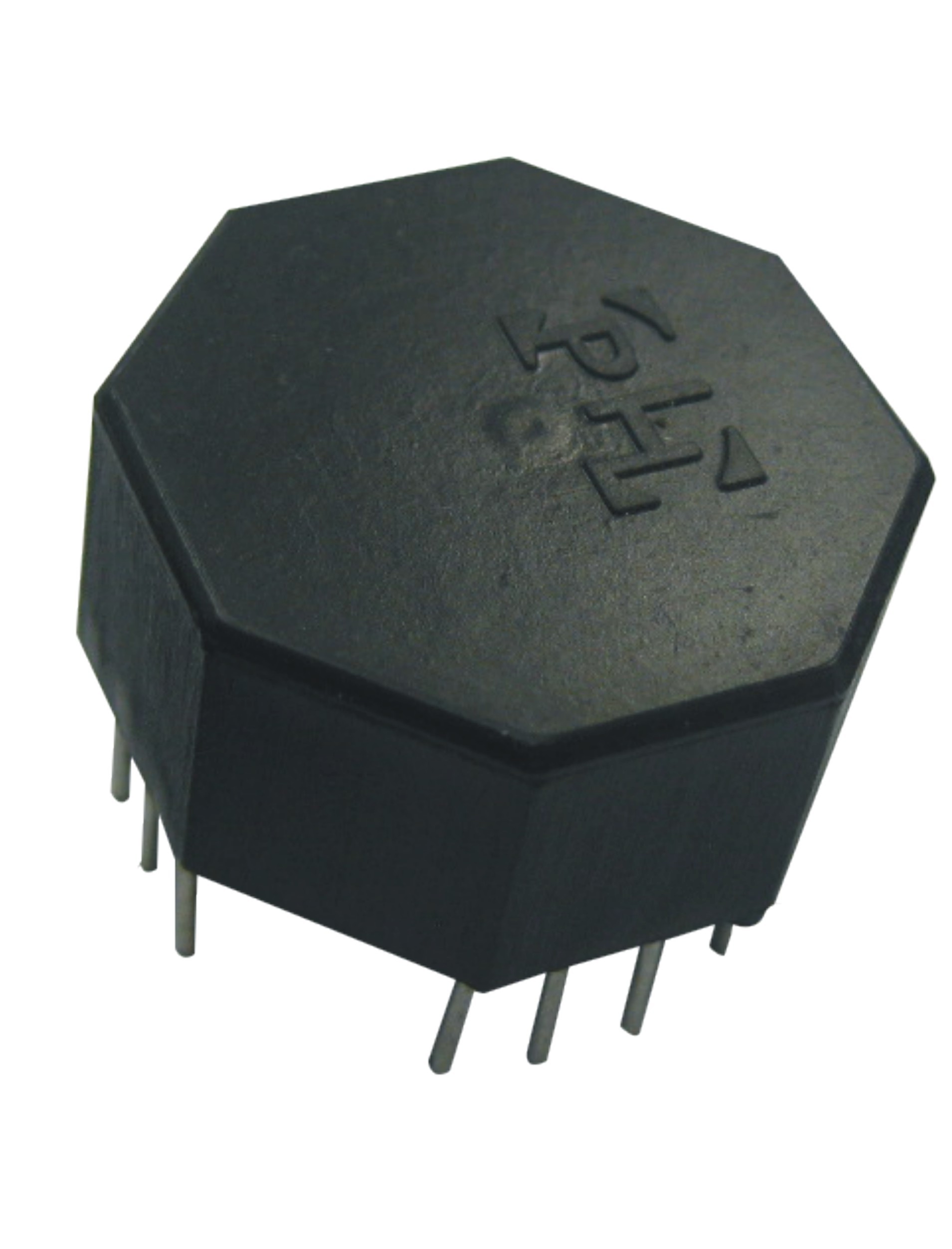

High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer 1High Frequency Encapsulated Pcb Transformer Epoxy Encapsulated Transformer 2
