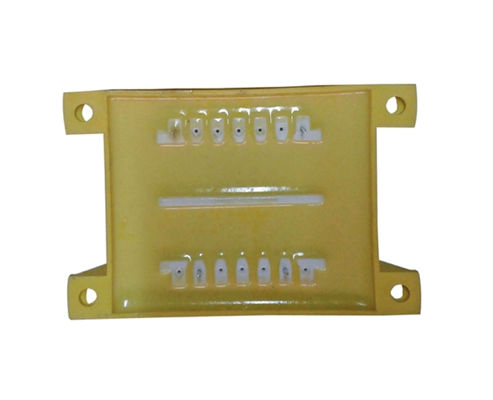

230V Ac Encapsulated Transformer Toroidal Coil Structure RoHs Certification
Product Description
Encapsulated Transformer for Power Supply,ac transformer
Electrical specification:
Pri voltage: 230V±10%
Output: 12V,2.5A
Operating frequency: 50/60Hz
No-load loss: 1.5W Max
Insulation class: B
Power: 30VA
Voltage regulation: 11%Max
Temperature rise: 28℃ Max
Hi-Pot: 3500Vac,1min,5mA Pri to Sec
Operating temperature: -30℃ to +50℃
Features:
Encapsulated Power Transformer with High Dielectric Strength, Available in Various Voltages
Frequency 50/60HZ,
Supply voltage 115V-230V by series / parallel connection
Potted under vacuum
Dielectric strength 4000Vrms
Meet UL94V-0 flammability standards
Ambient temperature (ta): 70°C
Temperature class: Class B (130°C)
Heat-resistance 130℃
Low profile encapsulated power transformer
Vacuum epoxy resin molded encapsulated power transformer
PCB mounted encapsulated power transformer
Water-resistant power transformer
Different voltages are available
Power range From 0.35W to 40W
Well overloaded capacity
High density installation with good shielding quality
Inherently energy limited
Resin: class B IEC 85 (20,000 hours testing to IEC 216)
Standards: EN61558 and EN60950
Compliant with CE standards

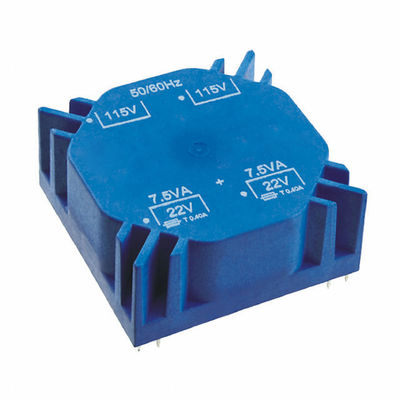

Encapsulated toroidal power transformer
Encapsulated pulse power transformer
Encapsulated signal isolated transformer
Encapsulated power transformer EE20x4, EE20X6 and EE20X10
Encapsulated power transformer EI30X5, EI30X10.5, EI30X12.5, EI30X15.5 and EI30X18
Encapsulated power transformer EI30X23, EI38X14, EI42X14,EI42X20,EI48X16, EI48X20, EI54X18 and EI60X30
Encapsulated power transformer UI30,UI39,UI48
Custom design available
Common Applications:
Medical equipments, Industrial equipments/controls, Test equipment , Industrial computers, Telecom , Wave carrier filter, Power transformer and Aux power transformer , Alarm application
