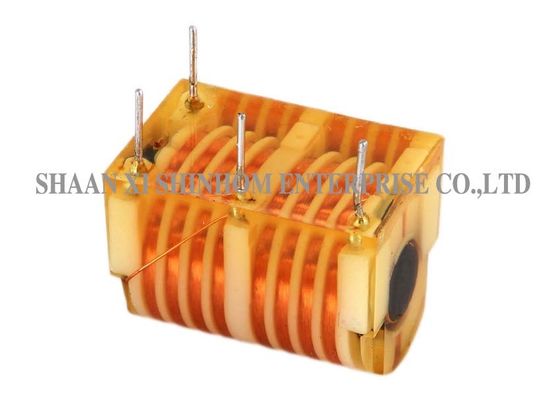

Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System

Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System
Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System

Large Image :  Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HT3825-690
Payment & Shipping Terms:
Minimum Order Quantity: 3000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Core Material: Ferrite Core Output Voltage: 15KV
Type: High Voltage Ignition Coil Usage: High Frequency
Size: 38.9*25.0*25.5mm Turns Ratio: 69:1
High Light:

ignition coil transformer

,

high voltage ignition coil

High voltage ignition transnformer,Voltage up to 15kV oil/gas burn ignition and ozone generator air cleaning system

Features:

  • Ignition coils for gas and oil burners
  • Customized transformers for number of applications
  • High-voltage power and pulsed transformers
  • Customized specifications are accepted



Electrical specification:

  • Inductance: Pin2-1: 12uH±30%@1KHz,0.3V
  • Inductance: Pin4-3: 40mH±10%@1KHz,0.3V
  • Turns ratio:    Sec:Pri=69.5Ref
  • DCR: Pin2-1: 75mΩ±10%
  • DCR: Pin4-3: 81.8Ω±10%



Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System 0



Primary Competitive Advantages:

  • Experienced Staff
  • Green Product
  • International Approvals
  • Military Specifications
  • Prompt Delivery
  • Quality Approvals
  • Small Orders Accepted



Notes: More products can be customized

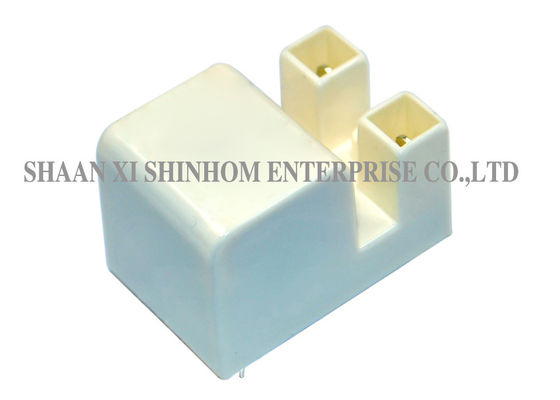

Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System 1

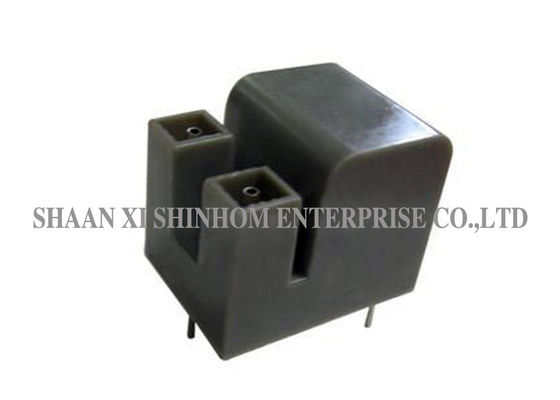

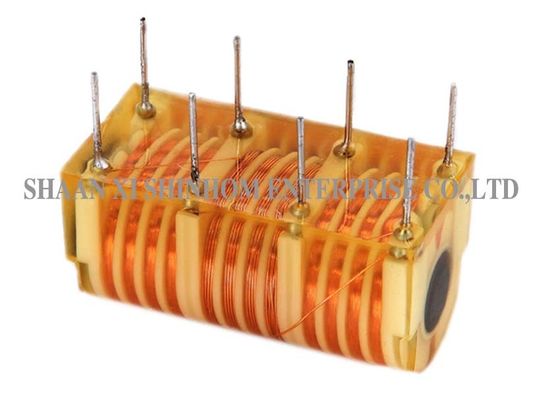

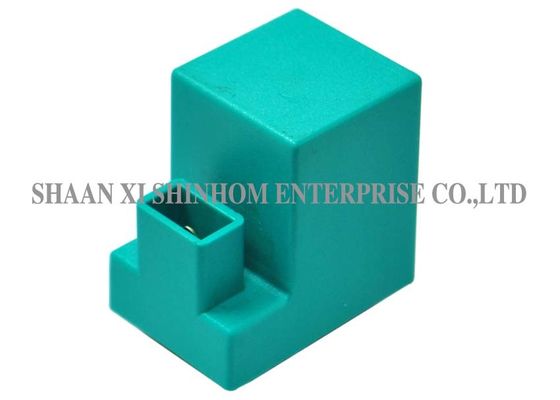

       Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System 2Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System 3Ferrite Core High Voltage Ignition Transformer For Ozone Generator Air Cleaning System 4
