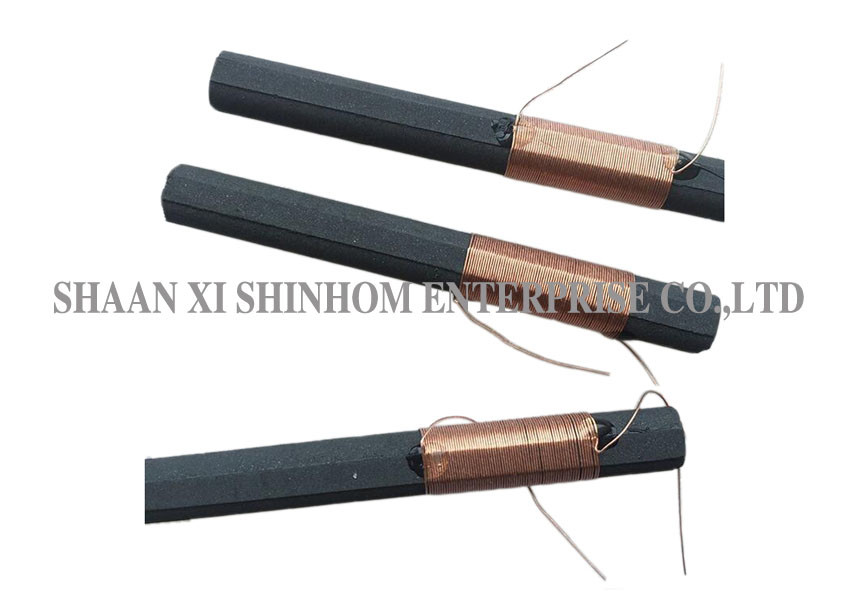

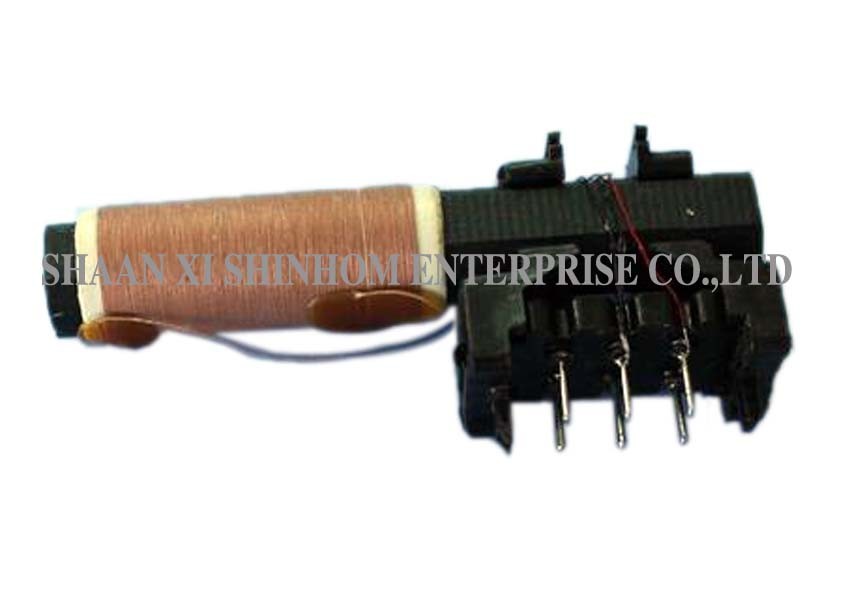

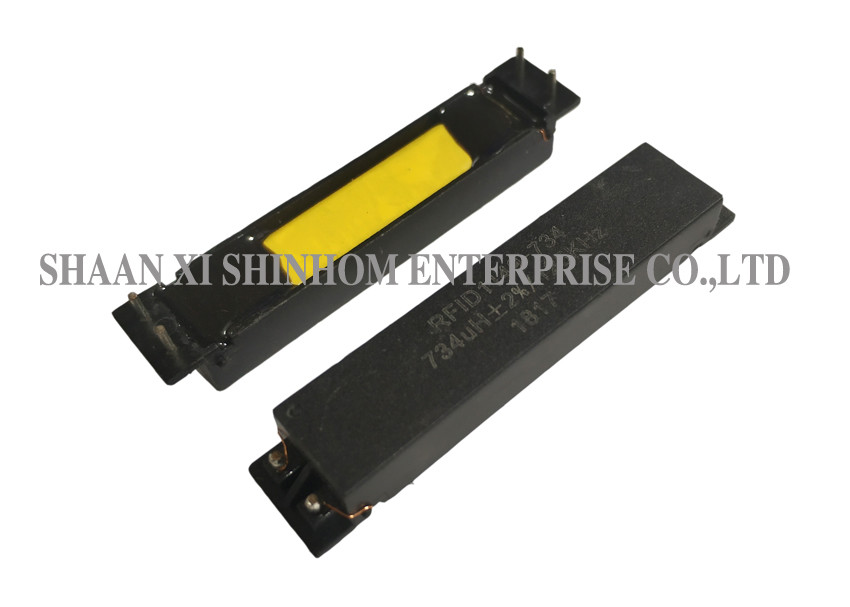

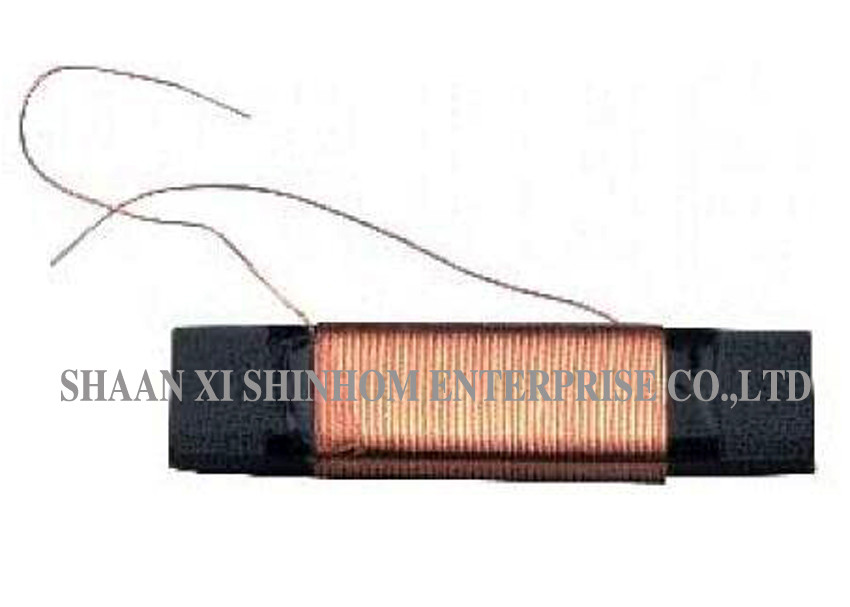

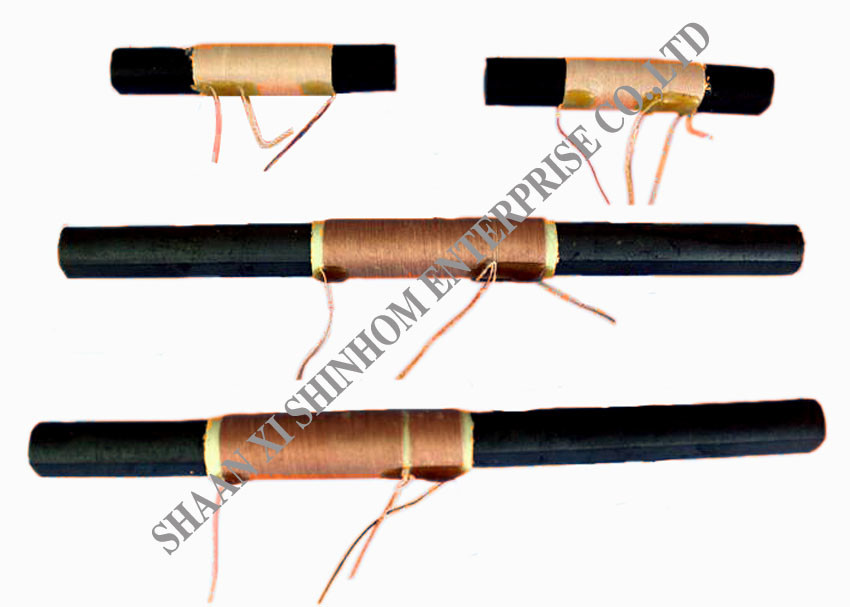

Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range

Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range
Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range

Large Image :  Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RFID1149-734
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Inductance: 734uH Frequency Range: 125~134KHz
Size: 50.8x11.2x6.4mm Type: Antenna RFID Coil
Wire Diamter: 0.04~1.3mm Customized: Customized
High Light:

rfid transponder coil

,

qi wireless charging coil

RFID antenna coils for RFID system and smart IC card application





FEATURES:

  • The smallest emitter antenna coil
  • Various RFID coils structure meet customer specifications:
  • High Q value and wide inductance range
  • Honeycomb type winding with silk copper wire
  • Customized to customer specifications
  • Rated current up to 50A
  • Operating temperature: -55 to +155 °C
  • Wire diameter 0.04mm to 1.3mm
  • RFID coils for access control system RFID antenna
  • RFID cylinder coils
  • RFID coils for smart IC card
  • Wireless charging coils
  • Custom-made are welcome



Electrical specification:

  • L: 734uH±2% @125KHz,1V
  • DCR: 2.8Ω±10%
  • Q: 120 Min@125KHz,1V
  • SRF: 1.7MHz Min
  • Operating temperature: -40℃ to +125℃
  • Storage temperature: -40℃ to +85℃



Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range 0

For More RFID antenna coil, Please Go To Our Website Or Contact Us.

Light Weight RFID Coil Antenna 734uH Inductance Wide Inductance Range 1



Tag:

qi wireless charging coil,

rfid transponder coil,

flat copper wire coil
