Various Size Cylindrical Ferrite Core , Ferrite Toroid Core Small Volume

5000PCS
MOQ
Negotiation
Price
Various Size Cylindrical Ferrite Core , Ferrite Toroid Core Small Volume
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Iron Power Cores
Material: Iron-based Nanocrystalline Core
Specifiction: Various Size
Type: Soft
Composition: Ferrite Magnet
Highlight:

soft iron magnetic core

,

ferrite split core
Basic Infomation
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: KT/KE/KP/DR
Payment & Shipping Terms
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

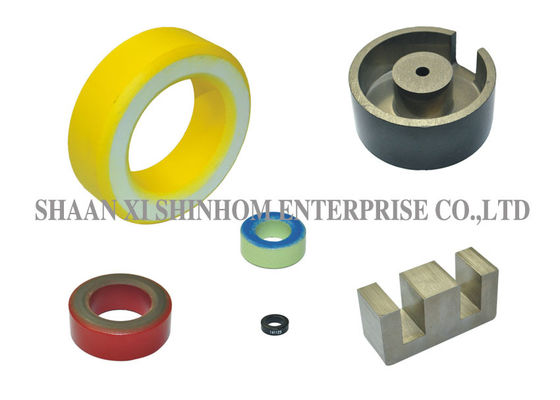

Toroidal type/E type/Cylinder type/Drum type etc. Iron power cores​





Features:

  • Low eddy current losses
  • High satration flux density Bs> 1.56T
  • Application for solar power converter PFC chokes and outputchokes
  • High-speed rail car power system
  • Fe-based nanocrystalline cores
  • Co-based Mag-Amp transformer cores
  • Main materials: Fe-based, nanocrystalline-alloy, Co-base
  • High saturation magnetic induction intensity
  • Small core volume
  • Rectangular structure
  • Core openings
  • Resist DC bias saturated
  • Low loss
  • Excellent temperature stability -55 to 130°C
  • Customized cores sizes and various characteristics are available





Part No. AL nH/N2 A(mm) B(mm) C(mm)
T50-26 Yellow/White 33 12.7±0.5 7.7±0.5 4.83±0.50
T68-26Yellow/White 43.5 17.5±0.5 9.4±0.5 4.83±0.50
T80-26Yellow/White 46 20.2±0.5 12.6±0.5 6.35±0.64
T90-26Yellow/White 70 22.9±0.5 14.0±0.5 9.53±0.64
T94-26Yellow/White 60 23.9±0.5 14.2±0.5 7.92±0.64
T106-26Yellow/White 93 26.9±0.5 14.5±0.5 11.1±0.64
T130-26Yellow/White 81 33.0±0.5 19.8±0.5 11.1±0.64
T150-26Yellow/White 96 38.4±0.5 21.5±0.5 11.1±0.64
T60-52Blue/Green 47 15.2±0.5 8.53±0.5 5.94±0.50
T68-52Blue/Green 40 17.5±0.5 9.40±0.5 4.83±0.50
T80-52Blue/Green 42 20.2±0.5 12.6±0.5 6.35±0.64
T90-52Blue/Green 64 22.9±0.5 14.0±0.5 9.53±0.64
T106-52Blue/Green 95 26.9±0.5 14.5±0.5 11.1±0.64
T130-52Blue/Green 79 33.0±0.5 19.8±0.5 11.1±0.64
T150-52Blue/Green 89 38.4±0.5 21.5±0.5 11.1±0.64



Note: since there are many specifications and varieties of t-type iron powder cores, please put forward specific requirements on shape size and inductance when ordering.



Various Size Cylindrical Ferrite Core , Ferrite Toroid Core Small Volume 0



 Various Size Cylindrical Ferrite Core , Ferrite Toroid Core Small Volume 1
