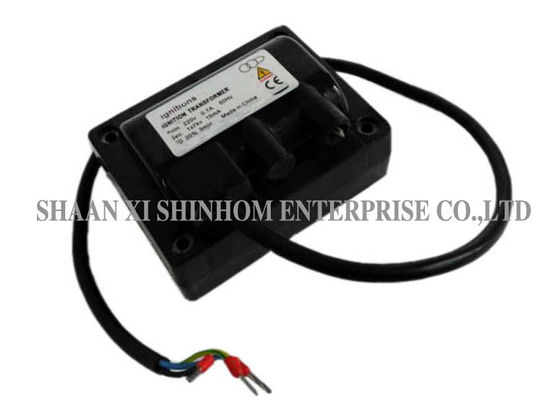

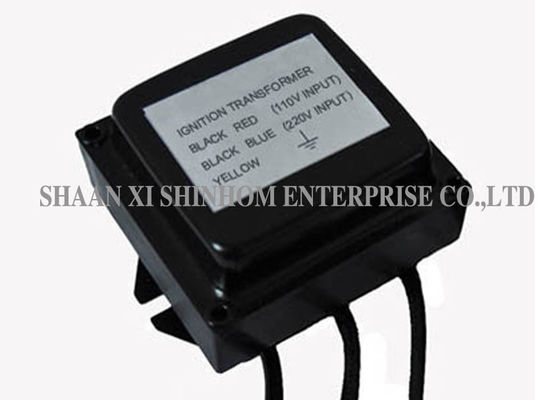

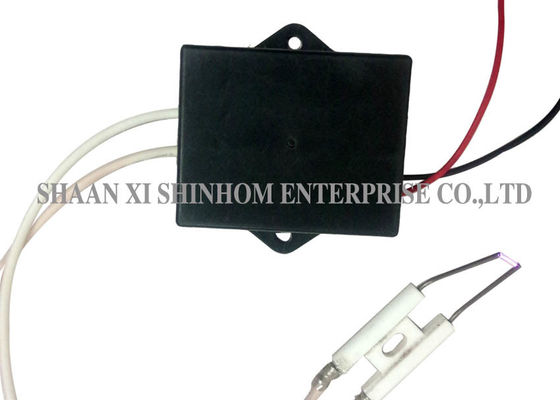

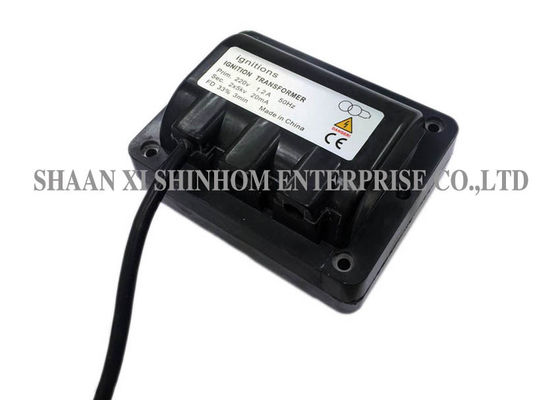

Gas Stove Electronic Ignition Transformer High Voltage 220V Input 2*12KV Output

Name: Gas Stove Electronic Ignition Transformer High Voltage 220V Input 2*12KV Output
Brand: Shinhom
SKU: HT92
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (130 reviews)

Large Image : Gas Stove Electronic Ignition Transformer High Voltage 220V Input 2*12KV Output Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	Shinhom
Certification:	RoHS
Model Number:	HT92

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Carton
Delivery Time:	4~8 Weeks
Payment Terms:	T/T
Supply Ability:	1000000/MONTH

Contact Now

Detailed Product Description

Type:	High Voltage Ignition Coil	Alternate:	33% In 3min
Input:	220V	Operating Frequency:	50Hz
Size:	92 × 70 × 57mm	Ignition Distance:	3 ~ 4mm
High Light:	electronic ignition transformer , ignition coil transformer

**HT92 Series High Voltage Ignition Transformer,Ignition coil transformer for gas stove 220V input,2*12KV output**

High-voltage ignition transformers are widely used for ignition of small burners, fuel gas burners, integrated burners, industrial combustion equipment, and etc.

Features:

Input: 220V,50Hz
Dimensions: 92 × 70 × 57mm
Ignition distance: 3 ~ 4mm
3 minutes ignition efficiency: 33%
Ignition coils and custom-made transformers
High voltage trigger transformers ozone generator for industrial and appliances
Ignition coils for gas and oil burners
Custom-made transformers for a number of applications
High-voltage transformer types: power, pulsed

Electrical specification:

Item No.	Primary Voltage	output	working time
HT92-S07A	220V 0.7A 50Hz	2x4kV 15mA	ED25% 3min
HT92-S07B	220V 0.7A 50Hz	1x7kV 15mA	ED33% 3min
HT92-S08	220V 1.1A 50Hz	1x8kV 15mA	ED33% 3min
HT92-S10	220V 1.4A 50Hz	2x5kV 25mA	ED25% 3min
HT92-F08	220V 1.1A 50Hz	1x8kV 20mA	ED33% 3min
HT92-F10	220V 1.4A 50Hz	2x5kV 25mA	ED25% 3min
HT92-A18	Enter220-240V 30VA 50/60Hz	Output2x12kV Vpp20mA	AB 33% 3min
HT92-A18L	Enter220-240V 25VA 50/60Hz	Output2x12kV Vpp15mA	AB100% 3min
