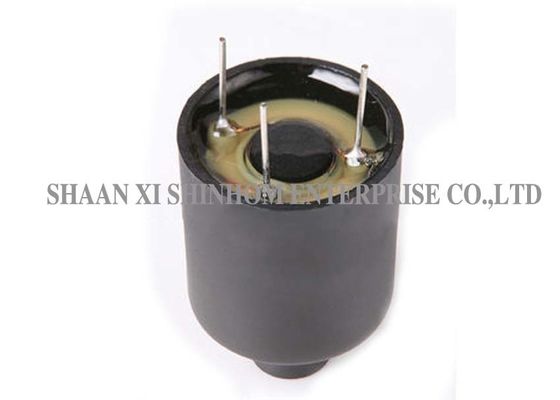

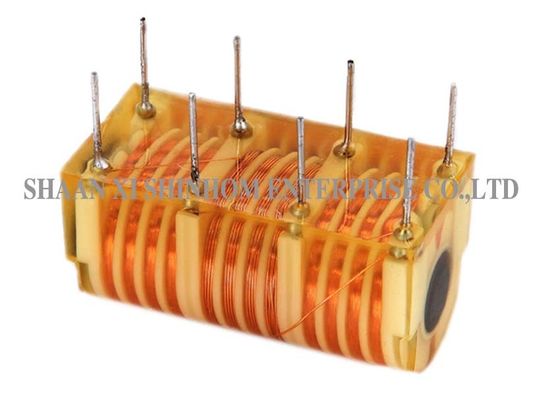

12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer

All Products
Split Core Current Transformer (46)
Current Sense Transformer (45)
High Frequency Transformer (62)
Hall Effect Current Sensor (30)
Dip Power Inductor (39)
Surface Mount Power Inductors (47)
Common Mode Choke (123)
High Current Power Inductors (42)
Chip Inductor (15)
Audio Frequency Transformer (27)
Ethernet LAN Transformer (16)
RF Transformer (18)
Planar Transformer (17)
High Voltage Ignition Transformer (17)
Ferrite Core (33)
Ferrite Bead (18)
RFID Coil Antenna (22)
Encapsulated Power Transformer (12)
I'm Online Chat Now
Certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
China Shaanxi Shinhom Enterprise Co.,Ltd certification
Very professional and good communication during the cooperation .Product is excellent quality and packaged very well. We will continue to order from shinhom again. Very honest, trustworthy and efficient company to deal with.

—— Alexander

Good products ,good communication ,delivery is on time ,Samples available .

—— Kevin

12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer

12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer
12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer

Large Image :  12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: HT1040-291
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Contact Now
Detailed Product Description
Core Material: Ferrite Core R8*28 Output Voltage: 12KV
Type: High Voltage Ignition Coil Usage: High Frequency
Size: 30*21*20mm Turns Ratio: 16:1
High Light:

ignition coil transformer

,

high voltage ignition coil

12kv High Voltage Ignition Transformer Heater/Cooker Electronic Ignition Transformers For Gas/Oil Burners

Features:

  • Ignition coils for gas and oil burners
  • Customized transformers for number of applications
  • High-voltage power and pulsed transformers
  • Customized specifications are accepted
  • High-voltage Custom-made Ignition Transformer
  • High-voltage transformer for ozone generator
  • High voltage ignition transformer inductor, designed for small engine trigger, with RoHS mark



Electrical specification:

  • Inductance: Pin2-1:       705uH±15%@1KHz,0.1V
  • Inductance: Pin4-3:        167mH±15%@1KHz,0.1V
  • Turns ratio:    Sec:Pri=16Ref



12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 0

Primary Competitive Advantages:

  • Experienced Staff
  • Green Product
  • International Approvals
  • Military Specifications
  • Prompt Delivery
  • Quality Approvals
  • Small Orders Accepted



Notes: More products can be customized

12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 1

          12kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 212kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 312kV High Voltage Ignition Transformer , Oil Burner Ignition Transformer 4
