0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current

0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current
0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current 0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current 0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current 0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current

Large Image :  0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RF3S-0059
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
RF Power: 0.25W Characteristic Impedance: 75Ω
Frequency: 5-3000MHz DC Current: 30mA
Operating Temperature: -40℃ To 85℃ Storage Temperature: -55℃ To 100℃
High Light:

rf impedance transformer

,

rf balun transformer

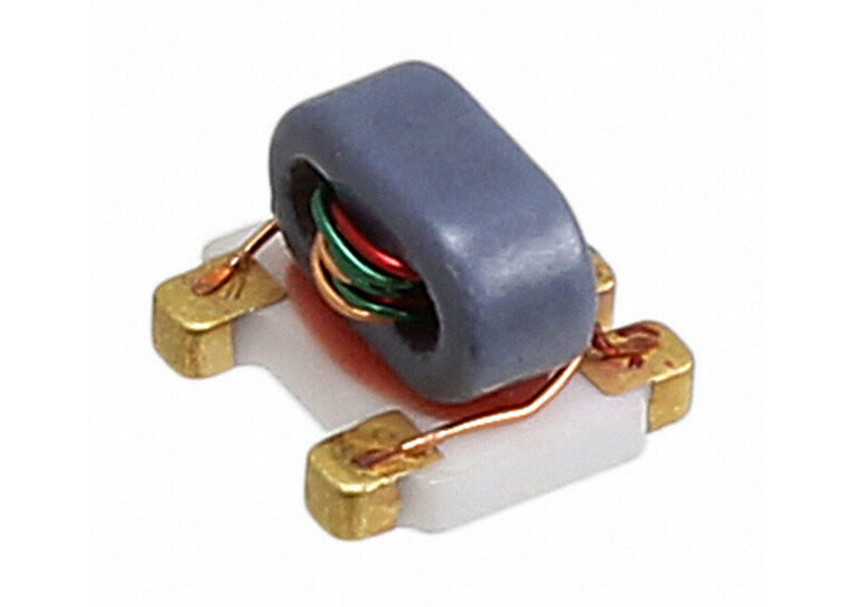

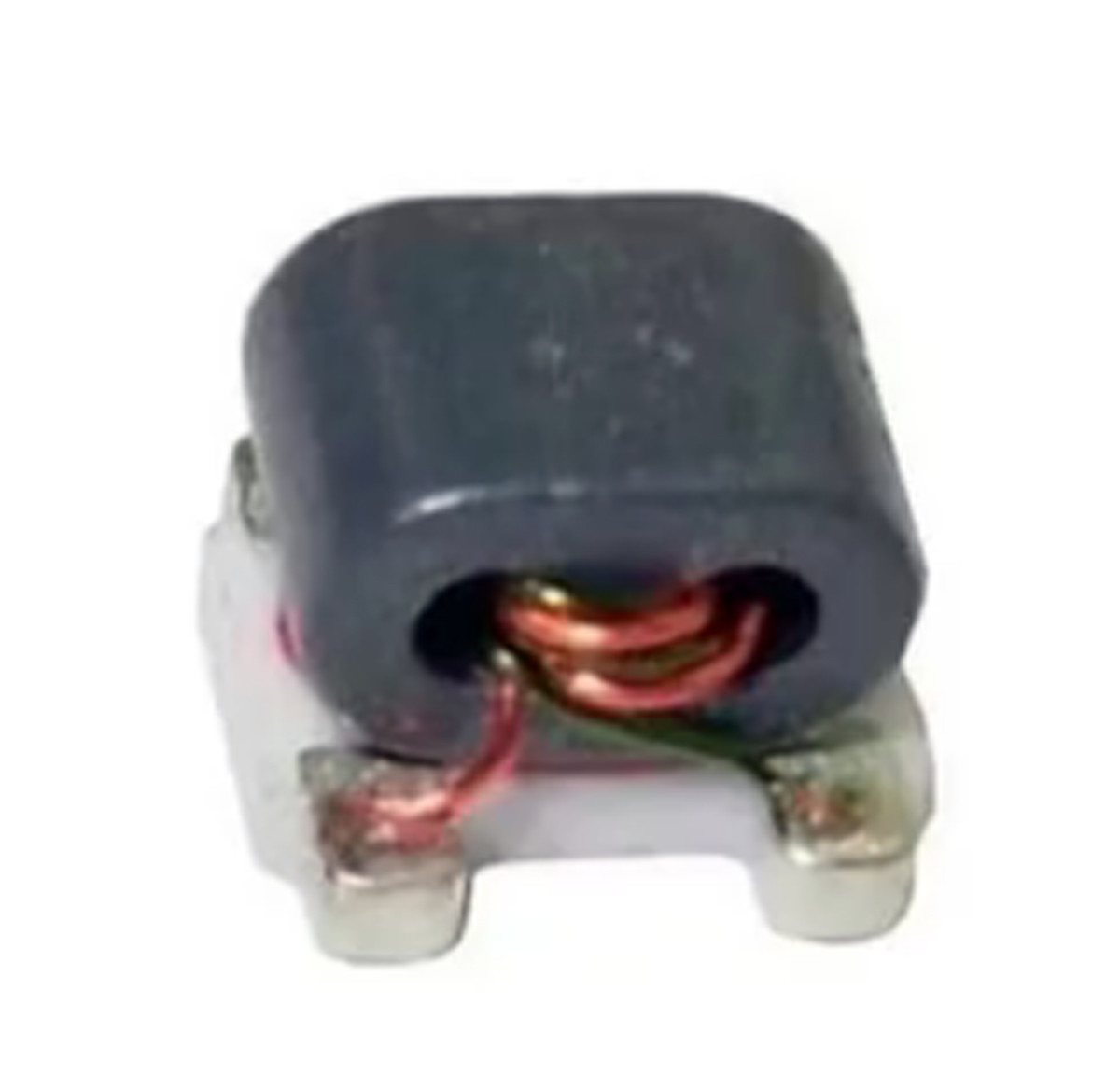

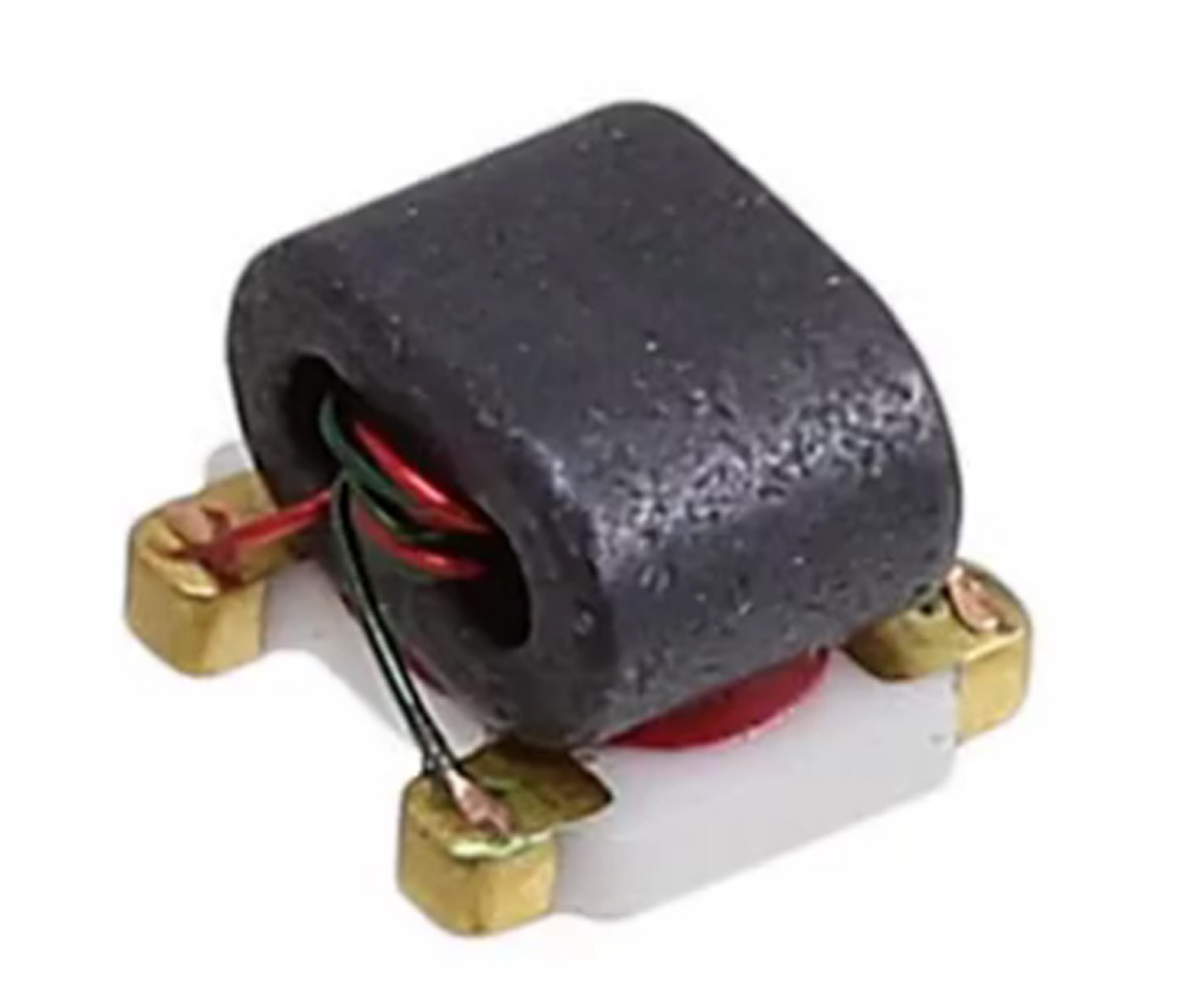

SMD Balun RF Transformers Coils with Enameled Copper Wire, Base Pin Terminal in Surface Mounting



Parameter Test Conditions Units Min Typ Max
Main line Loss(out1) 5-3000MHz dB 1.7 3.5
Main line Loss(out2) 5-3000MHz dB 1.5 3.5
Amplitude Balance 5-3000MHz dB ±0.5 ±1.0
Phase Balance 5-3000MHz Degrees ±2.0 ±18.0
Input Return Loss 5-3000MHz dB 6.0 25.0





0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current 0

0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current 1

0.25W Power RF Transformer 5 - 3000MHz Frequency With 30mA DC Current 2

Features:

  • 1: 1 Impedance
  • 75Ω Characteristic Impedance
  • RF power: 0.25W
  • DC current: 30mA

Applications:

  • For broadband and wireless communications
  • For VHF/UHF receivers/transmitters and push-pull amplifiers

ELECTRONICAL SPECIFICATIONS(25℃,Z=75Ω)

  • Frequency: 5-3000MHz
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -55℃ to 100℃
