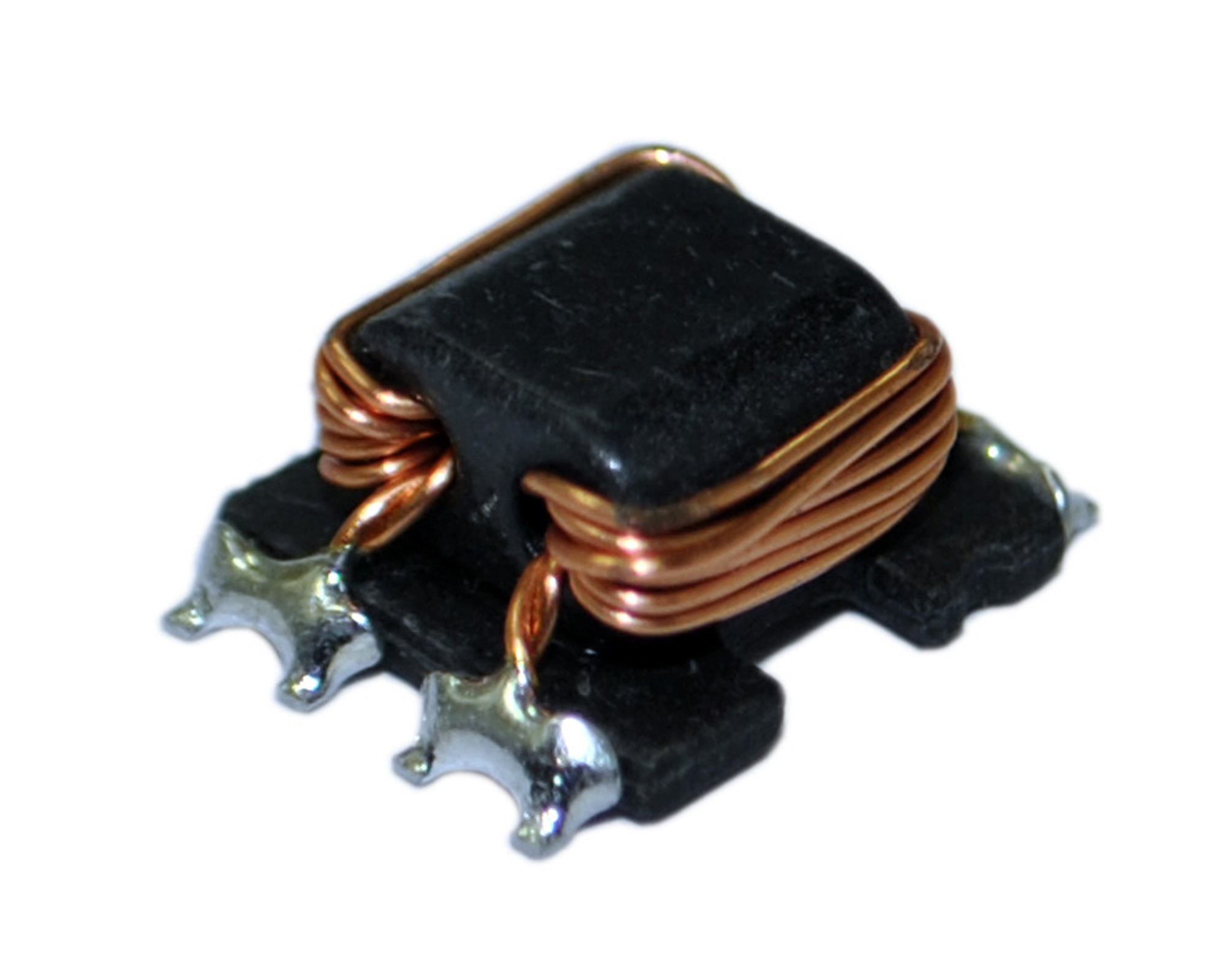

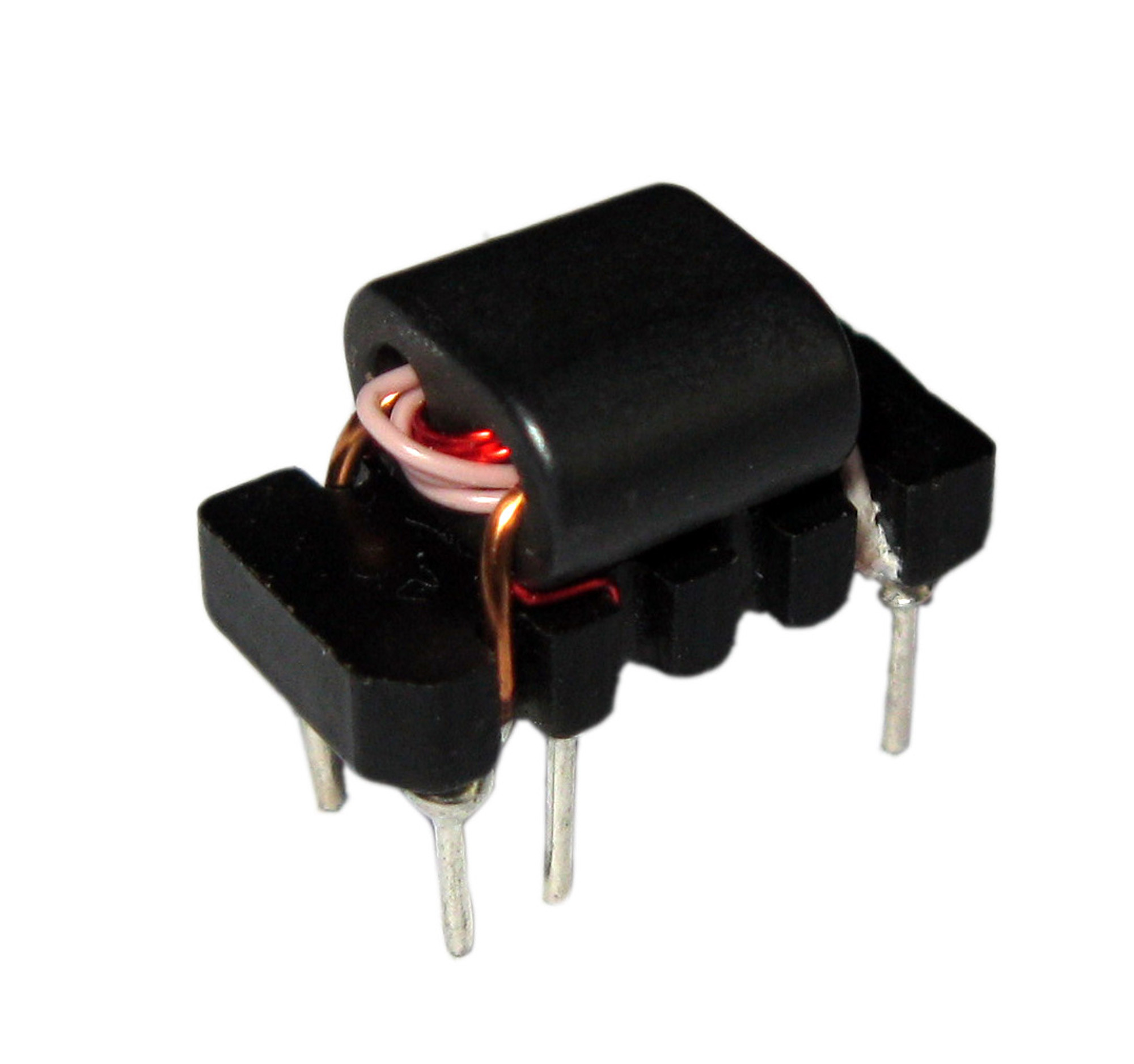

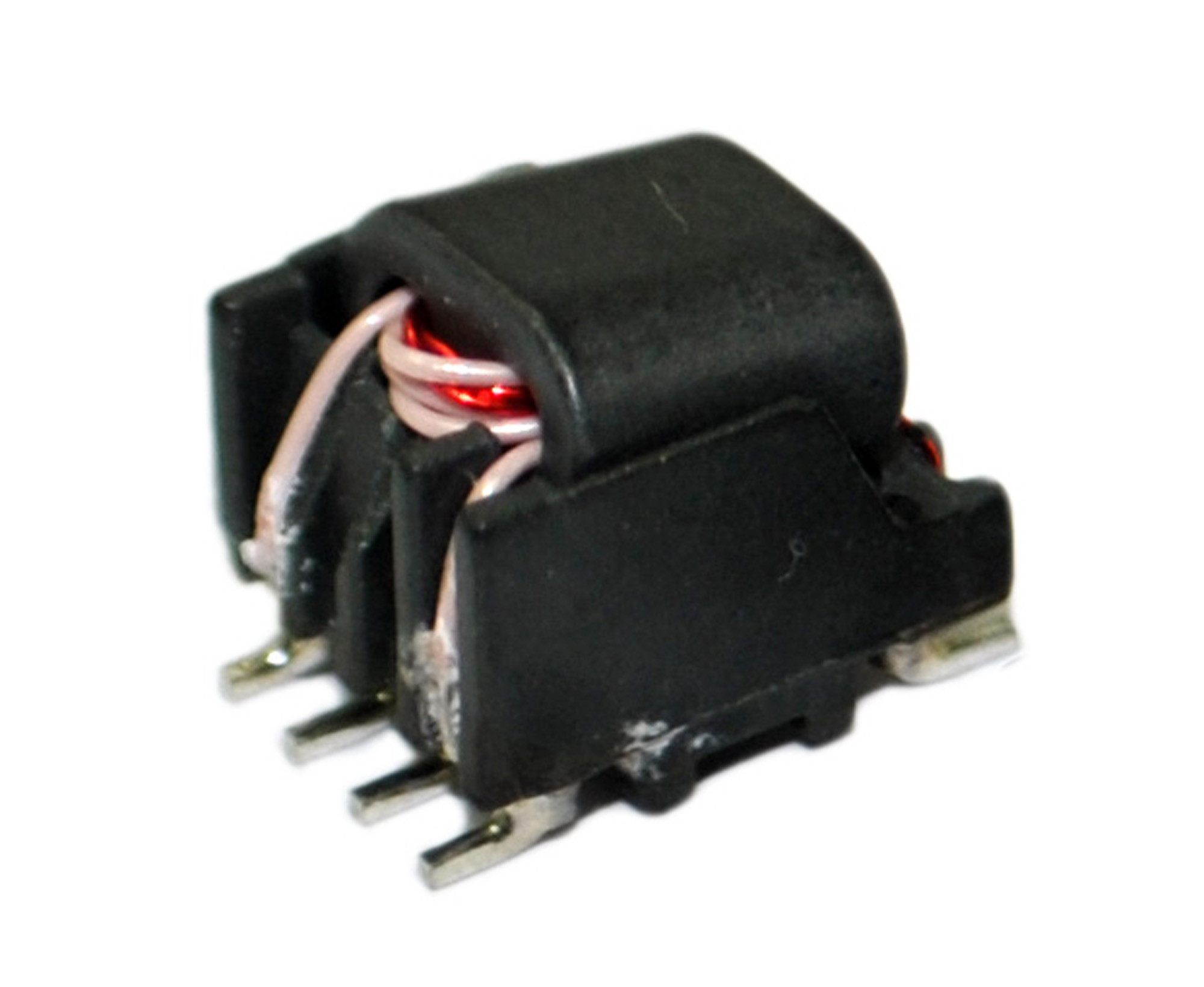

50Ω Characteristic Impedance RF Transformer 0.4 - 500MHz Frequency For Broadband

50Ω Characteristic Impedance RF Transformer 0.4 - 500MHz Frequency For Broadband
50Ω Characteristic Impedance RF Transformer 0.4 - 500MHz Frequency For Broadband 50Ω Characteristic Impedance RF Transformer 0.4 - 500MHz Frequency For Broadband 50Ω Characteristic Impedance RF Transformer 0.4 - 500MHz Frequency For Broadband

Large Image :  50Ω Characteristic Impedance RF Transformer 0.4 - 500MHz Frequency For Broadband Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: RF3S
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Frequency: 0.4-500MHz Characteristic Impedance: 50Ω
Operating Temperature: -40℃ To 85℃ DC Current: 30mA
Ratio: 1:1 Package: REEL AND CARTON
High Light:

rf impedance transformer

,

rf balun transformer

RF Balun Couple Transformer Used for VHF/UHF receivers/transmitters​,50 Ohm Characteristic Impedance,0.5W

Features:

  • 1: 1 Impedance
  • 50Ω Characteristic Impedance
  • RF power: 0.5W
  • Frequency: 0.4 to 500 MHz



Applications:

  • For broadband and wireless communications
  • For VHF/UHF receivers/transmitters and push-pull amplifiers



ELECTRONICAL SPECIFICATIONS(25℃,Z=50Ω)

  • Frequency: 0.4-500MHz
  • Operating temperature: -40℃ to 85℃
  • Storage temperature: -55℃ to 100℃
