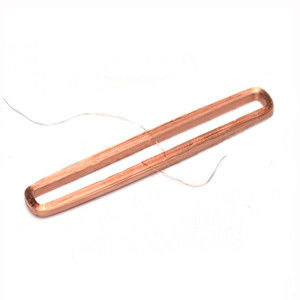

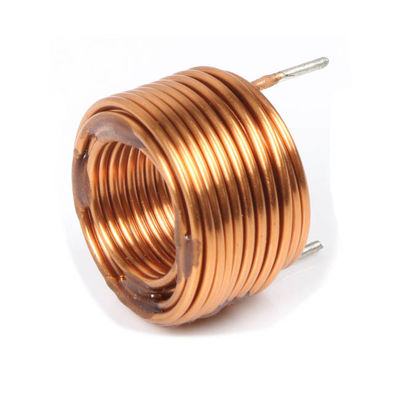

RFID Transponder RFID Coil Antenna Air Core Coil 125KHz Frequency 0.8mm Wire Diameter

RFID Transponder RFID Coil Antenna Air Core Coil 125KHz Frequency 0.8mm Wire Diameter
RFID Transponder RFID Coil Antenna Air Core Coil 125KHz Frequency 0.8mm Wire Diameter RFID Transponder RFID Coil Antenna Air Core Coil 125KHz Frequency 0.8mm Wire Diameter

Large Image :  RFID Transponder RFID Coil Antenna Air Core Coil 125KHz Frequency 0.8mm Wire Diameter Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: AR
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 1000000/MONTH
Detailed Product Description
Size: 22X20mm Inductance: 79uH±10%
DCR: 0.3ΩMax Frequency: 125KHz
Wire Diameter: 0.8mm Type: Air Core / Coreless / Bobbinless Coil / Antenna RFID Coil
High Light:

rfid transponder coil

,

qi wireless charging coil

125KHZ RFID Antenna Air Core Coil , Coreless / Bobbinless Coil Copper Winding Inductor





Electrical specification:

1
Type
coil
2
Wire diameter
0.8mm
3
Inner Diameter
17mm
4
Outer Diameter
22X20mm Max
5
Inductance @120khz/1v
79uH±10%
6
Coil thickness
20mm max
7
DCR 0.3ΩMax
8
Lead wire
10±2mm
9
Solder
5mm
10
Lead time of sample
3-5 working days
11
Lead time of mass production
depend on the quantity
12
Certificate
ISO9001:2015 and ROHS



Features:

  • Winding different shapes as per your inquiry
  • Meet your inquired inductance and resistance
  • Windings are bond by a strong adhesive
  • High Q value and wide inductance range
  • Honeycomb type winding with silk copper wire
  • Multilayer structure
  • Customized specifications are welcome





For More RFID antenna coil, Please Go To Our Website Or Contact Us.
