Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A

Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A
Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A

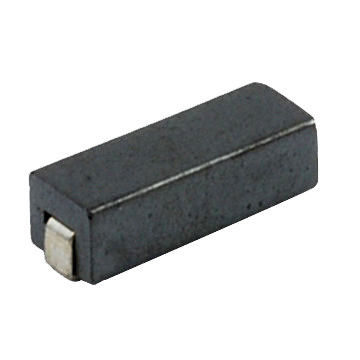

Large Image :  Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A Get Best Price

Product Details:
Place of Origin: China
Brand Name: Shinhom
Certification: RoHS
Model Number: SMB403025-50
Payment & Shipping Terms:
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 4~8 Weeks
Payment Terms: T/T
Supply Ability: 100000/MONTH
Contact Now
Detailed Product Description
Size: 4.6*3.05*3.0mm Turns: 1Ts
Key Word: Ferrite Bead Copper Wire: Flat Wire
Certification: ISO9001 RoHS Operating Temperature: -40℃~+85℃
High Light:

emi suppression beads

,

emi filter bead



Ferrite Bead Inductor,SMD Beads for EMI Suppression,DC Resistance 0.6mOhm max,Rated current 9A





Features:

  • Flat wire, can endure high currents (9 Amps)
  • Surface-mounted on boards



Applications:

  • Computer products (mother boards, hard disks, TV cards and more)
  • Communication products (pagers, cordless phones and more)
  • Modems, OA products, power supplies and more
  • Counter measures for compliance with CE, FCC, VDE or VCCI radiated emissions



Electrical specification :

  • Impedance: 30Ω Typ.@25MHz
  • 50Ω Typ.@100MHz
  • 55Ω Typ.@300MHz
  • DCR: 6mΩ Max
  • Rated current: 9A Max
  • Operating temperature: -40℃ to +125℃



Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A 0 Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A 1



For More EMI Suppression Ferrite Core, Please Go To Our Website Or Contact Us.

Surface Mount Ferrite Bead Inductor DC Resistance 0.6m Ohm Max Rated Current 9A 2
